Injection Machine Bottle Blowing Machine Using Industrial Air Chiller Machine
- Ningbo China
- T/T L/C D/P D/A PayPal
You May Like
Product Details
| Condition | New | Type | Air-Cooled | |
| Place of Origin | Zhejiang, China | Brand Name | XHC | |
| Model Number | XCA-xxS/D | Cooling Capability(kw) | 5.8kw to 145kw | |
| Voltage | 220V/380V | Dimension(L*W*H) | Models | |
| Weight | 120kg to 1300kg | Certification | CE, Other, CE, ISO9001:2000 | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

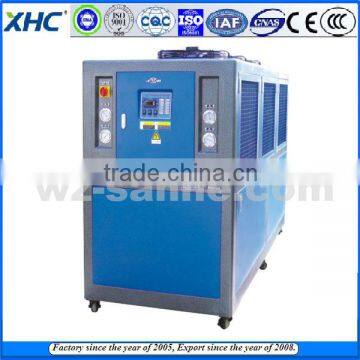

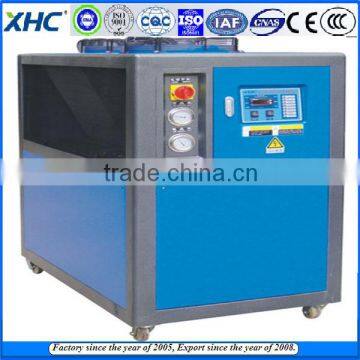

Injection machine bottle blowing machine using Industrial Air chiller machine
I. Instruction of Air chiller :
1.XHC Air Chiller has complete specifications. It has the characteristic of perfect case design, electrostatic plastic spraying shell, European design, beautiful and graceful appearance and easy installation. The condenser use high efficiency internal thread tube with clean water aluminium fins having "V" shape central air conditioner design, high heat transfer well.
2.Compressors adopt the new and famous brand compressors imported from Europe, Japan and United Stated with the feature of environmental protection, energy saving and durability.
3.Easy installation, using without cooling towers and cooling water circulation pumps.
Air cooling medium, not confined by water resources, most suitable for environment and places of poor water quality and lack of water resources.
Condensing Type: air cooled
Application: Injection Molding, Food Industry, Chemical Industry, Central Air-Conditioner,etc
II. Technology parameter of Air chiller :
Models | Cooling | Input | Compressor | Evaporator | Condenser | The machine |
Capacity | Power | Flow water | Cooling air | size | ||
The models below include 1 Compressor | ||||||
XCA-02S | 4988kcal/hr | 2.5kw | 1.9kw | 1.3m3/h | 2270m3/h | 0.8*0.6*0.85m |
XCA-03S | 8428kcal/hr | 3.4kw | 2.9kw | 1.8m3/h | 3400m3/h | 0.95*0.68*1.0m |
XCA-05S | 13,932kcal/hr | 5.7kw | 4.8kw | 2.6m3/h | 4550m3/h | 1.28*0.68*1.2m |
XCA-08S | 21,156kcal/hr | 8.5kw | 7.5kw | 4.2m3/h | 6800m3/h | 1.24*0.73*1.38m |
XCA-10S | 27,090kcal/hr | 11.4kw | 9.8kw | 5.5m3/h | 9600m3/h | 1.5*0.8*1.32m |
XCA-12S | 31,304kcal/hr | 13.3kw | 11.8kw | 6.6m3/h | 9600m3/h | 1.5*0.8*1.35m |
The models below include 2 Compressors | ||||||
XCA-16D | 41,796kcal/hr | 18.1kw | 15.2kw | 7.8m3/h | 13200m3/h | 1.58*0.95*1.46m |
XCA-20D | 53,750kcal/hr | 22.8kw | 19.8kw | 11.2m3/h | 19800m3/h | 2.5*1.0*1.5m |
XCA-25D | 62,264kcal/hr | 26.9kw | 23.8kw | 13.4m3/h | 26000m3/h | 2.5*1.0*1.58m |
XCA-30D | 83,420kcal/hr | 36.5kw | 30.6kw | 16.6m3/h | 265000m3/h | 2.65*1.0*1.58m |
XCA-40D | 107,500kcal/hr | 45.8kw | 39.5kw | 21.2m3/h | 39800m3/h | 2.8*1.15*1.68m |
XCA-50D | 124,700kcal/hr | 53.9kw | 47.2kw | 26.5m3/h | 52000m3/h | 2.8*1.9*1.75m |
Note : | ||||||
1.The details above is based on the following parameter :Evaporator temperature:10 degreeC | ||||||
Condensing temperature:54.4 degreeC | ||||||
2.Main Voltage :3Phase-380V/50HZ ,3Phase-220V/60HZ | ||||||
III.Installation drawing of Air chiller :
IV.Main parts of Air chiller :
Item | Remark | Brand | Brand |
Compressor |
| Copeland | USA |
Computer control |
| Computer control | Sino-foreign joint venture |
Refrigerant | R22 | DUPON | USA |
Electrical equipment |
| ZHENGTAI | China |
Condenser |
| Efficient copper tube set of aluminum finned + low noise outer rotor axial flow fan | SANHE |
Evaporator |
| Coil pipe | SANHE |
Pressure gauge |
| GARHOPE | Sino-US joint venture |
Solenoid valve |
| FENSHEN | Sino-foreign joint venture |
Flow controller |
| Capillary | XHC |
Dry filter |
| SANRONG | Sino-foreign joint venture |
Energy device |
| XHC | SANHE |
Copper pipe |
| HONGTAI | Qingdao ,China |
Steel |
| BAOGANG | Shanghai ,China |
Pressure controller |
| FENSHEN | Sino-foreign joint venture |
Globe valves |
| FENSHEN | Sino-foreign joint venture |
V. Our company Main small Air chillers :

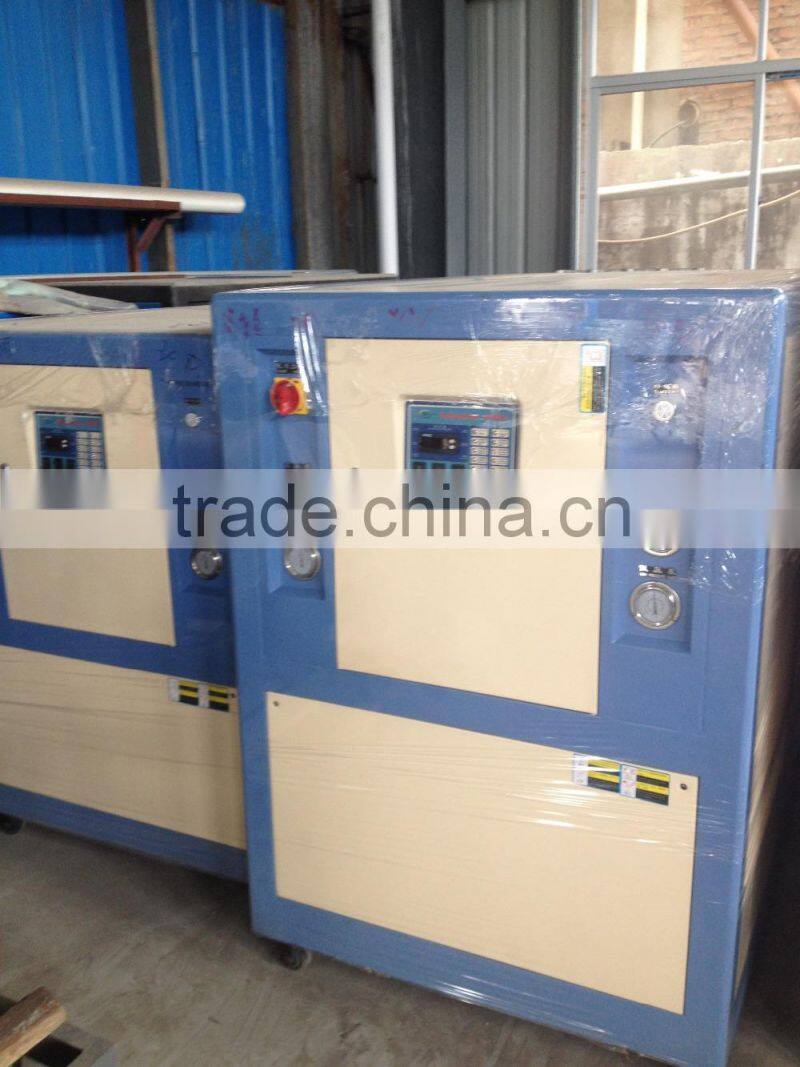

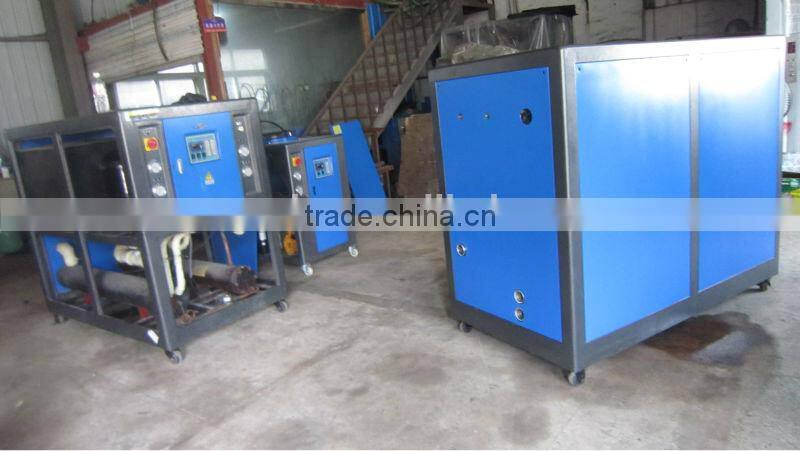

Chillers in our working shop photo
