Bottle Sleeve Labeling Machine / Equipment
- SHANGHAI PORT
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Beverage, Chemical, Food, Medical | |
| Packaging Type | Bottles | Packaging Material | Glass, Metal, Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V | Power | 1.5KW | |
| Brand Name | LINKS | Model Number | SLM-150B | |
| Dimension(L*W*H) | 2100*850*2000MM | Weight | 800KGS | |
| Certification | CE, ISO, SGS | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

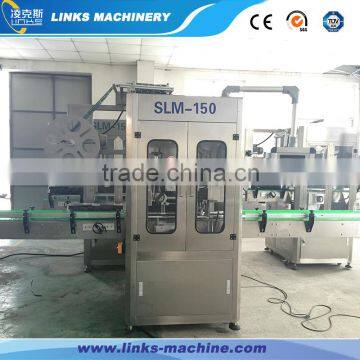

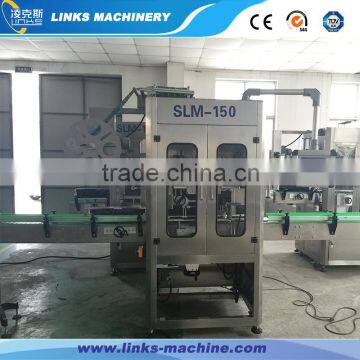

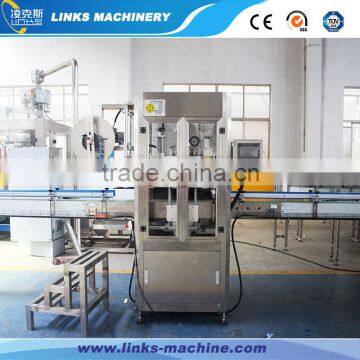

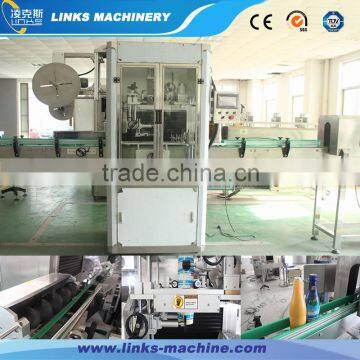

Bottle Sleeve Labeling Machine / Equipment
This SLM Series machine adopts international advanced technology, cover the circle lable on the bottles. And then hot shrinking to fix on the position whcih bottle body designed.
It is controlled by micro-computer, automatic detection and position.
This machine's structure is compact, and suitable for the production line of different direction and different height.
The machineryh parts adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material.
The special cutter head designing make the film-rolling cut more exactly.
Technical Feature
1, the machine is made of stainless steel and high quality of aluminum alloy, the reasonable, intact frame,
2, the feet bolt is not needed, easy to move suitable for different place.
3, the shrinkable film roll with adjustable locking gear, can be adjusted according to different roll 5’-10’
4, the applicable bottle is the machine square bottle and round bottle
5, without tools, the driven machinery can be adjusted to meet different bottle size
6, particular inserting label ways, i.e. inserting label, it is reasonable and convenient.
7, full automatic feeder, the flat shrinking and tension are adjusted together.
8, it is assured to low error that there is inspection of rolling label cut.
9, particular blade design, blade base can be change by free, changing blade quickly and conveniently.
10, it is easy to change the central clamping device without any tools.
11, oriental rolling label device can be lifting synchronal.
12, the separating bottle screw, oriental belt and conveyor are adjusted synchronal.
13, adopting ANCHUAN servo motor made in JAPAN and sensitive photo electricity, to insure the precision of cutting label.
14, stainless steel electric controller, adopting Mitsubishi PLC made in Japan
15, adopting advanced man-machine automatic controlling technology, main component adopts famous brand.
Main Parts Brand
Name |
|
|
PLC | Panasonic | Japan |
HMI | Weiniew | Taiwan |
High-speed fiber-optic sening | SUNX | Japan |
Photoelectric sensor | SUNX | Japan |
Photoelectric sensor | SUNX | Japan |
Photoelectric sensor | SUNX | Japan |
Servo motor for label delivery | Panasonic | Japan |
Servo motor drive for label delivery | Panasonic | Japan |
Cutter head servo motor | Panasonic | Japan |
Cutter head servo motor drive | Panasonic | Japan |
Frequency converter for bottle divider | Panasonic | Japan |
Frequency converter for bottle carring | Panasonic | Japan |
Frequency converter for convery | Panasonic | Japan |
Frequency of material-shelf | Panasonic | Japan |
1. We provide the complete machines' layout, design according to customer's factory.
2. We provide the complete English manual book for customer, all the machines' touch screen operation is English words, we have Russia, Spanish, Portuguese, French..ect to choose.
3. After delivery, we will send our engineer to customers' factory to install the machines and also train workers how to operate and maintenance. Engineer's salary: 80USD/Per day.
4. Our warranty time is 18 months after the machines installation.
5. We provide the 12 months easy broken spare parts as free, and also provide the spare parts book to customer.
6. Payment method: 30% T/T as deposit after signature the contract, 70% T/T or L/C after inspection before delivery.
7 Common delivery time: 45-70days after confirm the bottle and cap design.
