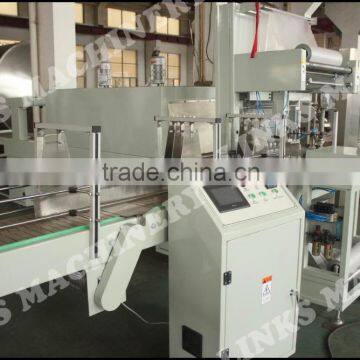

Automatic bottle shrink wrap packing machine
One.Technical parameters
·Equipment type: WD-150
·Outline dimension of the equipment: L5050*W3300*H2200mm
·The largest dimension of the wrap page:L600*W430*H480mm
·Material of shrink film:PE
·Thickness of shrink film:0.03-0.15mm
·The highest temperature of the heat shrink furnace: 160-260.
Can adjust freewill.
·The maximum production per minute:0-12 package
·Equipment capacity: 18Kw
·Actual power consumption:15Kw/hour
·Equipment weight:1.1T
·Machine require air pressure of the compressor:0.6-0.8Mpa
Two.Basic configuration of the equipment:
·Canada maintain: 5.7 inch touch screen, PLC control system.(can choose other brand)
·One set Taiwan Air tac pneumatic element
·Three sets Taiwan Taida transducer
·Twelve pieces stainless and iron pterygoid heating pipe
·Teflon transportation net which are produced by Sino-America cooperation.
·Electrical machine by Shanghai and Beauty cooperation ,warm transmission by Zhejiang Taili.
·Korea Ottonix photoelectric switch,proximity switch.
·We can make Heat sealing sword cast aluminum heat appliance specially,well proportioned temperature and long lived.
·Surface of the whole machine are plastic spraying,frame work adopt excellent carbon steel,the mainstay adopt stainless steel.
·The length of bottle transport machine:2600mm
·Packed with wooden case and winded film separately.
Three.Product description:

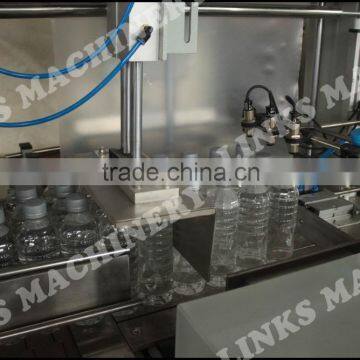

·Frequency control,Secondary bottle transport device.

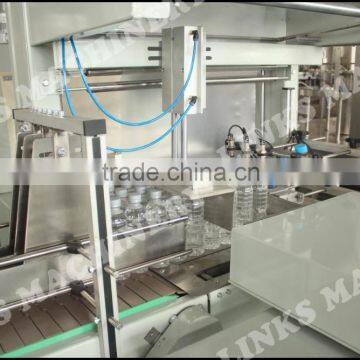

·The whole set which are push bottle,heat sealing cutting adopt pneumatic structure.
·Inductive switch control film length.
·Touch screen,PLC control system advanced reliability of the equipment function.
·Circular wind machine ,resuare well-proportioned temperature of the shrink furnace.
·Strong cooling system can reassure finalize the design quickly.
·Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.
·Frequency conversion timing net transportation structure.
·The height of the conveyer belt can be made according to the user,adustable range±50mm
·Bottle transport machine can satisfy the direction of the user,it can prolong and shorten
·Pterygoid stainless iron heating system,durability.
·Satisfy the bear storage rack device of the short duration for the product,assure consecutive work for the production line.
Wooden Package Standard Export Request
Our facgtory is localed in Zhangjiagang city, which near by the Shanghai Pvt air port.
It is a specialized manufacturer of water purification treatment, water/beverage bottle blow molding machines, water/
beverage filling machines,labeling machines, film wrapping machines.With the support of advanced technique from
Germany and Italy,highly experienced engineers and customer-oriented after sales service.
1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.
3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.
