Rohde & Schwarz FSH-Z2 Power Dividers

Specifications

Rohde & Schwarz FSH-Z2. VSWR bridge and power divider 10 MHz - 3 GHz, 50 Ohm, incl. open, short, load for calibration

Rohde & Schwarz FSH-Z2. VSWR bridge and power divider 10 MHz - 3 GHz, 50 Ohm, incl. open, short, load for calibration

Rohde & Schwarz FSH-Z2 with built-in tracking generator rapidly determines the transmission characteristics of cables, filters, amplifiers, etc, with a minimum of effort. The VRWR can be used with the Rohde & Schwarz FSH3 or FSH6 handheld spectrum analyzer.

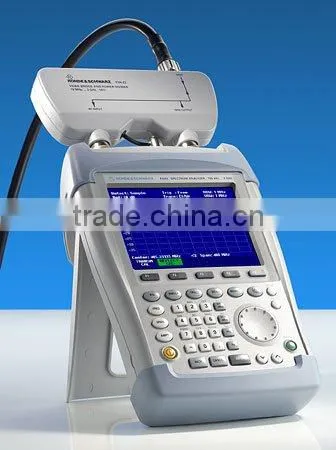

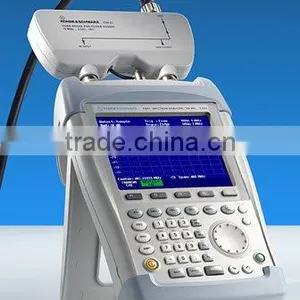

When equipped with the R&S FSH-Z2 VSWR bridge (10 MHz to 3 GHz/6 GHz), the R&SFSH can measure the matching (return loss, reflection coefficient, or VSWR) of an antenna, for example. The bridge is screwconnected directly to the Rohde & Schwarz FSH's RF input and tracking generator output without involving cumbersome, extra cabling.
