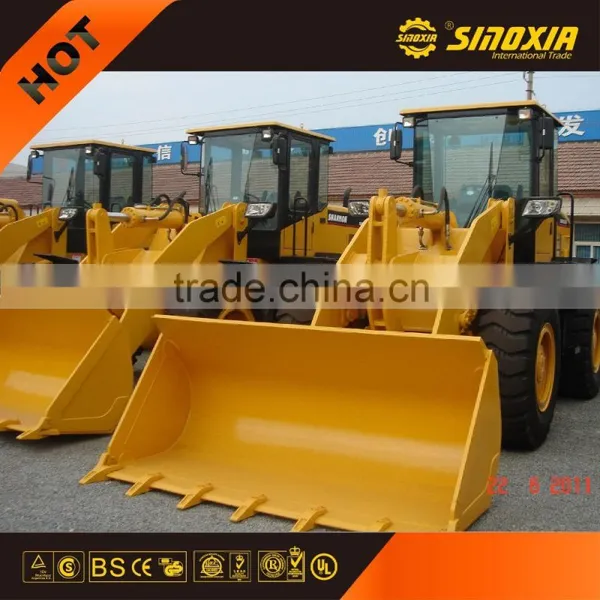

Wheel Loader SAM836B From China Supplier 1.7cbm Bucket

Name: Wheel Loader SAM836B From China Supplier 1.7cbm Bucket
Brand: SHANMON
SKU: 105786089
Availability: InStock

US$ 10,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

SHANMON

Model Number:

SAM835A

Linyi Sinoxia International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name SHANMON

Model Number SAM835A

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 6890*2430*3070mm

Rated Load 3000kg

Certification ISO9001

Warranty 1 Year

After-sales Service Provided No overseas service provided

		Model	SAM836B
Performance	1	Rated load	3000KG
	2	overall weight	9600KG
	3	rated bucket capacity	1.7 m3
	3	maximum tractive force	97KN
	4	maximum breakout force	127KN
	5	overall dimension (L×W×H)	6890×2430×3070mm
	6	maximum grade ability	30^o
	7	maximum dump height	3100mm
	8	maximum dump reach	1006mm
	9	minimum turning radius	5097mm
Engine	11	model	YC6B125-T20 or WP6G125E22
	12	type	lnline water cooling 4 stroke
	13	No. of cylinder-bore/stroke	6-108×125mm
	14	rated power	92kw
	15	maximum torque	500N.m
	16	min fuel-consume ratio	≤210g/kw.h
Transmission system	17	torque converter	YJ315-X
	18	gearbox mode	Power shift
	19	gear shift	4 forward shift and 2 reverse shift
	20	maximum speed	40km/h
Drive axles	21	main reducing spiral	bevel gear grade 1reduction
	22	decelerating mode	planetary reduction,grade 1
	23	wheel base	2660 mm
	24	wheel tread	1800 mm
	25	minimum ground clearance	400 mm
Hydraulic system	26	system working pressure	16.5MPa
	27	boom lifting time	4.83
	28	total time	9.15+0.5s
	29	fuel tank capacity	156L
	30	function of leveling automatically	Yes
Brake system	31	service brake	air over hydraulic disc brake on 4 wheels
Brake system	32	parking brake	manual parking brake
Tyre	33	type specification	17.5-25
	34	front tyre pressure	0.4Mpa
	35	rear tyre pressure	0.35Mpa
