Anti-UV semiconducting adhesive tape
Is there any product that you need?
Is it really can be customized as per your requirement?
How to get personalized service?
Let’s find answers...
Accurate specifications ensure that we provide professional products
Type 1:
| Backing material |
Polyester film reinforced with glass filaments |
| Backing thickness | 0.120mm |
| Total thickness | 0.180mm |
| Adhesive type | acrylic |
| Color | translucent |
| Adhesion to steel | 13.7 N/25mm |
| Tensile strength | 931 N/25mm |
| Elongation at break | 19% |
| Breakdown voltage in air | 6.5kvrms |
| Thermal class | 155 |
| Curing cycles | 3 hours at 120°C or 2 hours at 130°C |
| Shelf life | Can be stored at room temperature for at least 12 months |
Excellent adhesion to aramid insulation
Type 2:
Kraft paper reinforces with glass filaments
| Backing material | Cellulose film reinforced with glass filaments |
| Backing thickness | 0.120mm |
| Total thickness | 0.230mm |
| Adhesive type | White |
| Color | Translucent |
| Adhesion to steel | 11.3 N/25mm |
| Tensile strength | 500 N/25mm |
| Elongation at break | 3% |
| Breakdown voltage in air | 1.0kvrms |
| Thermal class | 130 |
| Curing cycles | 3 hours at 120°C or 2 hours at 130°C |
| Shelf life | Can be stored at room temperature for at least 12 months |
Excellent adhesion to all materials used in the winding production
Next let us see more details

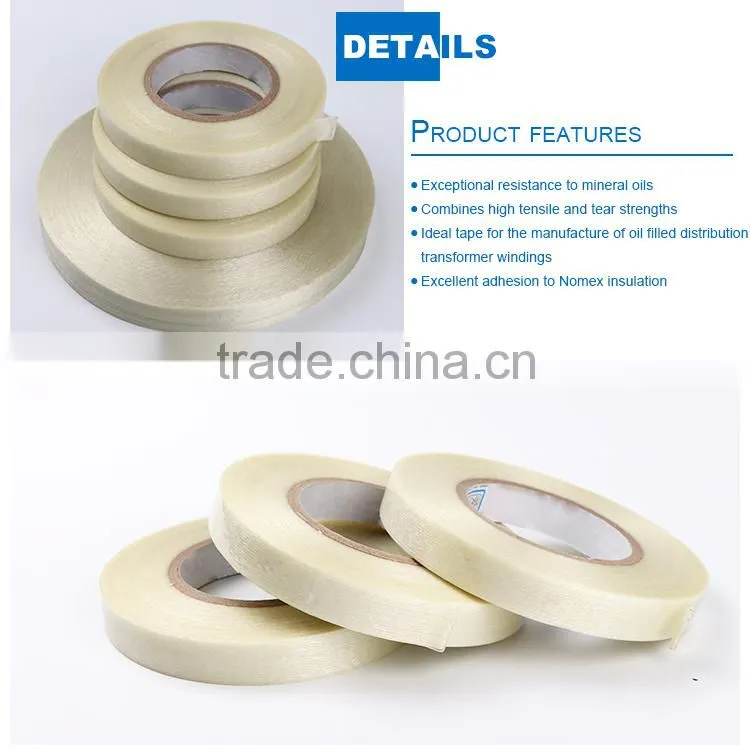

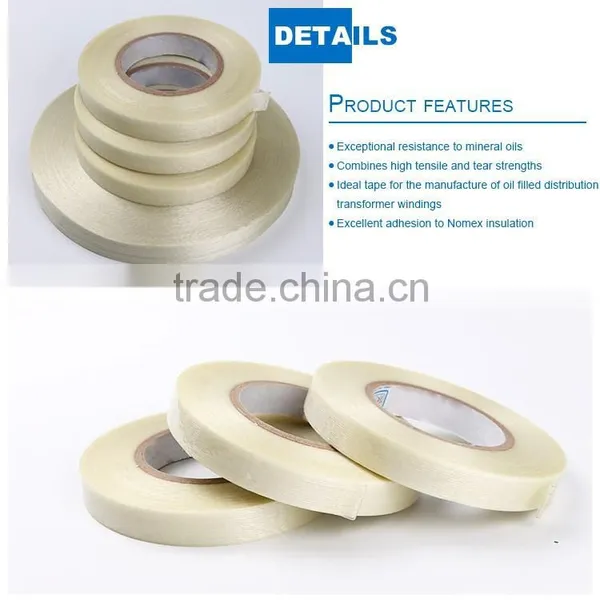

Product description of semiconducting adhesive tape
Adhesive Tapes are used for Oil Filled Distribution Transformers
Where can we use the product?
Product application will make us a direct impression.
Product Application of semiconducting adhesive tape
What about the product line ?
How to ensure the quality ?
Do you want to know more details?
Go on....
From raw materials to finished products, every process is tested and controlled professionally and seriously by our professional machines and person.
How to send an effective inquiry for saving your time?
1.Response to your inquiries and questions within 24hours.
2.Existing samples provided on free,only charge the freight.
3.High quality products and competitive offer
4.On-time delivery date
