Insulation Woven Cotton Tape for Transformers Winding
Negotiable
MOQ: 2000 Rolls (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
powerwell
Model Number:
insulation woven tape
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
China
Brand Name
powerwell
Model Number
insulation woven tape
Type
Insulation Tape
Material
Other, cotton
Application
High Voltage
Rated Voltage
as below
Tensile Strength
good

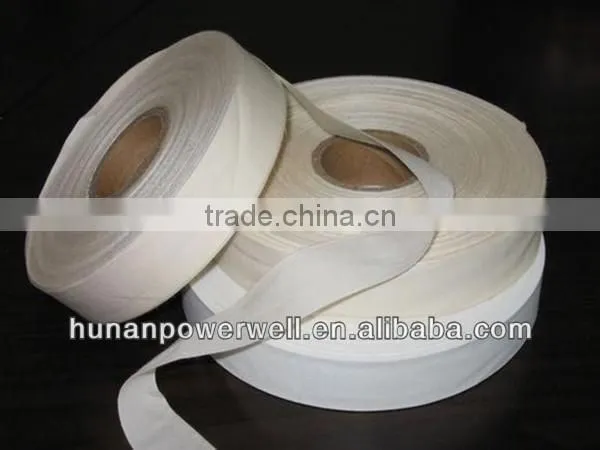

Insulation woven cotton tape for transformers winding
Description
Cotton tape is made from pure cotton fiber.
Features
Excellent mechanical strength
Good electrical insulation properties
Applications
It widely used in transformer, motor and electrical appliance as binding material
Available
The standard size is 0.13mm x 25mm x 25m/roll
Any special size is available on customers request
Technical Data
Property |
Unit |
Standard |
Thickness 0.18mm |
mm |
0.18±0.005 |
Width 25mm |
mm |
25±1.0 |
Length 25m |
m |
25±0.10 |
|
Warp Weft |
Tex |
32X2 21X1 |
Surface Resistivity |
Ohms |
>1.5X1011 |
Volume Resistivity |
Ohms |
>5.5X107 |
Breakdown Voltage at Power Frequency |
MV/mm |
>1.2 |
Tensile strength |
N/10mm width |
>200 |
Temperature Resistance |
‘C |
>120 |
This technical date is for size 0.18mm X 25mm X 25m/roll
