Anti-UV 3240 cheap insulation materials,cheap heat insulation materials
Is there any product that you need?
Is it really can be customized as per your requirement?
How to get personalized service?
Let’s find answers...
cheap insulation materials,cheap heat insulation material,cheap insulation materials,cheap heat insulation material
Accurate specifications ensure that we provide professional products
| ITEM | UNIT | VALUE | |
| 3240 | 3240-1 | ||
| Density | g/cm3 | 1.70~1.90 | 1.70~1.95 |
| Martens heat resistance (LW)≥ | ℃ | 200 | 200 |
| Flexural strength≥ | MPa | — | — |
| Perpendicular to lamination | 400 | 360 | |
| parallel to lamination | 300 | 270 | |
| Tensile strength≥ | MPa | — | — |
| Perpendicular to lamination | 350 | 320 | |
| parallel to lamination | 250 | 230 | |
| Adhesion force≥ | N | 5680 | 5600 |
| Impact strength≥ | kJ/m2 | — | — |
| Perpendicular to lamination | 150 | 130 | |
| parallel to lamination | 100 | 120 | |
| Surface resistivity≥ | Ω | — | — |
| Under normal condition | 1×1013 | — | |
| After impregnated in water | 1×1011 | — | |
| Volume resistivity≥ | Ω.cm | — | — |
| Under normal condition | 1×1013 | — | |
| After impregnated in water | 1×1011 | — | |
| Insulation resistance parallel to lamination≥ | Ω | — | — |
| Under normal condition | 1×1010 | — | |
| After impregnated in water | 1×108 | — | |
| Loss tangent, 50Hz≤ | — | 0.05 | — |
| Pressing strength≥ | MPa | — | — |
| Perpendicular to lamination | 250 | — | |
| Parallel to lamination | 150 | — | |
| Voltage breakdown perpendicular to lamination in transformer oil at 90±2℃≥ | kV/mm | — | — |
| — | — | — | |
| Thickness:0.5~1mm | 22 | — | |
| Thickness:1.1~2mm | 20 | — | |
| Thickness:2.1~3mm | 18 | 15 | |
| Voltage breakdown parallel to lamination in transformer oil at 90±2℃≥ | kV | 30 | 28 |
| Area of the sheets | mm | 980×1980,1020×2040 | |
Next let us see more details
cheap insulation materials,cheap heat insulation material,cheap insulation materials,cheap heat insulation material
cheap heat insulation material,cheap insulation materials,cheap heat insulation material,cheap insulation materials

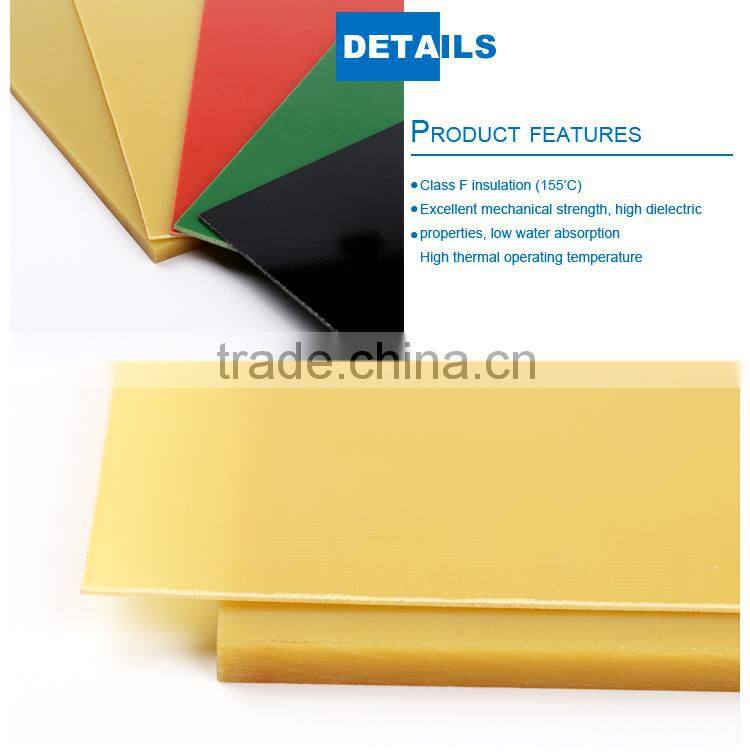

Product description of cheap insulation materials 3240
Epoxy phenolic glass cloth laminated sheet is made of alkali-free E-glass cloth impregnated with epoxy resins and phenolic resins by processing under heat and pressure.
This product having high mechanical and dielectric properties, fine heat and humidity resistance,can be used in electrical machine and devices as insulating construction parts in moist circumstances and in transformer oil
3240 Epoxy Phenolic Glass Fabric Laminated Sheet possess high mechanical and electrical properties, can be applied to motors, generators and electrical appliances as insulating structure parts as well as,used in transformer oil and humid environment.
Where can we use the product?
Product application will make us a direct impression.
Product Application of cheap insulation materials 3240
As insulating structure parts for different electrical machines and appliances.
Used in transformer oil and other humid environment.
