Accurate specifications ensure that we provide professional products
| No. | Item | Unit | 5660-S1 | 5660-S3 | Test Procedure |
| / | mica paper | / | muscovite | phlogopite | / |
| 1 | Mica content | % | ca.90 | ca.90 | IEC 371-2 |
| 2 | Bond content | % | ca.10 | ca.10 | IEC 371-2 |
| 3 | Density | g/cm2 | c a.1.9 | c a.1.9 | IEC 371-2 |
| 4 | Heat Resistant | / | / | / | |
| continuous services | ℃ | 500 | 700 | / | |
| intermittent services | ℃ | 800 | 1000 | / | |
| 5 | Heat loss at 500 ℃ | % | <1 | <1 | IEC 371-2 |
| Heat loss at 700 ℃ | % | <2 | <2 | IEC 371-2 | |
| 6 | Water absorption | % | <1 | <1 | GB/T5019 |
| 7 | Dielectric strength | KV/mm | >20 | >20 | IEC 243 |
| 8 | Flame Resistance | / | 94V0 | 94V0 | UL94 |
Note: There specifications are typical performance data for polyester film.They are not intended to be used as design data.
Next let us see more details

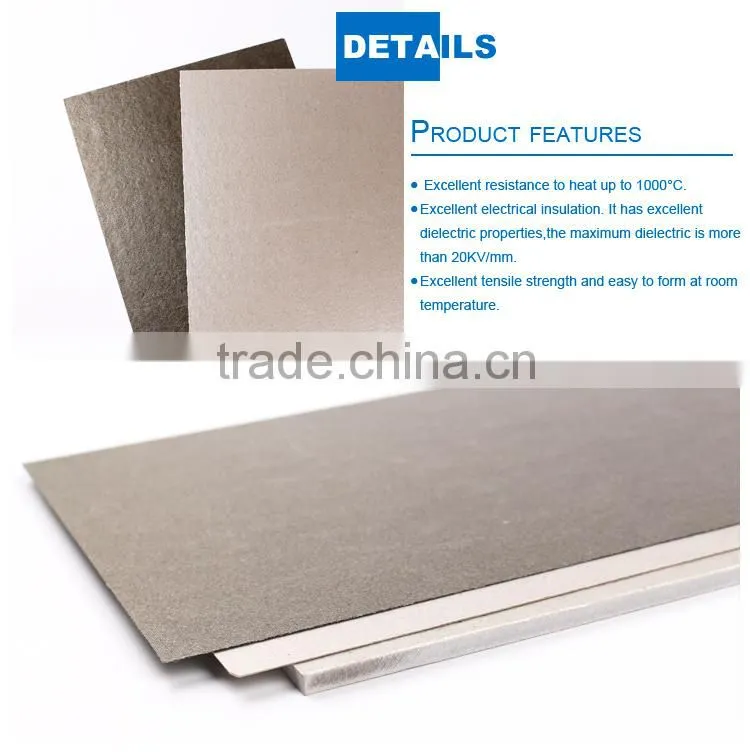

Product description of Flexible Mica Plate
Flexible Mica Plate is a good heat resistant insulating material, which retains its permanent flexibility at room temperature . The product consists of approximately 90 % Muscovite(or Phlogopite) and 10% high temperature resistant silicone resin.
Flexible Mica Plate has acquired UL94V-0 approval with the file No.E231452, TUV approval on environmental safe(the file No. Z05811263 ), SGS-RoHS approval with the file No. SH6148278/CHEM, and has been authorized for use in contact with food products(certificate from the FDA with the file No.RJSSZ060586FDA).
Flexible Mica Plate has two species:
1: Muscovite Flexible Mica Plate , Silver color, Heat resistance: 500 ℃ / 932 °F(In constant operation), 750 ℃ / 1382 °F (in intermittent operation) .
2:Phlogopite Flexible Mica Plate , Golden/Amber color, Heat resistance: 750 ℃ / 1382 °F(In constant operation), 1000 ℃ / 1832°F (in intermittent operation) .
Where can we use the product?
Product application will make us a direct impression.
Product Application of Flexible Mica Plate
What about the product line ?
How to ensure the quality ?
Do you want to know more details?
Go on....
From raw materials to finished products, every process is tested and controlled professionally and seriously by our professional machines and person.
How to send an effective inquiry for saving your time?
1.Response to your inquiries and questions within 24hours.
2.Existing samples provided on free,only charge the freight.
3.High quality products and competitive offer.
4.On-time delivery date.
