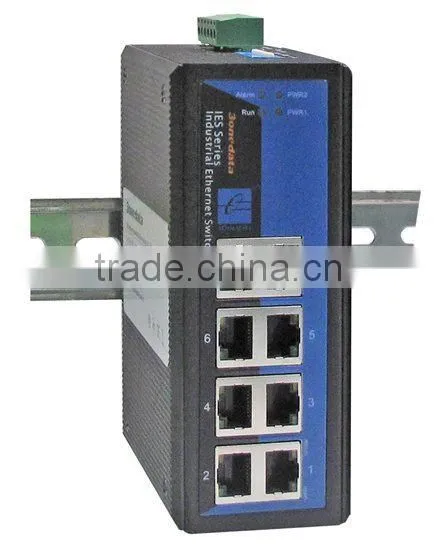

8-port 10/100M WEB Managed Redundant Industrial Ethernet Switch(IES608)

8-port 10/100M WEB Managed Redundant Industrial Ethernet Switch(IES608) thumbnail-1
8-port 10/100M WEB Managed Redundant Industrial Ethernet Switch(IES608) photo-1
US$ 1 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≤ 8
Transmission Rate:
10/100Mbps
Contact Supplier Request Quote Chat Now
Shenzhen 3onedata Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, ≤ 8
Transmission Rate 10/100Mbps
Function QoS, SNMP, VLAN Support
Communication Mode Other, Full-Duplex & Half-Duplex
Certification CE FCC RoHS
Brand Name 3onedata
Model Number IES608
Place of Origin Guangdong, China

Specifications

Industrial Ethernet Switches;Network Switches;Switch

Features

1. Store and forward.8k address. Support MAC address filtrate struction

2. SW-Ring(recovery time < 20 ms at full load)

3. Port-based VLAN, IEEE 802.1Q VLAN to ease network planning

4. Port Trunking for optimum bandwidth utilization

5. Lock port function for blocking unauthorized access based on MAC address

6. Port mirroring for online debugging

7. Bandwidth management prevents unpredictable network status

8. Dual power backup, Relay output warning for power failure and port break alarm

9. Port link, ring fault/abnormity alarm indication

10. IP 30 protection, rugged high-strength metal case

11. Redundant 24VDC power input(12V~48VDC)Operating

12. DIN-Rail or panel mounting ability



Introduction



IES608 series are a type of plug-and-play industrial managed redundant Ethernet switch, which supports 8 10/100Base-T(x). The 7 and 8 ports are used to establish SW-Ring for the purpose accomplishing redundancy for Ethernet ring network (self-recovery time <20ms) to enhance the reliability of the network.

   Furthermore, IES608 series can also support numerous intelligent

network management functions, including QoS, VLAN, Port Trunking, velocity configuration and alarm enabling functions. To satisfy applications in different industrial environments, IES608 series can also provide wide temperature type in accommodation with limit temperature (-40 ~ 75°C).



Specification



Interface

RJ45 Ports: 10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection

DOWNLOAD PROGRAM Port: Based serial network management (RS-232), RJ45

Alarm output interface: One relay alarm output. Support  power, port link and ring network alarm .

Indicator: Port link, ring fault/abnormity alarm indication 10M/100M Rate, run indication

Technology

Standards: IEEE802.3, IEEE802.3x, IEEE802.3u, IEEE802.1Q, IEEE802.1D, IEEE802.1W

Transmit Rate: 148810pps

Max Rate of Filtrate: 148810pps

Processing Type: Store and Forward

System exchange bandwidth: 4.8G

Support 8K MAC address

Port-Based VLAN

Relay

Max voltage: DC30V

Max current input: 1A

Power

Input Voltage: 24VDC (12VDC~48VDC)

Overload Current Protection

Support dual power backup

Support dual power alarm input

Mechanical

Dimensions: 136mm×52mm×105mm (H×W×D)

Casing: IP30 protection, metal case

Weight: 800g

Environmental

Operating Temperature: -40 to 75°C

Storage Temperature: -45°C to 85°C

Ambient Relative Humidity: 10 to 95% (non-condensing)

Approvals

EMI:FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2(ESD), Level 4

EN61000-4-3(RS), Level 4

EN61000-4-4(EFT), Level 4

EN61000-4-5 (Surge), Level 4

EN61000-4-6 (CS), Level 4

EN61000-4-8,100A/m

EN61000-4-12

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Warranty: 5 years

Approvals: FCC, CE, RoHS approvals






Packing List

1. Ethernet switch IES608 series (plus terminal block)×1

2. Hardware Installation Guide ×1

3. CD-ROM with Windows Utility ×1

4. Product Warranty Statement ×1

5. RJ45 to DB9 Console port cable ×1

6. DIN-Rail setting fittings(wall mounting for optional)
