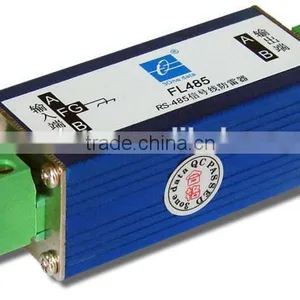

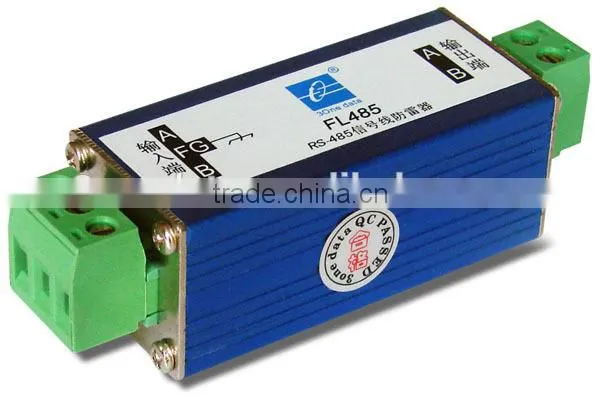

RS485 Isolation Converter

RS485 Isolation Converter thumbnail-1
RS485 Isolation Converter photo-1
US$ 1 - 15 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
3onedata
Model Number:
FL485
Contact Supplier Request Quote Chat Now
Shenzhen 3onedata Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name 3onedata
Model Number FL485

Specifications

RS485 isolation converter;
Easy to install,plug-and-play;
4500V surge protection;
Working temperature -20~60.

RS-485 Surge Protector



Features





1. Three stages of protection on every data line



2. Protected signal ground connection



3. Easy to install, plug-and-play



4. 4500V surge protection



Introduction



IEC61000-4-5 and ITU-TK20&K21 are the recognized standards for top quality surge protectors, FL485 have high respond speed, low output rudimental voltage, ascendance transfer performance. All have #10 ground screws which must be connected to a solid ground.



Specification



Standard: Accord EIA RS-485 standard

RS485 signal: IEC6100-4-5 and ITU-TK20&21

Working voltage: 0-5V

Limit voltage: <15V

Apply Band rate: 1Mbps

Isolate signal: TXD, RXD, GND

Connector: Standard industrial terminal block

Insert consumption: <0.5dB

Delay time: <1ns



Environment



Working temperature:-20~60

Storage temperature:-25~85

Humidity:Relative humidity 5% to 95%



Power



Input powered:No power supply needed

Consumption:No consumption



Dimention



L×W×H: 74mm×25mm×25mm

Shell: Alnico

Color: Blue

Weight:10g

Warranty: 5 years

Approvals: FCC,CE, RoHS approvals



Packing List





1. RS-485 Surge Protector FL485×1



2. User manual ×1
