electrical insulating material/ insulation sheet , PFA electronic insulation material

Description

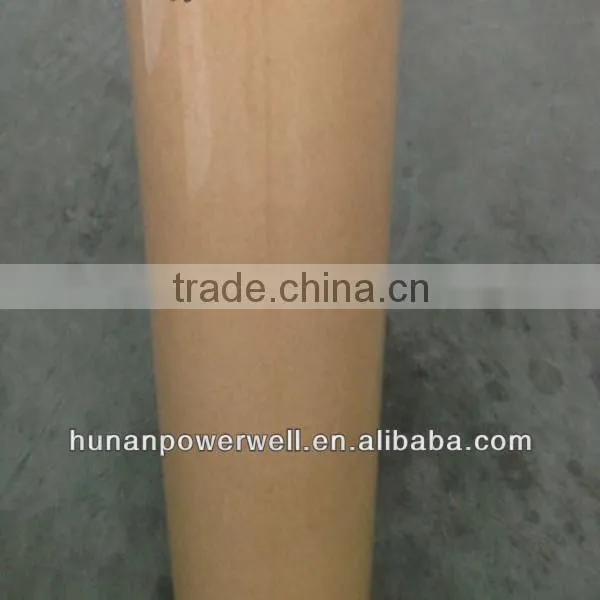

6520 Polyester Film/Fish Paper Composite is a two layers of flexible laminate in which electrical grade polyester film is bonded with presspaper by special adhesive glue.



Features

•Insulation class B (130°C)

•Good dielectric properties and mechanical strength



Applications

Especially suited as slot insulation, slot closure and inter-phase insulation in motors



Technical Data

Product Name Properties Value
6520-28  Thickness(mm) 0.15 0.17 0.2 0.22 0.25 0.27
Tolerance(mm) ±0.020  ±0.020  ±0.030  ±0.030  ±0.030  ±0.030
Breakdown Voltage(kv) ≥6  ≥6  ≥6  ≥6  ≥6  ≥6
Test method IEC-626
Colour Brown, Blue, Gray and Green



Product Name Properties Value
6520-36  Thickness(mm) 0.15 0.17 0.2 0.22 0.25 0.27
Tolerance(mm) ±0.020  ±0.020  ±0.030  ±0.030  ±0.030  ±0.030
Breakdown Voltage(kv) ≥7  ≥7  ≥7  ≥7  ≥7  ≥7
Test method IEC-626
Colour Brown, Blue, Gray and Green



Product Name Properties Value
6520-50  Thickness(mm) 0.15 0.17 0.2 0.22 0.25 0.27
Tolerance(mm) ±0.020  ±0.020  ±0.030  ±0.030  ±0.030  ±0.030
Breakdown Voltage(kv) ≥8 ≥8  ≥8  ≥8 ≥8 ≥8
Test method IEC-626
Colour Brown, Blue, Gray and Green



electrical insulating material/ insulation sheet , PFA electronic insulation material

Special thicknesses or sizes on request

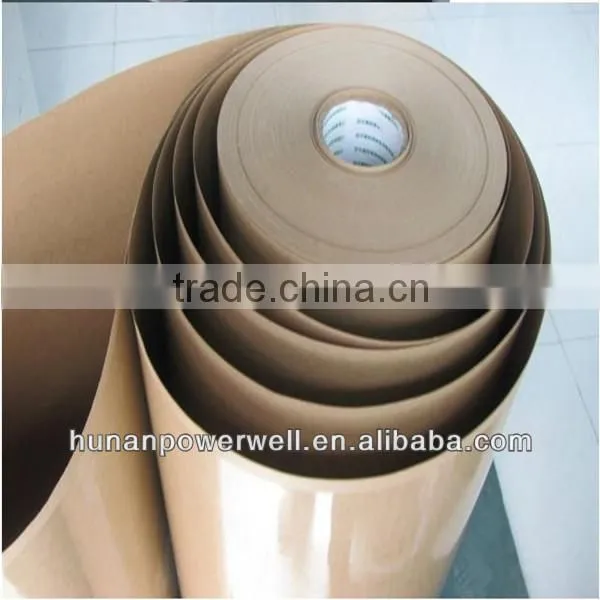

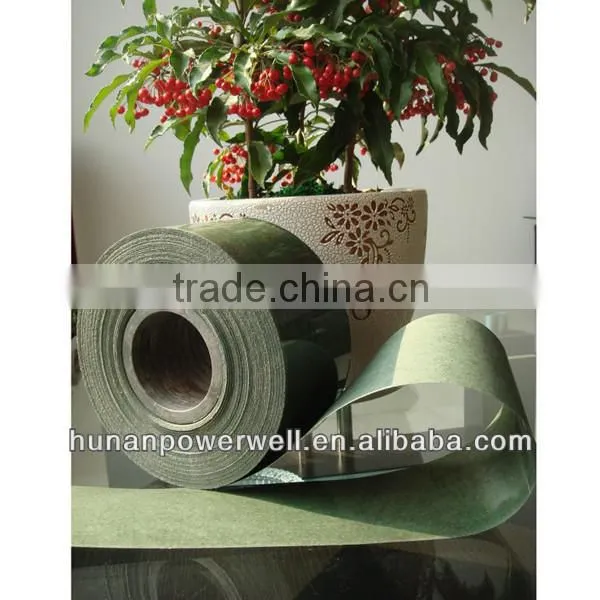

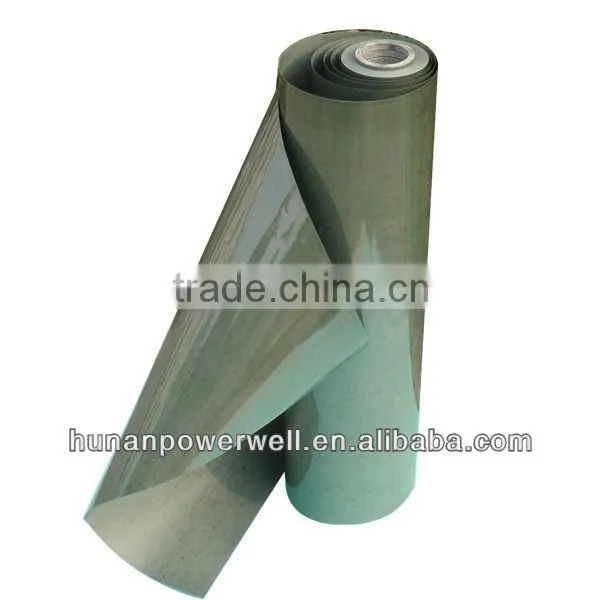

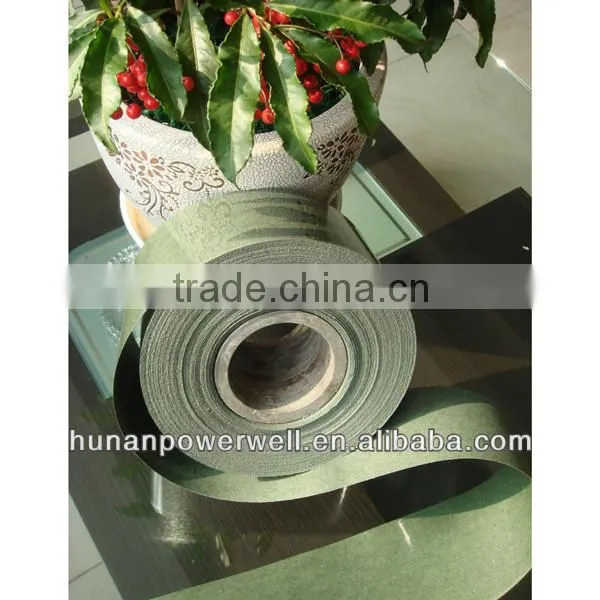

Products in rolls, sheets, tapes are available on request
