Home > Products > Fiberglass Products > 1.5KV PVC resin coated insulation sleeve 2715

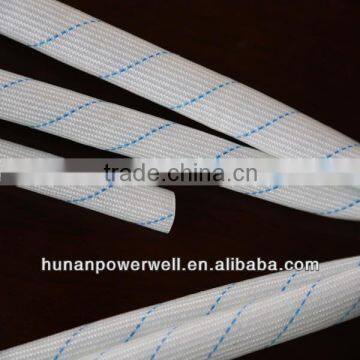

1.5KV PVC resin coated insulation sleeve 2715
- 100 Kilometer / Kilometers per Month
- any port of china
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | powerwell | |
| Model Number | 2715 | Type | Insulation Sleeving | |
| Material | PVC | Application | High Voltage | |
| Rated Voltage | 1.5-4.0Kv |
Product Description
Specifications
1.Good flexibility2.Excellent abrasion and cut-through resistance
715 (VG201) FIBERGLASS SLEEVING COATED
WITH POLYVINYL CHLORIDE RESIN
Description
This product consists of a fiberglass braid with an electrical grade polyvinyl chloride resin coating specially formulated for exceptional heat resistance and stability.
Features
•-20°C to 130°C (class B) operating temperature range.
•Good flexibility
•Excellent abrasion & cut-through resistance
Applications
wiring insulation for Grade B electrical machinery, wireless sets and domestic electric appliances.
Available Sizes
In continuous spooled lengths or cut lengths in 1000mm per piece
Colors
Black, yellow, white and natural. Other colors may be available on request
Technical Data
Inner Diameter and Wall Thickness (Table 1)(mm)
| Inner Diameter Wall Thickness | |||
| Size | Tolerance | Minimum | Maximum |
| 1-3 | ±0.20 | 0.2 | 0.6 |
| 4-9 | ±0.30 | 0.3 | 0.7 |
| 10-16 | ±0.50 | 0.5 | 0.8 |
| Property | Requirements | |||
| Bending after heating | No cracking or detachment of coating shall be visible after bending around mandrels after 72 hours at 100C | |||
| Bending at low temperature | No cracking or detachment of coating shall be visible after bending around mandrels while at - 25C | |||
| Proof voltage (kv) straight or mandrel with 25 mm electrode | ||||
| Central value | Room temp | Elevated temp | Damp heat | |
| Lowest individual value | 4 | 12 | 12 | |
| 2.5 | 0.8 | 0.8 | ||
