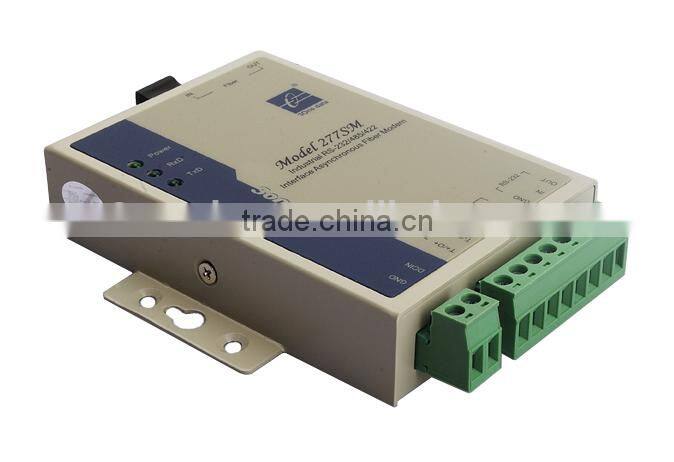

RS232 Fiber Optic Converter

Feature

1) Extend RS-232/485/422 transmission up to 120Km with single-mode;

2) Transmit asynchronously, point to point, speed reach 500Kbps;

3) Examine signal speed automatically, zero delay time;

4) Plug-and-Play(hot-pluggable, data format auto-sensing & self-adjusting);

5) Support RS-232/485/422 interface type, but only one RS-232/ RS-485/ RS-422 port can be connected at a given time;

6)9~36VDC power supply input(2 bit terminal block).

Introduction

Model277 is one kind can offer RS-232/485/422 serial port carry transparent optic fiber modem of transmission to get end to user, no need patch cords set up, switch over automatically, and can detect and examine the signal speed automatically, zero delays time to transmit automatically.  Model277 adopt optic fiber transmit, have isolate protection, data privacy is fine, working steady, data, such threats to communication equipment as the wave is welled up and interfered with electromagnetically that the effective one has prevented the abominable environment from being struck by lightning, can work in the abominable and dangerous environment reliably.

        Can be used in occasions such as various industrial control, course controlling, traffic controlling and intellectual district , especially suit the bank, electricity and  interfering with environment department and system with the special requirement electromagnetically.

Specification

Serial Port

Standards                                EIA RS-232C, RS-485, RS422 standard

RS-232 signal                        OUT(TX), IN(RX), GND

RS-422 signal                        T+, T-, R+, R-, GND

RS-485 signal                        D+, D-, GND

Working mode                        Asynchronism, point to point or multi point, 2 wire half-duplex,4 wire full duplex

Baud rate                                 0~115.2Kbps, auto test serial signal rate detect signal speed automatically, zero delay time

Transfer distance                   RS-485/422 side:1.2Km(9600bps)

                                                   RS-232 side:no less than 5m

Max number of drops            128 nodes(RS-485/422)

Port protect                              600W surge protection

                                                  15KV ESD protection

Optic Fiber Port

Connectors                         SC, FC or ST, optional

Fiber optic cables              Single Mode:8.3/125,8.7/125,9/125 or 10/125 um

                                              Muti-Mode:50/125,62.5/125 or 100/125 um

Transmission                    20, 40,60,80,100, 120km(SM),2km(MM) optional

Wavelength                        850nm,1310nm,1550nm

Power

Power input                9~36VDC power input(2 bit terminal block)

Consumption            120mA

Environmental

Operating Temperature              -10 ~60°C

Storage Temperature                 -40~85 °C

Humidity                                        5% to 95%(no condensation)

Appearance

Dimensions(L×W×H)        100.0mm×69.0mm×22.0mm

Material                                 Iron (Shell)

Color                                     White

Weight                                  230g

Warranty time:                  5 years

Certification                       CE,FCC, RoHS

Ordering Information

Model277-M              RS-232/485/422 to optic fiber, multi-mode 2km, 9-36VDC, SC/ST optional

Model277-S              RS-232/485/422 to optic fiber, single-mode 20km, 9-36VDC, SC/ST optional

Model277-SS           RS-232/485/422 to optic fiber, single-mode, single fiber 20km, 9-36VDC, SC/ST optional

Packing List

1) 3onedata Serial to Optic Fiber Converter Model277 series(plus terminal block)×1

2) User manual ×1

3)DIN-Rail fittings,optional
