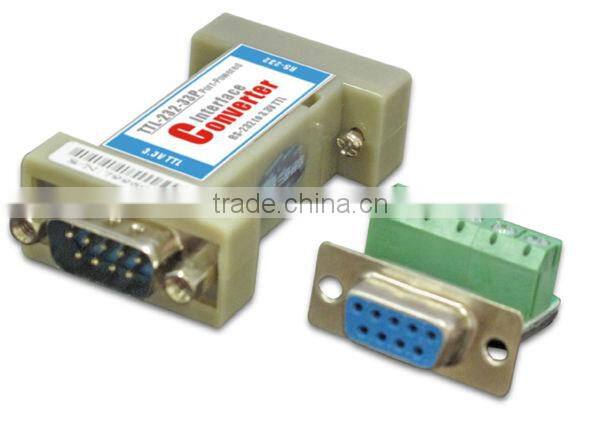

RS232 to 3.3V TTL Serial Converter(TTL-232-33P)

Features

1)Port Powered: no external power is necessary;

2)Data Direction, auto-turnaround, no flow control is necessary;

3) Plug-and-Play (Device is hot-pluggable);

4) Built-in surge protection, static protection and circuit protection.

Introduction

The 3onedata TTL-232-33P is a bi-directional port powered RS-232 to 3.3V TTL converter in a 9 pin format. It can convert any standard full duplex RS-232C port to a 3.3V TTL signal and vice versa. The unit is powered from the RS-232 data lines. It also supports data direction auto-turnaround. Therefore, no external power or flow control is required. The data direction auto-turnaround automatically enables the TTL driver when data is present on the RS-232 side making the device plug-and-play, requiring no software drivers. The TTL-232-33P has a DB9 female connector on the RS-232 side and either a DB9 male connector or 5-way terminal block on the TTL side. Separate terminal block is included in package.

Specification

Parameter

Standards                          EIA RS-232C

RS-232 signal                  TX, RX, GND

TTL signal                          IN, OUT, GND

Baud rate                           300~115200bps

Transfer distance             3.3V TTL side:3m

                                             RS-232 side: no less than 5m

Connectors                        RS-232 Side: DB9 Female and

                                             3.3V TTL Side: DB9 Male or 5 bit Terminal Block

Port protect                        600W surge protection, 15KV ESD protection

Power

Power                                          Port powered from RS-232 data lines

Current Consumption              Less than 10mA

Environment

Operating temperature          -10°C to 60°C

Storage temperature             -40°C to 85°C

Humidity                                   5% to 95% (no condensation)

Appearance

Dimensions                62.8mm×33.8mm×17.8mm

                                       80.3mm×33.4mm×18.6mm (with terminal block)

Material                         Iron (shell)

Weight                          24g(with terminal block: 36g)

Warranty                     5 years

Approvals                    FCC, CE, RoHS

Packing List

1) 3onedata Serial Converter TTL-232-33P×1

2) Separate terminal block(DB9F to 5 bit)×1

3) User manual×1
