24-port Rack Mounted Industrial Ethernet Fiber Optic Switch
| Introduction |
| IES1024-20F industrial Ethernet switch consists of 4 Electrical ports and 20 Fiber ports that provide an economical solution for your industrial Ethernet communication. The IES1024-20F switches have an operating temperature range of -40 to 75°C, and are designed with low consumption and without fan. The rugged hardware design makes the IES1024-20F perfect for ensuring that your Ethernet equipment can withstand the harsh environment of industrial application. |
| Features |
1.Support IEEE802.3, IEEE802.3u, IEEE 802.3x 4.Support flow control, Broadcast storm control 10.19-inch rack mounted |
| Specification | |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Flow Control | IEEE802.3x flow control, Back pressure flow control |
Switch Properties | Forward speed: 148810pps Maximum filter speed: 148810pps |
| Interface | Electrical Port: RJ45 Connector, 10/100Base-T(X) auto negotiation , Half/full duplex and MDI/MDI-X auto detect Optical Fiber Port: 100Base-FX, SC/ST/FC connector Console port: Retain(RJ45 Connector) Alarm port: 1 channel relay alarm output( 2 bit terminal block) Power port: 1 channel power iutput( 3 bit terminal block) |
| Transfer Medium | 10/100Base-T(X):CAT5/CAT5e UTP(≤100m) 100Base-FX:Optical Fiber Multi-mode: 1310nm, 2Km wavelength: 1310nm, 1550nm |
| Indicator | Run indicator: Run Interface indicator: Link (1~24) Power supply indicator: PWR Alarm indicator: Alarm |
| Power Supply | Input Voltage: 100~240VAC Connector: 3 bits terminal block |
| Consumption | No-load consumption: 18.8W Full-load consumption: 20.7W |
| Environment Requirement | Working temperature: -40~75℃ Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
| Physical Characterisitics | Shell: IP30 protect grade, metal shell Weight:2.82kg Installation: 19” 1U rack mounted |
| Industrial Standard | EMI: FCC Part 15, CISPR (EN55022) class A EN61000-4-2 (ESD), Leve 4 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| Certification | CE, FCC, RoHS, UL508 (Pending) |
| Warranty | 5 years |
| Packing List | 1. Industrial Ethernet Switch IES1024-20F (plus terminal block) × 1 2. User manual × 1 3. Certificate of quality × 1 4. Warranty card × 1 5. Power cable × 1 |

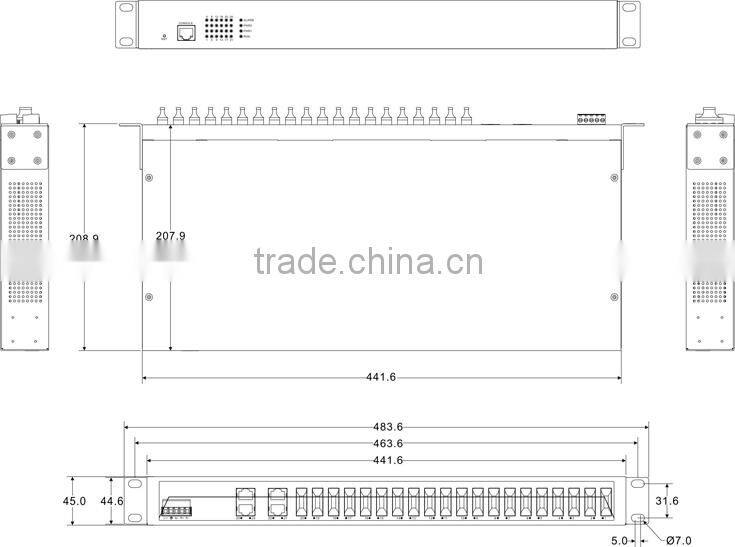

| Dimension |
| |

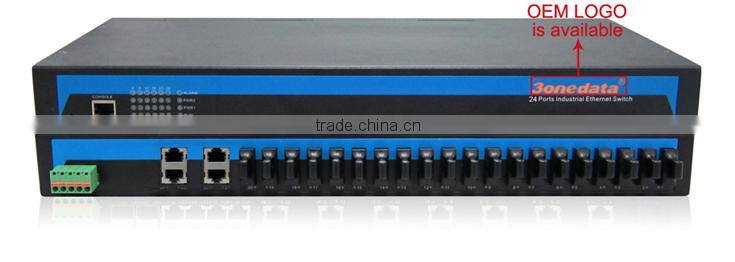

| Show Case |
| |
| Package |
|
| Shipping |
|
| Order Information |
| IES1024-20F (M): 4 port 10/100Baes-T(X) + 20 port 100Base-FX Multi-mode SC/ST/FC, 100-240VAC |
| IES1024-20F (S): 4 port 10/100Baes-T(X) + 20 port 100Base-FX Single-mode SC/ST/FC, 100-240VAC |
| IES1024-20F (SS): 4 port 10/100Baes-T(X) + 20 port 100Base-FX single-mode, single fiber SC/ST/FC, 100-240VAC |
