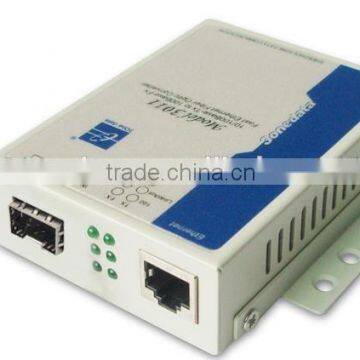

10/100/1000M Gigabit Ethernet SFP Media Converter(Model3011)

Feature

1) Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX,IEEE802.3ab 1000Base-TX,IEEE802.3z 1000Base-SX/LX

2) MDI/MDI-X auto negotiation, 10/100/1000M auto negotiation;

3) Supports full /half duplex, Point-to-point transparent transfer;

4) With one SFP slot;

5) Power External 5VDC input;

6) Plug-and-play, easy to installation;

7) Can insert to 2U 19", 14 slots Rackmount(power external).

Introduction

Model3011, 10/100/1000Mbps adaptive Gigabit Ethernet fiber converter uses the switching technology to conduct media conversion, which meets the standards of IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab. This kind of media converter supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX.Model3011 can conduct mutual conversion between 10Base-T/100Base-TX/1000Base-T twisted pair electrical signals and 1000Base-SX/LX optical signals. This media converter extends the transmission distance of a network from 100m over copper wires to 120 Km. This media converter supports transmission in dual-fiber multi-mode, dual-fiber single-mode, SFP style fiber-optic connections.

Specification

Parameter

Standards                           comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE 802.3ab 1000Base-TX,

                                              IEEE802.3z 1000Base-SX/LX standards

RJ45 port rate                   10/100/1000Mbps auto negotiation

Optic port rate                   1000Mbps

Transfer distance            RJ45port: 100m

                                            Fiber optic: 20,40,60,80,100,120km(SM),2km(MM) optional

RJ45 port cable               UTP 5E

Fiber connector               LC

Fiber optic cables           Single Mode:8.3/125,8.7/125,9/125 or 10/125 um

                                           Muti-Mode:50/125,62.5/125 um

Wavelength                     850nm,1310nm,1550nm

Power

Power supply                External 5VDC input

Consumption               4W

Environmental

Operating Temperature               -10 ~65°C

Storage Temperature                  -20~70 °C

Operating humidity                       5% to 95%(no condensation)

Appearance

Dimension(L×W×H)           94.0mm×71.0mm×26.0mm(Power External)

Material                                 Iron (Shell)

Color                                     White

Weight                                  230g(power external)

Warranty time                 5 years

Certification                     CE,FCC, RoHS

Packing List

1) 3onedata Gigabit SFP Ethernet Media Converter Model3011 series(plus terminal block)×1

2) User manual ×1

3)DIN-Rail fittings×1,optional

4)5VDC power adapter×1
