ZX-50PW High Quality USB Microscope Camera
Description:
ZX-50PW series cameras are our new generation USB2.0 cameras (without built-in buffer). It makes dramatic breakthrough in image transmission speed and color reproduction etc compared with first generation ZX series cameras. Plug and play USB2.0 interface, occupy less system resources.
Application: microscope, portraits, medical care, chemistry, biotechnology, scientific research, education fields.
Specification:
1. Model: ZX-50PW
2. Pixels: 5.0 MP(Color)
3. Sensor Model: MT9P001
4. Sensor Size: 5.7mm(H)x4.28mm(V) 1/2.5" CMOS
5. Pixel Size: 2.2μm x 2.2μm
6. Resolution: 2592 x 1944(full resolution):6FPS
7. Frame Rate: 2048 x 1536(ROI):9FPS/ 1920 x 1080(ROI):13.4FPS/ 1280 x 960(SUM):15FPS/ 1280 x 960(BIN):15FPS/ 640 x 480(SUM):23.7FPS/ 640 x 480(BIN):23.7FPS/ Any Area(ROI)
8. Spectral: 380nm ~ 650nm
9. Response: with infrared filter
10. Exposure/ Time: 86μs ~ 3000ms
11. Sensitivity: 1.4V/Lux-sec
12. Shutter: Electronic Rolling Shutter
13. Image Data Format: 8bit RAW format
14. Operating Mode: Continuous output
15. Scanning Mode: Progressive Scan
16. Exposure/Control: Manual / Auto / Area
17. White Balance: Manual / One-Time / Auto / Area
18. Image Processing: GAMMA / Contrast / Black Level / Noise Reduction /
3D Noise Reduction / Sharpness/ saturation
19. Picture Format: JPEG / BMP / PNG / RAW
20. Product ID: User Defined
21. Software Interface: Direct Show / TWAIN
22. Operating System: Windows XP(32 bit) / Windows7(32 bit/64 bit) / Windows8(32 bit/64 bit)
23. Data Interface: USB2.0 (B Type interface)
24. Lens Mount: C/CS Mount
25. Dimension: 45mm x 48mm x 36.4mm(Exclude lens mount)
26. PCB Size: 39mm x 39mm (2 pcs board)
27. Weight: Approx. 112g (with case and fixed blocks)
28. Rotated Voltage: USB5V power supply(No external power supply circuit)
29. Rated power: <1.5W
30. Temperature: operation :0~50℃ / storage:-20℃~60℃
31. Humidity: Working :10%~90%RH(No condensation) / Storage:10%~60%RH
32. LED Pilot Light: Lighting once plug/ flashing when working.
Detail Show:

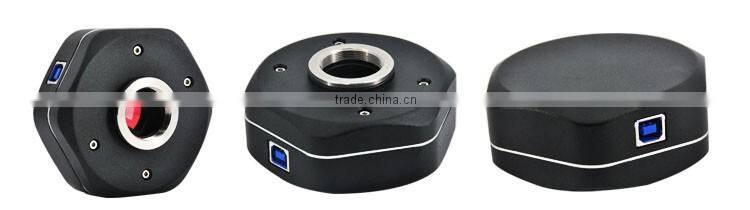

100% Products Actual Photos

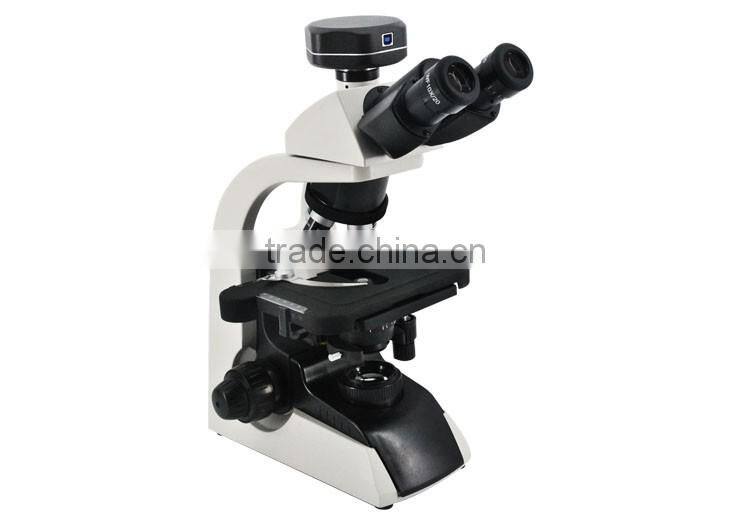

The effect of USB camera after interfacing on microscope.
