ZHONGXUN ZX-11701 Biological Microscope
Description:
ZHONGXUN ZX-11701 Biological Microscope configuration achromatic and wide field eyepiece, with binocular observation mode, clear imaging, vision characteristics, which can be widely used in fields such as medicine, agriculture, education. It is the ideal instrument for research institutes, medical treatment and teaching. Standard 10X of large Visual field of the eyepiece, objective lens is 4X /10X /40X / 100X. Optical magnification 40-1000X. Optional eyepiece 16X, reaching 1600X magnification. Lighting for LED 3W light illumination, adjustable brightness, true color.
Specification:
1. Model#: ZX-11701
2. Eyepiece tube: Hinged binocular eyepiece tube ( Inclination 30°)
3. Eyepiece: High eye-point wide field eyepieces WF10X/pair
4. Optional eyepiece: WF16X/pair
5. Eyepiece adjustment: Interpupillary distance adjustment range 48-75mm,diopter adjustment ±5°
6. Objective: Achromatic objective 4X. 10X. 40 X. 100 X ( Oil )
7. Objective nosepiece: Backward quardruple nosepiece
8. Optical magnification: 40X /100X /400X /1000X(1600X)
9. Stage: Double platform , Size:140mmX140mm, moving range:75mmX75mm
10. Focus system: Coaxial coarse/fine focou with tension adjustable and up stop
minimum division of fine focusing: 2μm
11. Condenser: N.A.1.25 ABBE Condenser with iris diaphragm and filter(frosted)
12. Light source: 3W LED lamp and brightness adjustable.

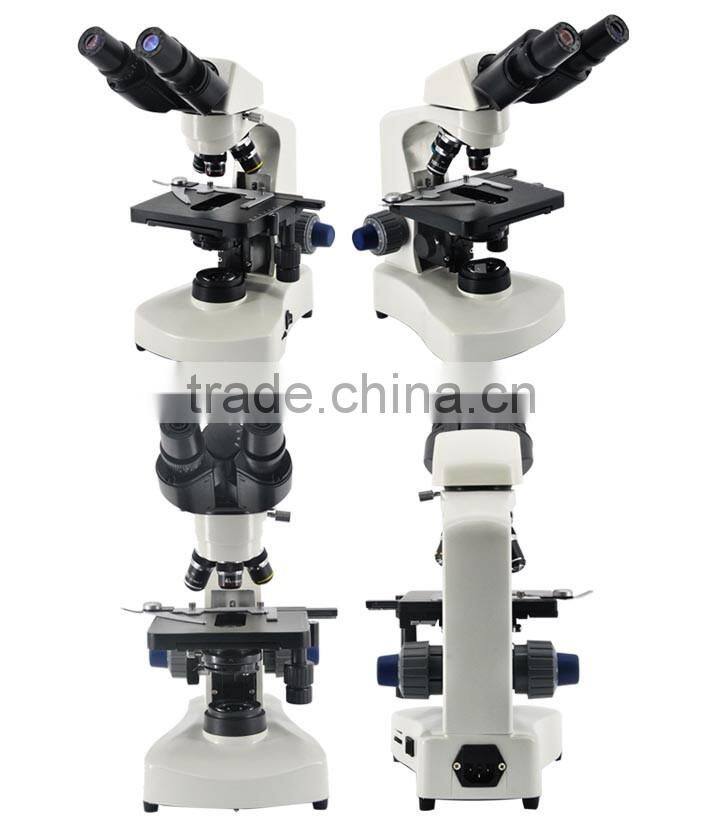

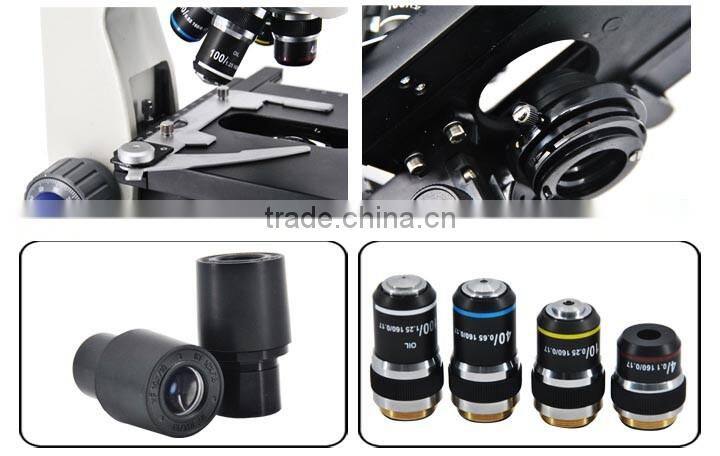

Detail Show:
100% Products Actual Photos

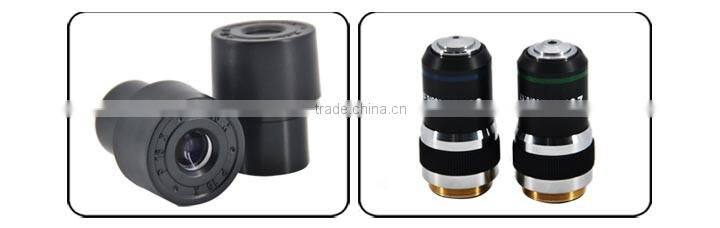

1 pair of 10X Eyepiece Achromatic objective: 4X, 10X, 40X, 100X
Optional Accessories
1 pair of 16X Eyepiece Achromatic objective: 20X, 60X
