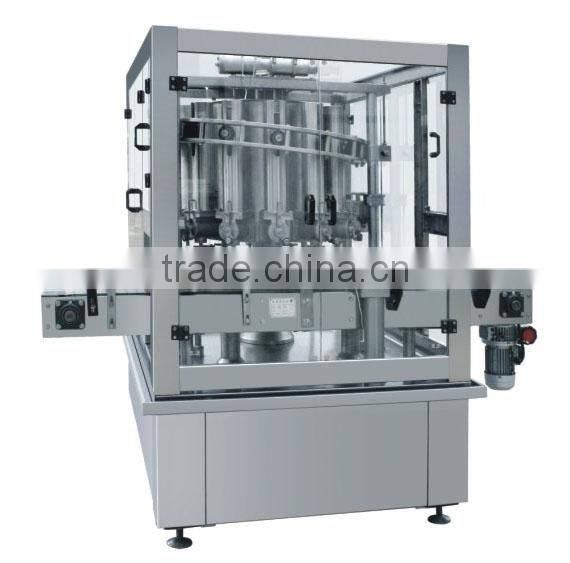

Help CenterSauce Can Filler
Related Products
Specifications
Piston fillingFrequency drive
No-can-no-filling
Touch screen operation
Materials stirring system
GJ series:
Item No: |
GJ12 |
GJ24 |
GJ36 |
Filling heads: |
12 |
24 |
36 |
Capacity: |
80~200cans/min |
80~400cans/min |
80~500cans/min |
Filling volume: |
70g / 400g / 850g |
70g / 400g / 850g |
70g / 400g / 850g |
Can Diameter: |
φ52-99mm |
φ52-99mm |
φ52-73mm |
Can Height: |
H39-160mm |
H39-160mm |
H39-160mm |
Power: |
4Kw |
5.5Kw |
7.5Kw |
Voltage: |
380V 50HZ 3p |
380V 50HZ 3p |
380V 50HZ 3p |
Weight: |
1500kg |
2800kg |
4000kg |
Dimension: |
1800*1500 *1900 |
2200*1800*2100 |
2400*2000*2100 |
This piston sauce filling machine is designed and produced on the basis of the most advanced technology of the piston filling machine. It is suits for hot and cold filling.
The main electric elements adopt “Siemens” PLC, “Delta” frequency converter, “Omron” proximity sensor, and “Siemens” analog output. Set up production speed through touch screen, the machine alarm automatically of common malfunction and show corresponding malfunction position, and then PLC judge to continue to work or stop according to the serious level.
This series of machines are suitable for filling of all different sauces (like ketchup,chili paste,jam and so on),the high concentration beverage with flesh or granular,thick material and liquid. It is high speed, running steady, good looking and easy to use and maintenance.
Specification:
-The machine is in great shape, most parts of the unit are made of superior quality stainless steel and up to the food hygiene standard.
-The piston and piston cylinder are durable and cooperated in harmony after special treatment of cutting-edge technologies.
-The machine is equipped with the agitation system and automation system, like three-point liquid level control system,frequency conversion adjusting speed system,protection system of cans when they move in and out of the machine and speed adjustment system.
Technical Parameter: | |
Item No: |
GJ24 |
Filling heads: |
24 |
Capacity: |
80~400cans/min |
Filling volume: |
70g / 400g / 850g |
Can Diameter: |
φ52-99mm |
Can Height: |
H39-160mm |
Power: |
5.5Kw |
Voltage: |
380V 50HZ 3p |
Weight: |
2800kg |
Dimension: |
2200mm*1800mm*2100mm |
