Help CenterFactory Price Hot Sales Tomato Sauce Filling Production Machine
Related Products
-
12-head Full-automatic Tomato Sauce Filling MachineNegotiableMOQ: 1 Set -
Peanut Butter/tomato/chili Sauce Filling MachineNegotiableMOQ: 1 Set
-
Tomato Filling Automatic Paste Filling MachineNegotiableMOQ: 1 Pack
-
Automatic Tomato Jam Pulp Honey Jam Fill Seal MachineNegotiableMOQ: 1 Pack
-
Tomato Ketchup Making MachineNegotiableMOQ: 1 Pack
Specifications
CPM:80-500/for tinplate can / 70g 400g & 850g / frequency control / touch screen operation / Mitsubishi PLC / 36/8Packaging Details: |
WOODEN CASE |
Delivery Detail: |
45 days after down payment |

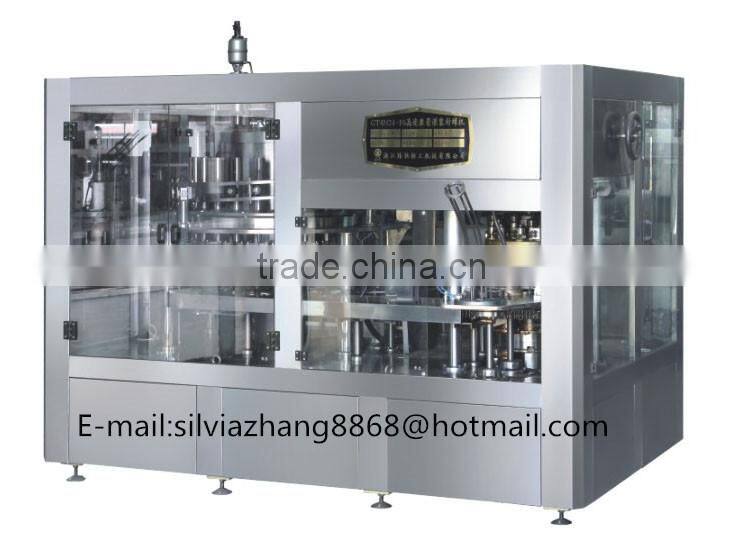

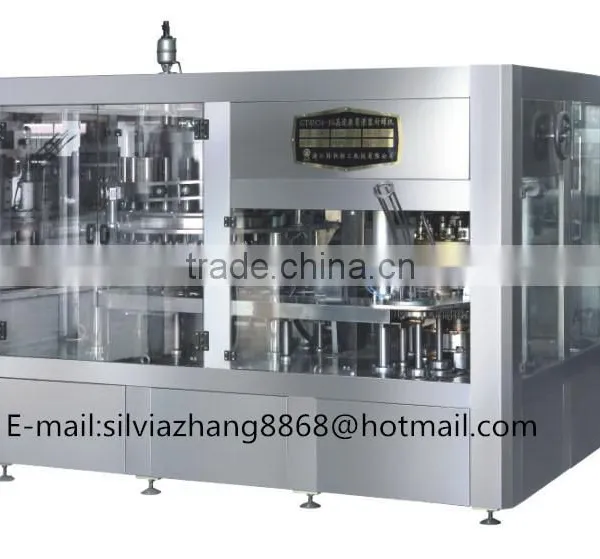

1. This piston sauce filling and seaming machine is designed and produced on the basis of thirty years experience in food packing field and the most advanced technology of the sauce filling machine.
2.This series of machines are suitable for filling of all different sauces (like ketchup,chili paste,jam and so on),the high concentration beverage with flesh or granular,thick material and liquid. The machine set is in great shape, most parts of the unit are made of superior quality stainless steel and up to the food hygiene standard.
3.The piston and piston cylinder are durable and cooperated in harmony after special treatment of cutting-edge technologies. The machine is equipped with the agitation system and automation system, like three-point liquid level control system,frequency conversion adjusting speed system,protection system of cans when they move in and out of the machine and speed adjustment system.
4.The main electric elements adopt “Mitsubishi” PLC, frequency converter and proximity switch. Set up production speed through touch screen, the machine alarm automatically of common malfunction and show corresponding malfunction position, and then PLC judge to continue to work or stop according to the serious level.
Technical data:
Item No: GT4N36-F8
Capacity: 80~500cans/min
Filling volume: 70g / 400g / 850g
The number of capping heads: 8
The number of filling heads: 36
Power: 11kw
Weight:6880kgs
Can Diameter:φ52.5-73mm Can height: H39-160mm
Size: 3650*2150*2200mm
