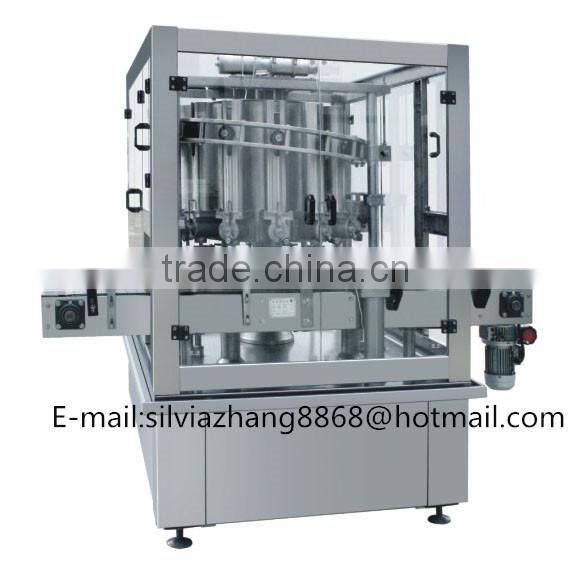

GT4N12 Automatic Salad Jam Can Filling Machine

Specifications

• Type: Filling Machine
• Condition: New
• Application: Food
• Packaging Type: Cans
• Packaging Material: Metal,Glass
• Automatic Grade: Automatic
• Driven Type: Electric
• Voltage: 380v
• Power: 4kw
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: weichi
• Model Number: GT4N12
• Dimension(L*W*H): 1800*1500*1900mm
• Weight: 1500kgs
• Certification: ISO9001
• After-sales Service Provided: Engineers available to service machinery overseas
• Color: Metal

Packaging & Delivery

Specifications

12 filling head/CPM: 80-200 / Volume: 70-850ml / frequency control / touch screen operation / Mitsubishi PLC

     This series of filling and capping machines are suitable for filling of all different sauces (like ketchup,chili paste,fruit jam and so on),the high concentration beverage with flesh or granular,thick material and even liquid.

    1. This machine is in great shape, most parts of the machine are made of superior quality stainless steel and up to the food hygiene standard. The piston and piston cylinder are durable and cooperated in harmony after special treatment of cutting-edge technologies.

   2.The machine is equipped with the agitation system and automation system, like three-point liquid level control system,frequency conversion adjusting speed system,protection system of cans when they move in and out of the machine and speed adjustment system. It is running steady, filling volume precision, and suits hot and cold filling.

    3. The main electric elements adopt “Mitsubishi” PLC, frequency converter and proximity switch. Set up production speed through touch screen, the machine alarm automatically of common malfunction and show corresponding malfunction position, and then PLC judge to continue to work or stop according to the serious level.

Technical data:

Item No: GT4N12

Capacity: 80~200 cans/min

Can Diameter:52-99mm

Can Height:50-160mm

Filling volume: 70-8500g

The number of filling heads: 12

Power: 4kw

Weight:1500kgs

Size: 1800×1500×1900mm
