Juice Filling Machine

Specifications

Technical data:

Item No: WQF4G18

Power: 5.5kw

Capacity: 30~250cans/min

The number of capping heads: 4

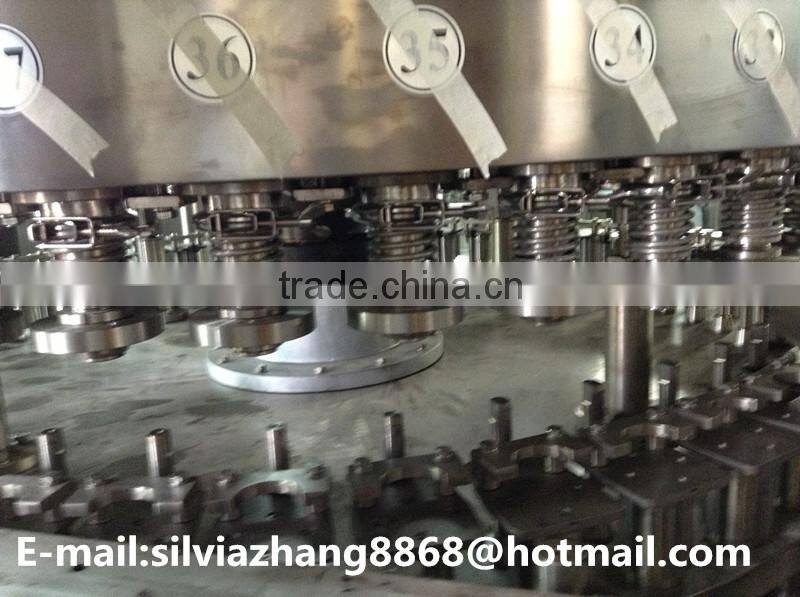

The number of filling heads: 18

Weight: 3800kgs

Can Diameter:φ52.5-99mm   Can height: H39-160mm

Size: 3050*1750*1900mm

     This machine is the equipment which designed and produced on the basis of beverage filling and machine. The main electric components adopt import products, like "Mitsubishi" PLC,   frequency converter and proximity switch. It is high speed of filling,running steady,high quality seaming,pleasing shape,convenient for use and maintenance,touch screen operation,frequency control and the distances between liquid level and rim of can are consistent. It is ideal equipment for cannery.

     And you could setup the production speed on touch screen. Machine alarm automatically of all common malfunctions and show the cause and position of malfunction, PLC detect and decide to continue or stop the machine according the level of malfunction.

Other advantages:

1. Overall structure is more reasonable and beautiful;

2. The diameter of seaming head is bigger than before which prolong the seaming cam service. And adopts import heavy bearing which average working life increase at least 5 times.

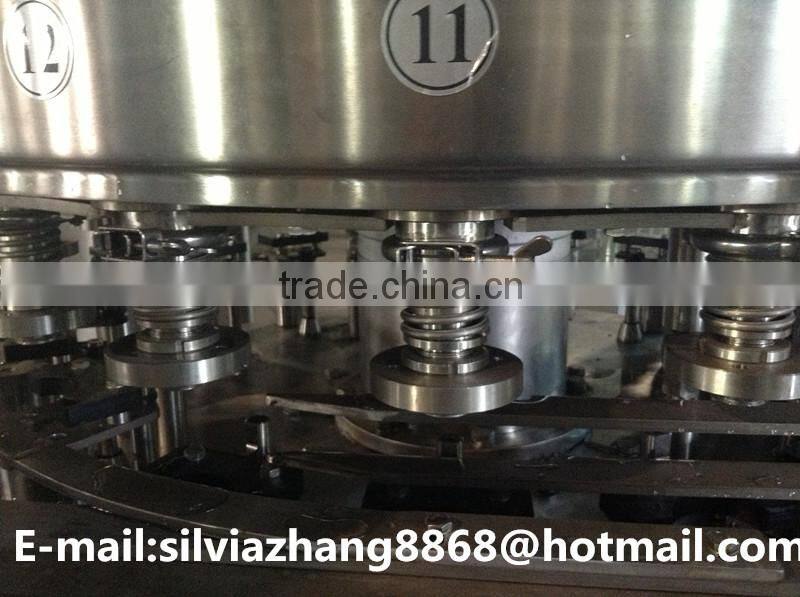

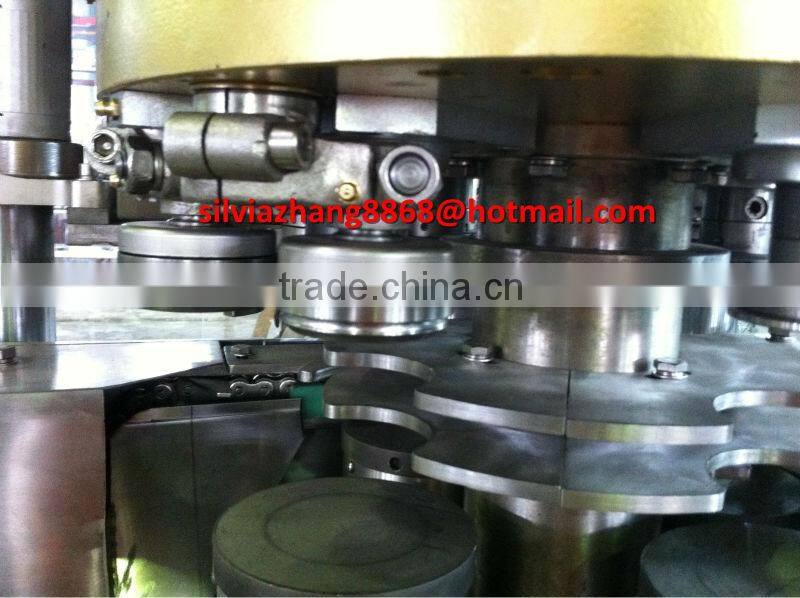

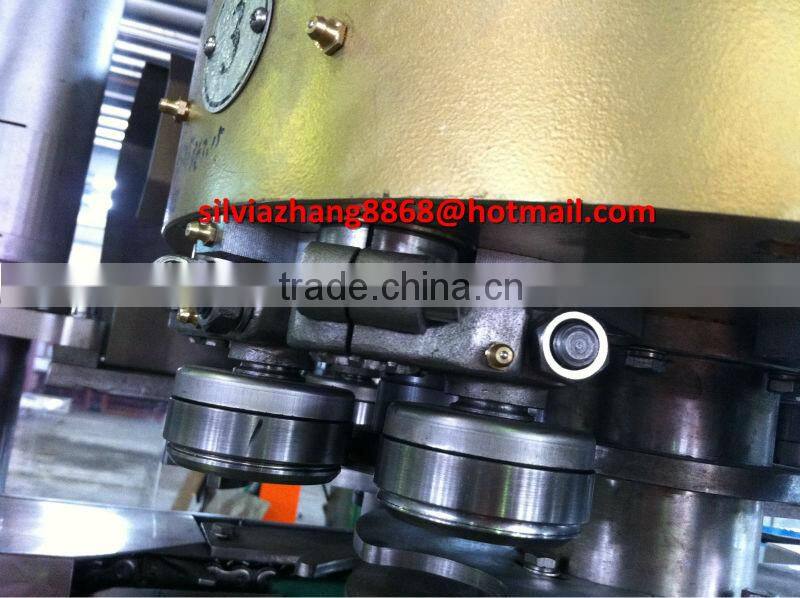

3. Twin axle structure: The first seaming roll and the second seaming roll are separated.

4. The capper is running in an anticlockwise direction, and make the cans leave the capper as it’s direction to avoid jam and scratchs.

5. Liquid cylinder is arc structure, no dead angle for liquid left, and adopts CIP clean automatic design (under the user’s requirement), clean without tear apart the filling head after working.
