Broiler breeding machine
(BRAND:BIRDSITTER)

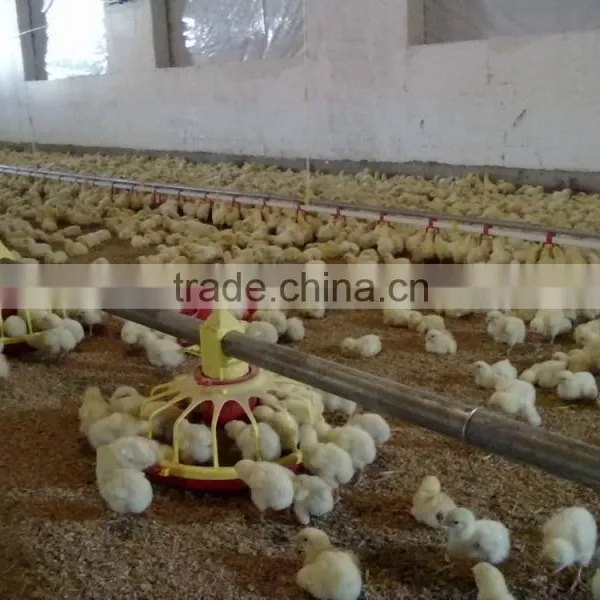

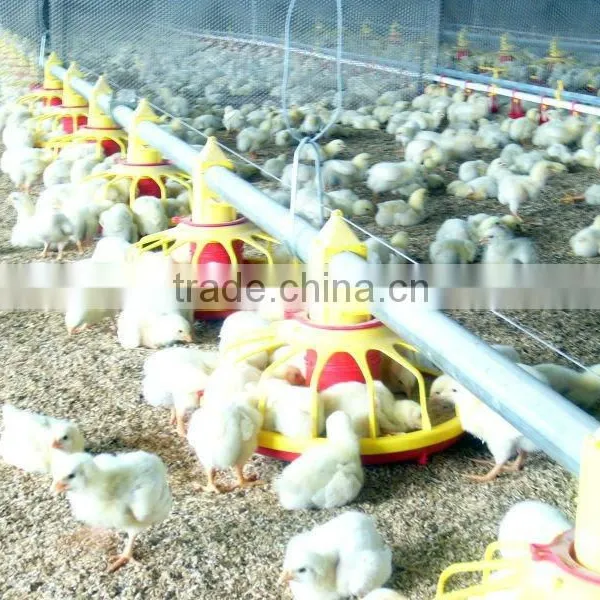

1.Pan feeding system
1) feeding system
Feed pan is the core of feeding system.whose scientific design and best material ensures its long usage life and best function.
2) delivery system
The delivery system conveying the fodder from the hopper to each feed pans through the feed pipe automatically.when all the feed pans are full of feed ,the control box will stop .while ,when the feed are eaten up,it will work automatically.

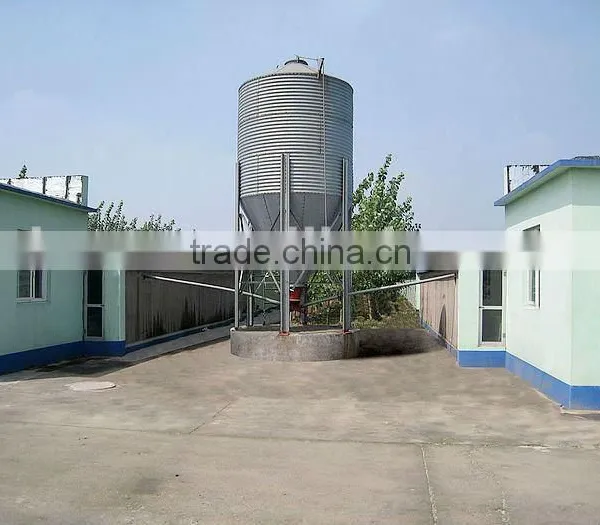

3) feed storage system
Feed of poultry raising farm is stored in the silo,which not only stored a large quantity of fooder,but also keeps the fooder clean and pure. you can choose the specifications according to thesize of your poultry house.
4) electronic control system
Electronic parts control the whole system. our engineers will provide you with purchasing guide.
Feeding system Parameter:
| Capacity of hopper | 100-130L |
| Max feeding length | 150m |
| 3hole/4hole feeding pipe | Ø45mm |
| Feeding pipe length | 3m/unit |
| Motor | 0.37/0.55/0.75kw, 3 phrase , 50Hz |
| Distance of feeding line | 3m |
| Feeder pan | 40-60 Birds ( ≤2.5Kg ), 30-40 Birds ( ≥2.5Kg ) |
| Hanging Point | 3m |
| Hanging system | Winch in the Middle farm. All steel wire. |

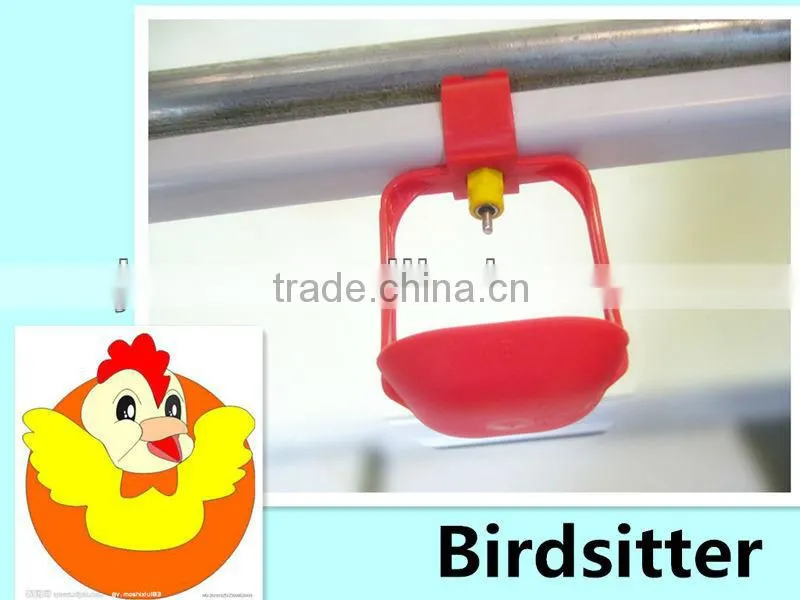

2.Nipple drinking system
Clean Drinking water is very important for Poultry grow. For this, we must provide Poultry farm best resposible water drinking system. Drinking system must be clean, make it easy to have water for poultry.
BIRDSITTER could satisfy different demand of poultry: Broiler, Breeder, Layer and duck.
In modern drinking type, it proved that nipple drinker is the best way to provide healthy and clean water for poultry.
Advantage:
1.Made up of best plastic, so it's light in weight and long life span in usage
2.Save water, convenient to dissemble and use
3.Keep the water from dropping onto the floor, so it can be dry
Drinking system parameter
| Drinking pipe | 8nipple/10nipple/12nipple/15nipple/3M |
| Drinking line distance | 2.5-3.5M |
| One nipple could supply | 10-15 Birds |
| Max provide length | 150M |
| Hanging Point | 3M |

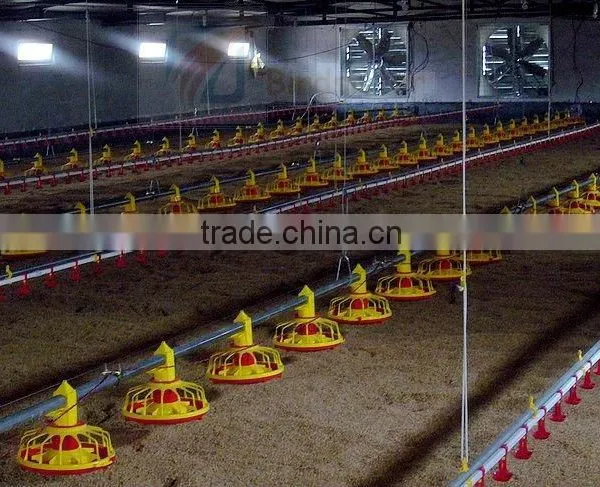

3.Environment control
4.Exhaust fan ventilation
ventilation fan (COS50") exhaust fan:(COS36") cone fan Air inlet
Frame:
galvanized steel sheet
The fan translations have all passed the experiment of homeostasis, which makes the air volume keep the same at the very beginning during the operational lifespan.
Shutter:
High strength hotgalvanized steel sheet, with a centrifugal system which can ensure the shutter opens with the angle of 90 degree under all the condition.And uncontrollable air can never goes into the birdhouse as the shutter works.
5.Cooling pad system
6.Main feed line
7.Heater system
For detailed information,please don't hesitate to contact us .
The reason you choose us
1)Superior Quality: Quality is what we exceed others and what we are proud of !
2)Best Service: We have professional team to guide you to have the best choice for your farm.
3)Experience: We've established for 13 years and we are expert in poultry equipment.
Tips
1.Please pay attention to the quality when you choose the feed pan because the pan made of bad material is easy to break and with short life span.
2.Please look for Professional Manufactruer with experience to provide.professional guidance for you.
Quality Guarantee
1.Q:If I need all these equipment,and also need a best price,what should I do?
A: pls let us know:
1.the size of your poultry house(the length and width)
2.the quantity of chicken you plan to raise
3.the weight of each chicken when you sell in the market
2.Q:what's the material of feeding pan and feeding pipe?
A: the material of feeding pan is PP Plastic
the material of feeding pipe is galvanized steel
3.Q:what's the material of nipple?
A:the nipple material consists of the ABS plastic and stainless steel
4.Q:what's the material of plastic drip cup?
A:PP Plastic
5.Q:how long is the life of your products?
A:At least 8 to 10 Years
6.Q:Do you have any certification?
A:ISO9000
7.Q:Sample available?
A:Yes,sample free,but the client charge for the freight fee
For detailed information,please don't hesitate to contact us .
We are always ready to provide our best service for you!
The customer is always right!
