Automatic Chicken Farming Poultry Feeding System
(Brand:BIRDSITTER)
transaction record:

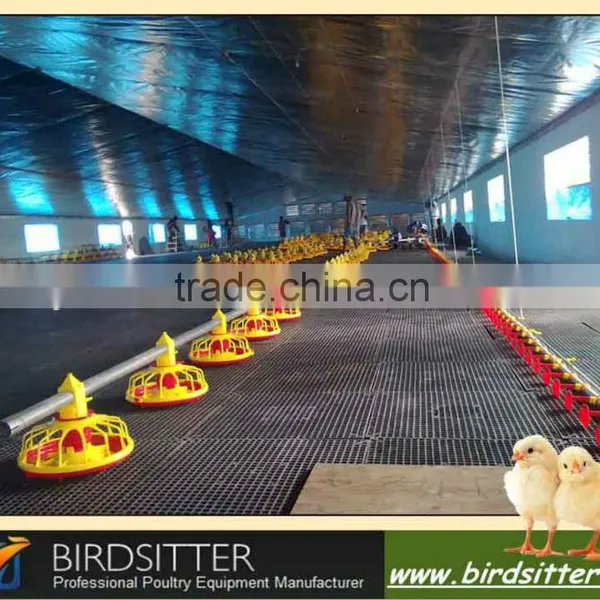

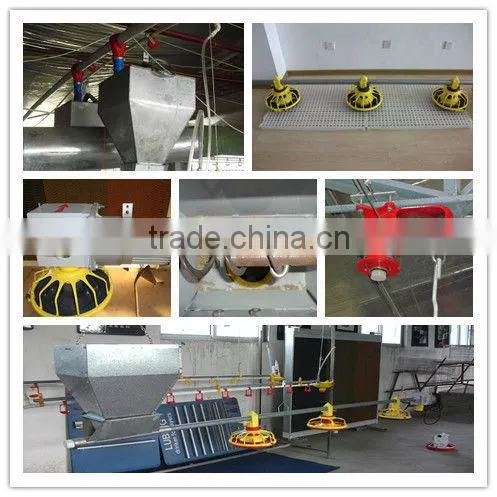

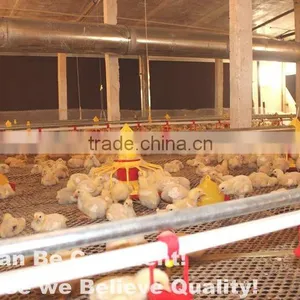

1.hot dip galvanized tube auger automatic Pan Feeding System
Feeding System Parameter:
Capacity of hopper |
100-130L |
Max feeding length |
150m |
3hole/4hole feeding pipe diameter |
45mm |
Feeding pipe length |
3m/unit |
Motor |
0.37/0.55/0.75kw, 3 phrase , 50Hz |
Distance of feeding line |
3m |
One feeder pan Capacity |
40-60 Birds ( <=2.5Kg ), 30-40 Birds ( >=2.5Kg ) |
Hanging Point |
3m |
Hanging System |
Winch in the Middle farm. All stainless steel wire. |
Advantages
1.PP&ABS material Automatic pan feeder featured durable and non-deformation even you standing up on it.
2.Hot dip galvanized stainless steel feed pipe printed 275g/squre meter Zinc.
3.Galvanized Hopper featured corrosion resistance and durable.
4.Imported South-Africa Auger
5.YK Motor from Taiwan
6.Powerful Winch H3500Pond

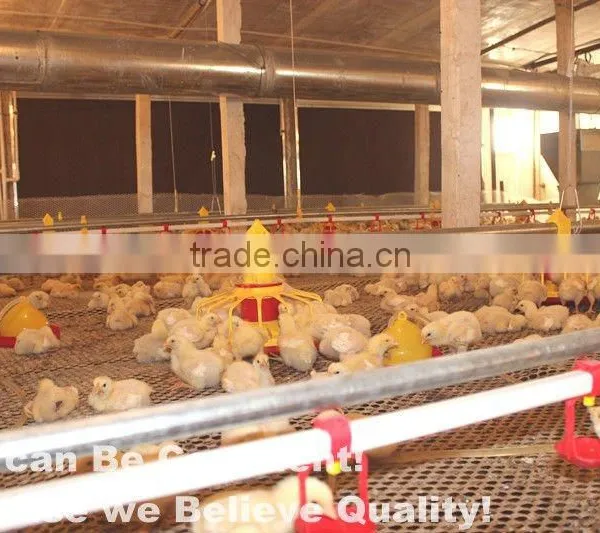

2.Lubing Squre Pipe Nipple Drinking System
Drinking System Parameter:
Nipple |
8nipples/10nipples/12nipples/15nipples/3M |
Drinking line interval |
2.5-3.5m |
One nipple supply capacity |
8-15 Birds |
Max supply length |
150m |
Hanging Point |
3m |
Advantages
1.Stainless steel rotated-360-degree-probe squre nipple featured good enclosure and stable outlet amount
2.PP&ABS plastic drip cup
3.Powerful Winch H1500 Pond
4.Large Adjusted Range Pressure Regulator
5.Frence Dostron Medical Pump
3.Environment Control System
Including:
1.Environment Controller
2.Temperature Sensor
3.Alarm System
4.Humidity Sensor
Advantages
1. Realize the distance control
2.Control the house in a suitable temperature and humidity condition according to chicken growing demand.
3.High-temperature limit alarm display and show up the fault temperature probe.
4.Fully enclosed chassis
5.Control fan, cooling pad and heating machine working

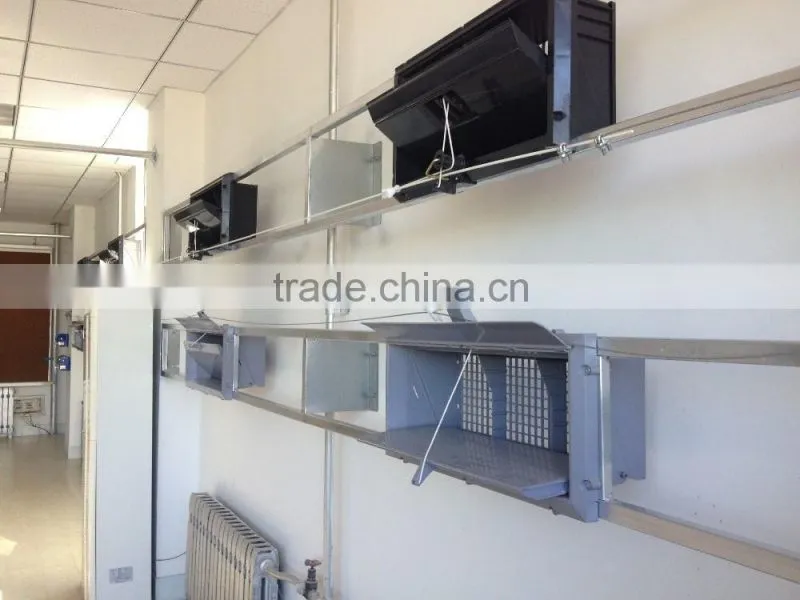

4.hot dip galvanized Ventilation System
Including:
1.Cos50 fan
2.Cos36 fan
3.Air inlet
4.Electric box & Control box
5.Automatic control motor
6.Winch
7.Left & Right pulley
Advantages
1.Hot dip galvanized stainless steel farmework printed 275g/squre meter.
2.Stainless steel blade
3.Hot dip galvanzied window shades.
4.High-strength and light Al-Mg alloy material Belt pully.
5.Imported Japan Leather belt.

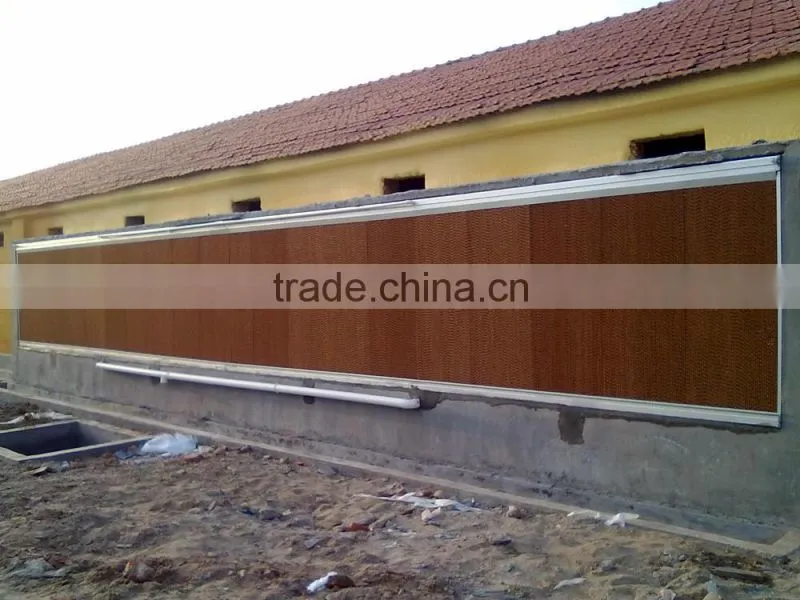

5. special paper pulp Evaporate Cooling Pad
Including:
1.Cooling pad (with /without frame)
2.Cycle water system
3.Filter
4.Water pump(with thermal protection)
5.Water replenishing system
Advantages
1.Made of Special Paper Pulp
2.PVC and galvanized Zinc Coated Steel, aluminum-alloy and stainless steel made framework.
3.Full set of water circulation: Water Circulation system made of PVC material.

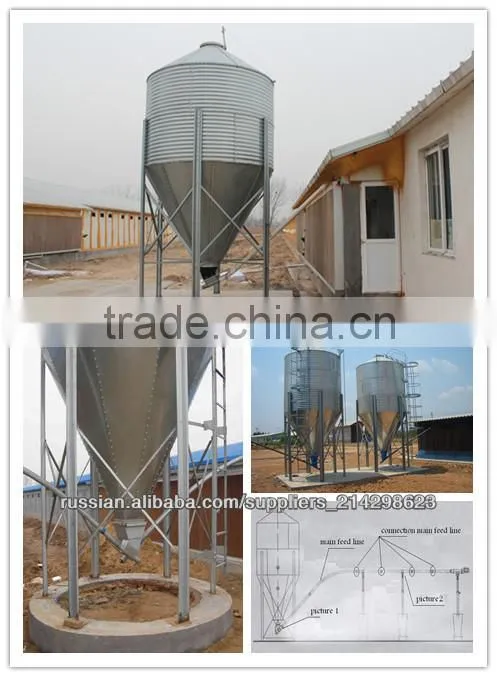

6. hot dip galvanized feed storage silo
Including:
1.Silo (3.4T to 34.6T for your selection)
2.Base hopper
3.Drive system
4.Feed sensor
5.Strobe with 3 outlets/ 2 outlets
6.Main feed line
7.Bent pipe
Advantages
1. Made of hot dip galvanized stainless steel, Soli printed 275g/squre meters Zinc.
2.Featured corrosion resistance and long service span as well as easy installation.
3.Consist of main warehouse, flip, ladders and columns etc.
4.With a lower concial holes to view feed level and upper and lower cone to the cone.
ISO9001 quality assurance
contact us if interested:
what's app: 86-18254589672
Skype: kayla yue
