Automatic Poultry House Equipment
(Brand:BIRDSITTER)

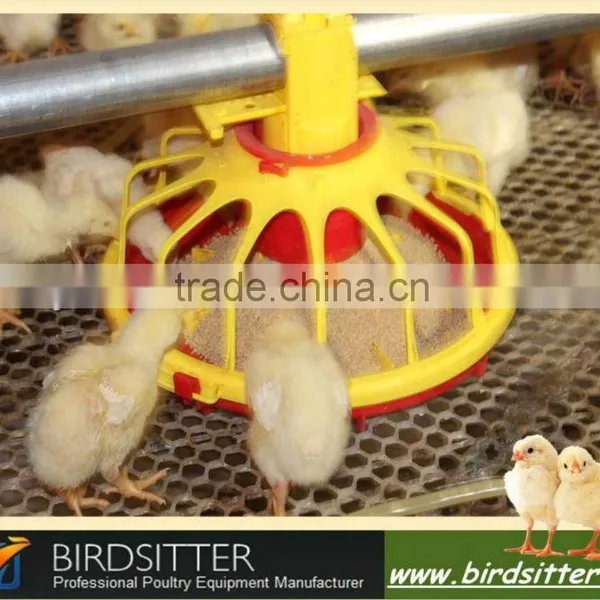

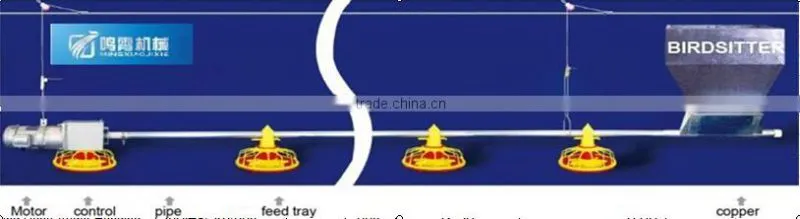

1. automatic chicken tube auger feeding system:
Feeding System Parameter:
Capacity of hopper |
100-130L |
Max feeding length |
150m |
3hole/4hole feeding pipe diameter |
45mm |
Feeding pipe length |
3m/unit |
Motor |
0.37/0.55/0.75kw, 3 phrase , 50Hz |
Distance of feeding line |
3m |
One feeder pan Capacity |
40-60 Birds ( <=2.5Kg ), 30-40 Birds ( >=2.5Kg ) |
Hanging Point |
3m |
Hanging System |
Winch in the Middle farm. All stainless steel wire. |
Advantages
1.PP&ABS material Automatic pan feeder
2.Hot dip galvanized stainless steel feed pipe printed 275g/squre meter Zinc.
3.Galvanized Hopper
4.Imported South-Africa Auger
5.YK Motor from Taiwan
6.Powerful Winch H3500Pond

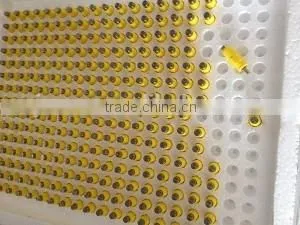

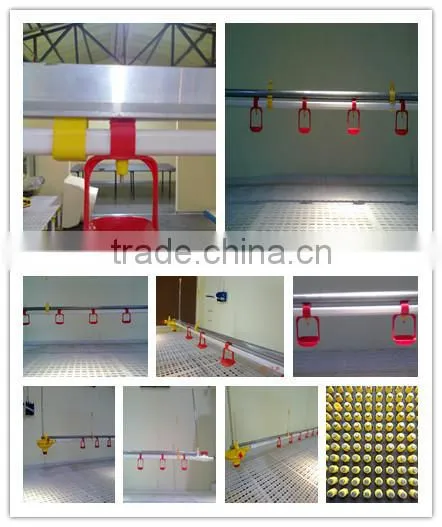

2.squre pipe 360 rotated probe Nipple Drinking System
Nipple |
8nipples/10nipples/12nipples/15nipples/3M |
Drinking line interval |
2.5-3.5m |
One nipple supply capacity |
8-15 Birds |
Max supply length |
150m |
Hanging Point |
3m |
Advantages
1.Stainless steel rotated-360-degree-probe squre nipple
2.PP&ABS plastic drip cup
3.Powerful Winch H1500 Pond
4.Large Adjusted Range Pressure Regulator
5.Frence Dostron Medical Pump
3.Environment Control System
Including:
1.Environment Controller
2.Temperature Sensor
3.Alarm System
4.Humidity Sensor
Advantages
1. Realize the distance control
2.Control the house in a suitable temperature and humidity condition according to chicken growing demand.
3.High-temperature limit alarm display and show up the fault temperature probe.
4.Fully enclosed chassis
5.Control fan, cooling pad and heating machine working
4.Ventilation System
Including:
1.Cos50 fan
2.Cos36 fan
3.Air inlet
4.Electric box & Control box
5.Automatic control motor
6.Winch
7.Left & Right pulley
Advantages
1.Hot dip galvanized stainless steel farmework printed 275g/squre meter.
2.Stainless steel blade
3.Hot dip galvanzied window shades.
4.High-strength and light Al-Mg alloy material Belt pully.
5.Imported Japan Leather belt.

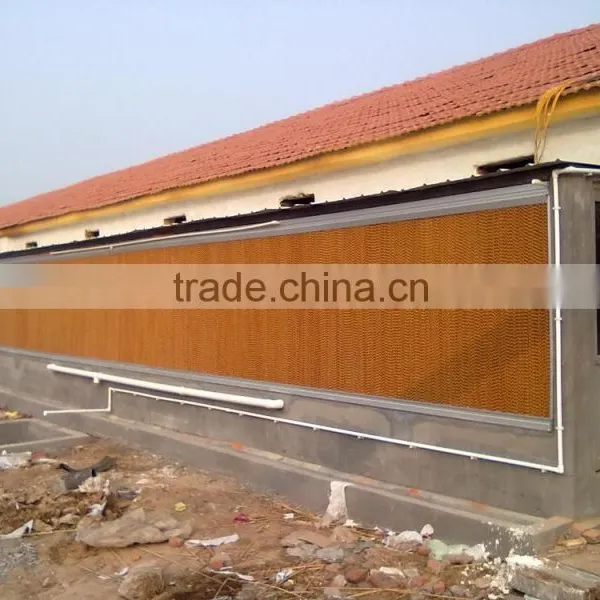

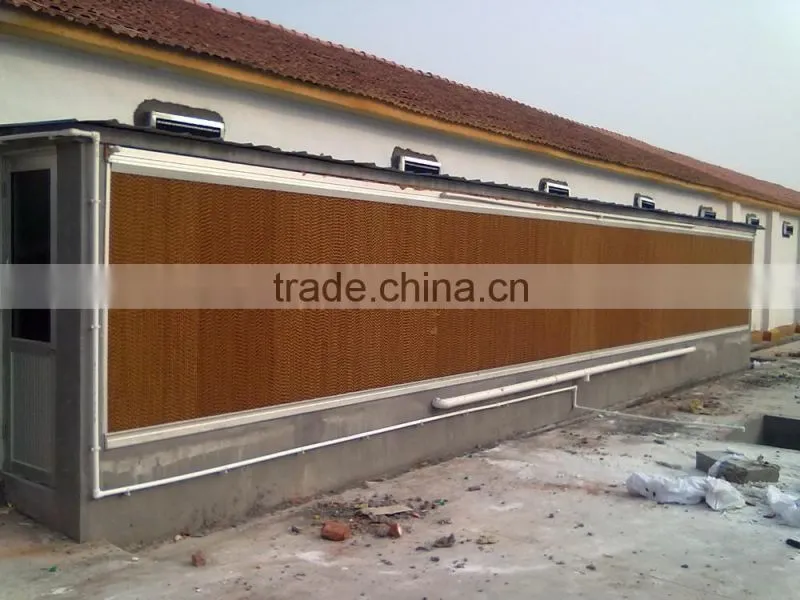

5. Evaporate Cooling Pad System
Including:
1.Cooling pad (with /without frame)
2.Cycle water system
3.Filter
4.Water pump(with thermal protection)
5.Water replenishing system
Advantages
1.Made of Special Paper Pulp
2.PVC and galvanized Zinc Coated Steel, aluminum-alloy and stainless steel made framework.
3.Full set of water circulation: Water Circulation system made of PVC material.
6. Main Feeding Line
Including:
1.Silo (3.4T to 34.6T for your selection)
2.Base hopper
3.Drive system
4.Feed sensor
5.Strobe with 3 outlets/ 2 outlets
6.Main feed line
7.Bent pipe
Advantages
1. Made of hot dip galvanized stainless steel, Soli printed 275g/squre meters Zinc.
2.Featured corrosion resistance and long service span as well as easy installation.
3.Consist of main warehouse, flip, ladders and columns etc.
4.With a lower concial holes to view feed level and upper and lower cone to the cone.
ISO9001 Quality Guarantee
Good Transaction Record
1.Q :If I need all the equipment, and also need a best price ,what should I do ?
A: Please let us know: 1.the size of your poultry house(the length and the width)
2.the quantity of chicken you are going to raise
3.the weight of chicken when you sell them to the market
2.Q: what's the material of feeding pan and feeding pipe?
A: the material of feeding pan is ABS plastic.
the material of feeding pipe is galvanized pipe.
3.Q: what's the material of nipples ?
A:the nipples consist of plastic and stainless steel. the stainless steel grade is :304.
4.Q: what's the material of nipple pipe?
A:ABS plastic
5.Q: how much is the life of your products?
A: More than 10 Years
6.Q:Do you have any certificate?
A:ISO9001&NTSQP
7.Q:Sample available?
A:Yes. but the client charge for the freight fee.
CONTACT US:
what's app: 86-18254589672
Skype: kayla yue
