Home > Products > Lifting Tools > 1/2T to 10T Plain Trolley

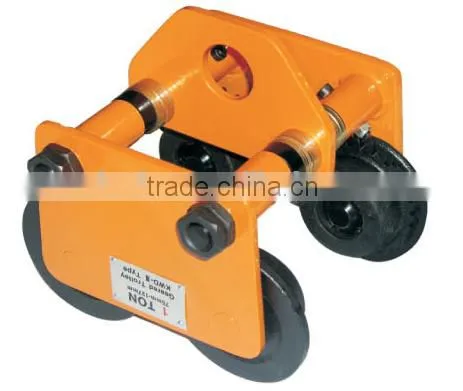

1/2T to 10T Plain Trolley
- 5000 Piece / Pieces per Month
- Shanghai or Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | China | Brand Name: | JacksAll or OEM | Model Number: | CN-KWD005A |
Material: | Stainless Steel | Wheel: | Four-wheel |
Product Description
1/2T to 10T Geared Trolley_Model Nr.: CN-KWD005A
*1/2Ton to 10Ton capacities.
*Designed for low maintenance and troble-free operation through a wide range of beams.
*For use with wide-flange H-beams, standard I-beam, or curved track.
*Multiple spacer washer make beam flange width adjustment quick and easy.
*Rugged steel side plates feature bulit-in bumper guards.
*Hardened wheels with lubricated for lift, double sealed ball bearings.
Model Nr. | CN-KWD005A | CN-KWD010A | CN-KWD020A | CN-KWD030A | CN-KWD050A | CN-KWD100A | |
Capacity(Ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | |
Test Load(Kn) | 7.35 | 14.71 | 29.42 | 44.13 | 61.29 | 122.58 | |
Min Radius Curve(M) | 0.9 | 1 | 1.1 | 1.3 | 1.4 | 1.7 | |
Dimensions(mm) | A | 195 | 207 | 240 | 252 | 294 | 375 |
B | 179 | 206 | 233 | 276 | 304 | 389 | |
C | 120.5 | 145 | 176 | 207 | 237 | 306.5 | |
D | 30 | 36 | 42 | 58 | 64 | 80 | |
I-Beam Width(mm) | 75-125 | 75-125 | 100-150 | 100-150 | 125-175 | 125-210 | |
Packing Measurement(mm) | 210*190*130 | 230*220*150 | 260*250*190 | 300*280*230 | 320*320*260 | 390*410*320 | |
210*180*70 | 230*190*80 | 260*220*90 | 320*270*120 | 330*320*130 | 420*330*230 | ||
Net Weight(kg) | 5.8 | 8 | 14.6 | 24.2 | 38.4 | 78 | |
Ship Weight(kg) | 6.2 | 8.7 | 15.4 | 25.2 | 40 | 84 |
