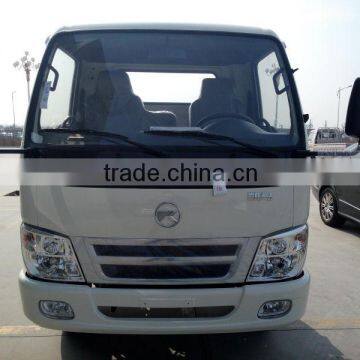

KAMA VAN TRUCK (1.5T)

Specifications

KAMA brand 4x2 light truck KMC5048P3XXY;
Engine Model 480;
Overall dimensions(LxWxH)(mm):5050*1770*2680;
Load Weight: 1500kg



Specifications	KMC5048P3XXY
Emission	E-Ⅰ
Suggested payload	1.5t
Engin Model	480
Bore/Stroke(mm)	80*90
Displacement(litre)	1.81
Power(KW)	38
Rated Rotate speed(r/min)	3200
Cooling	in-line ,water cooling, 4-stroke
Overall dimensions(LxWxH)(mm)	5050*1770*2680
Cargo Box Size(LxWxH-inner)(mm)	2870*1640*1710

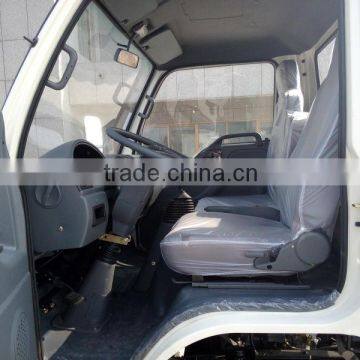

Cabin	one and half cabin(1580)
Drive Type	4*2
Seats in cabin	2
Transmission	520
Curb Weight(Kg)	2040
Load Weight(Kg)	1500
G.V.W	3540
Wheel Base(mm)	2600
Track(mm)   front	1390
back	1380
Max. Speed(Km/h)	95
Brake system	Hydraulic brake
Parking brake	Central drum type
Front axle	1605
Rear axle	1021BH
Front tire	600-15
Rear tire	600-15
Power steering	NO
A/C	/

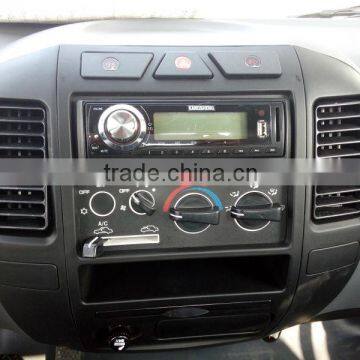

MP3	YES



Shandong Kama Automobile Manufacturing Co., Ltd. is a big industrial enterprise in China and one of the one-hundred top corporations of mechanical industry in Shandong Province. We have about 5,000 workers on production lines. Our main products are Kama brand automobiles, "Jubao" and "Aofeng" brand agriculture light trucks. Now we have pickup, mini, light, medium & heavy total five series and more than 400 models have already been listed in the national catalogue bulletin of trucks.
