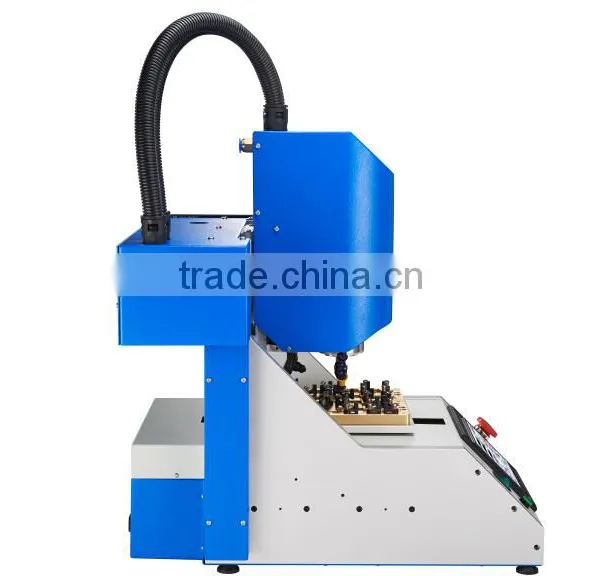

luxury pack LY 1001 automatic iphone ic remove router, cnc milling machine for iPhone Main Board Repair

CNC Milling Polishing Engraving Machine

for iPhone Main Board Repair

Professional LY 1001 automatic IC router simple and luxury pack

Simple  and  Luxury

Videos:

/watch?v=uOF1kI3wmgc&feature=youtu.be

Introduction

Perfectly combined producs of BGA & CNC. CNC tech applied in BGA repair industry, make mobile repairing become more easier for CNC field users, can get more broad apply area

This item is perfect to grind and remove the CUP, HHD, WIFI, FONT chips in iPhone series mobile phone without any damage in the board. It is effective machine to help you repair the iPhone 4, 4S, 5, 5S,6,6p and ipad……. You can use the soldering station to solder a good chip in the board after grinding. Great grinding machine in mobile phone repairing and refurbishing

Technical Parameters

a. Easy for learn and use

b.  Intelligent system
c. Automatic detection

d.  Visual design
e. high precision

f.  SD card storage

Packing list:

1× IC CNC Machine

1× one Mould

( the Mould total 5 models,but in pack only 1 mould 8 in 1 for 4,4s,5,5c,5s, others for optional as follows:

IPAD mini 1,mini 2,IPAD 2 (1pc);IPAD 3,4(1pc);IPAD 5,6(1pc);IP6 and IP6+(1pc)

And we accept EX-OEM works for other mobiles,but need customer provide motherboard,every mobile mould we can do.

1× SD Card

1× CCD System   ( luxury  optional )

1× vacuum cleaner ( luxury  optional )

  Features:

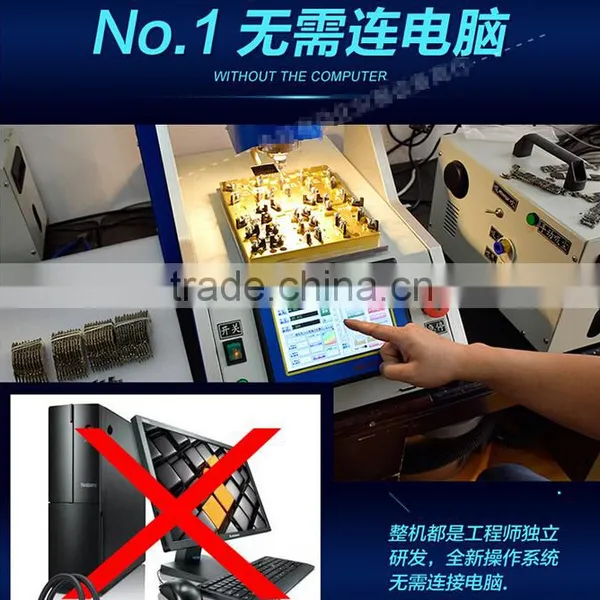

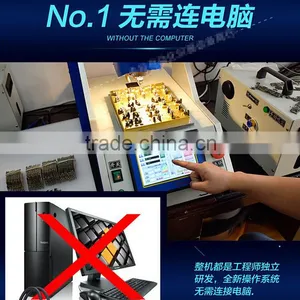

1. Don't need link with computer,whole machine was developed by senior engineers,unique operation system,built-in and all in one touch screen control,clear operation screen,only one button "RUN" can solve most operations.

2.Built-in sensors,automatic chipset flatness checking,analyzing,and generate curve working datas,even mainboard not flat,can also do it.

3.Full automatic drill tool align function,after change tip,don’t need align by manual,no need complex operations,save energy and time.

4.Automatic program generated,only need set target chipset size,then can generate g-code automatically,also support manual control on drill depth and coordinate,reduce missing rate.

5.Don’t need any computer technology basis,5 minutes can learn well,no need training long time,1 person can control 3 pcs above devices leisurely.

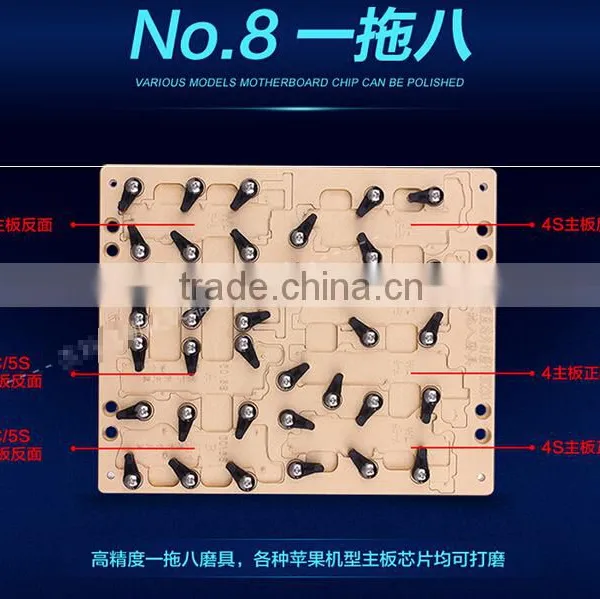

6.High precision 8 In 1 mould for apple mobiles,support unlimited upgrading on moulds and program.(Need to buy extra moulds to fix motherboard )

7.With intellegent SD card,apple ic data all saved,(6 series keep updating),can directly use when machine arrived.

8.Intellegent protecting system, machine with pause & emergency function and warning,customer can through the pressure to diagnose the drill tip losing status,remind users to exchange new drill blades.

 9.Dust absorption box,this device built-in machine drill head,support AUTO & MANUAL 2 working modes.(RE:Optional device,Luxury pack with it.)

10.HD CCD camera with 7 inch monitor,support manual focusing.(RE:Optional device, Luxury pack with it.)
