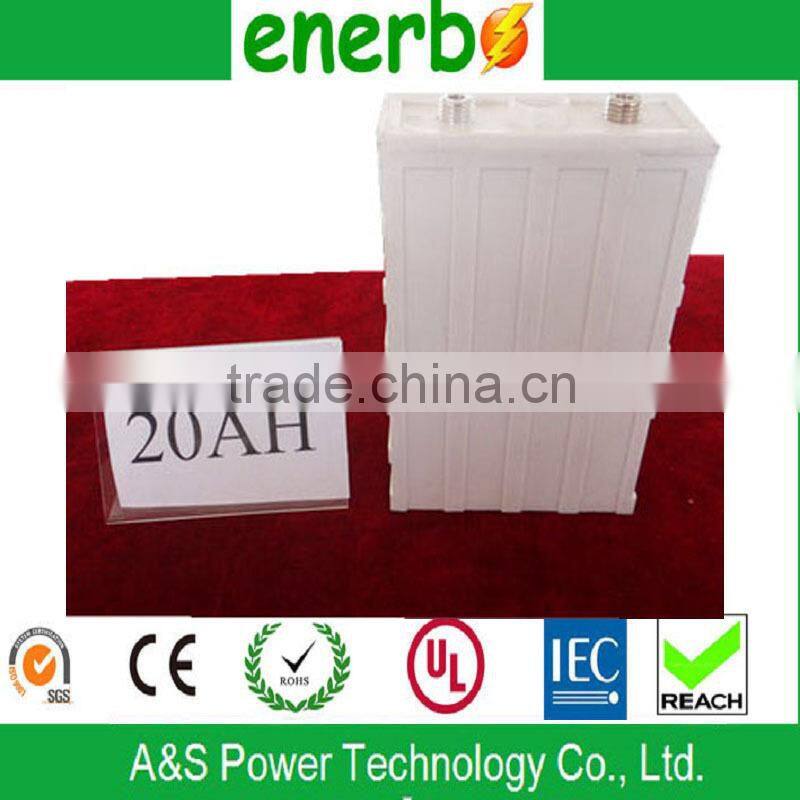

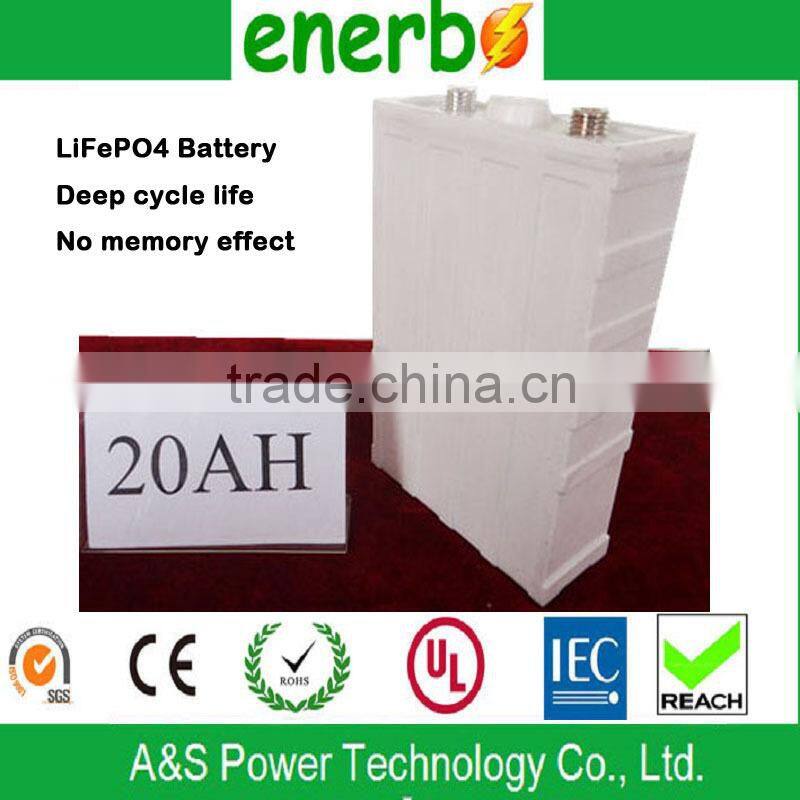

LiFePO4 Battery 3.2V 20Ah
Advantage:
1.Customized servic
2.Certification:SGS,CE,Rohs,MSDS,UL,IEC.
3. With high quality,competitive prices,prompt delivery and good service.
Specification:
| Product name | LiFePO4 |
| Model number | ASLFP-F20A |
| Weight | 560g |
| Size | 9.0*155*225mm |
| Customized available | |
| Nominal voltage | 3.2V |
| Nominal capacity | 20AH |
Standard charge |
Constant Current 0.5C Constant Voltage 3.85V 0.01C cut-off |
|
Maximum Continuous Charge Current
|
1C |
Maximum Continuous Discharge Current |
5C |
Charging at end of Voltage |
3.85v |
Operating temperature |
Charge : 0 ~ 45℃, |
Discharge : -10 ~ 60℃ | |
|
Storage Temperature Range
|
-20°~40°C |
| 65±20%RH | |
|
Less than 1 year:-20~25℃
Less then 3 months:-20~40℃
| |
Voltage at end of Discharge |
2V |
Features
1. confirm full capacity
2. low inner resistance
3. low discharge charge rate
4. environment friendly
5. no memory effect
6. strict test before delivery
Lithium-iron-phosphate (LiFePO4) Rechargeable
Part of application of LiFePO4 3.2v,20Ah:
Typical curves :

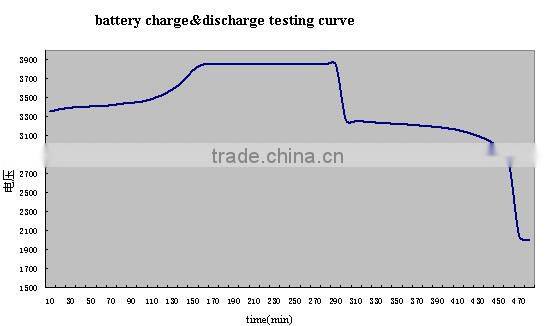

Typical charge/discharge curve graph:
Discharge curve at different rate:
This curve shows the discharge capacity at high drain rate . The Max discharge current allowed is 3C ,which is the instantaneous current within 15s .

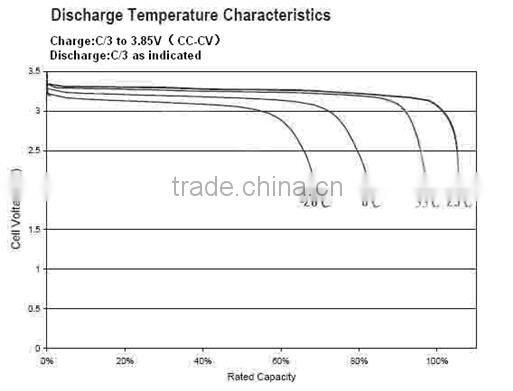

High/Low-temperature testing typical curve:

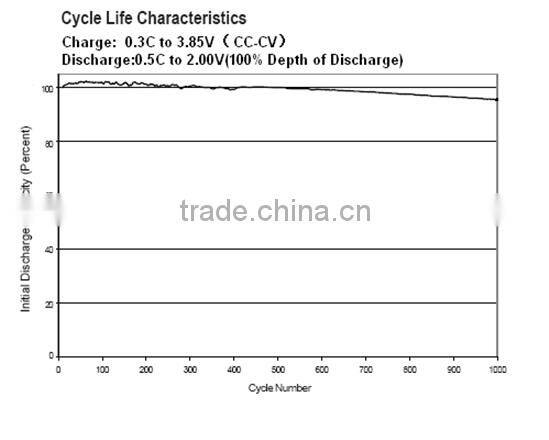

Cycle life curve:
Park of LiFePO4 Battery for energy storage:
|
Model
|
Voltage |
Capacity(Ah) |
Dimension(single case)L*W*H(mm) |
Weight (KG) |
AS-12.8V40Ah |
12.8V |
40Ah |
195mm*129mm*182mm |
6.5KG |
AS-8F75 |
24V |
75Ah |
251*255*195mm |
18KG |
AS-W-72V60Ah |
72V |
60Ah |
230*740*205 |
≤22KG |
AS-24V10Ah |
24V |
10Ah |
325*167*245 |
≤15KG |
ASLFP-F20A |
3.2V |
20Ah |
9.0*155*225mm |
560g |
AS-IFR26650*4 |
12.8V |
3.0Ah |
134*55*27mm |
200g |
AS-15F100 |
48V |
100Ah |
360*348*300 |
45KG |
AS-W-144V200Ah |
144V |
220Ah |
1020*850*240 |
≤336KG |
AS-IFR58680E |
3.2V |
10.5Ah |
58*68mm |
560g |

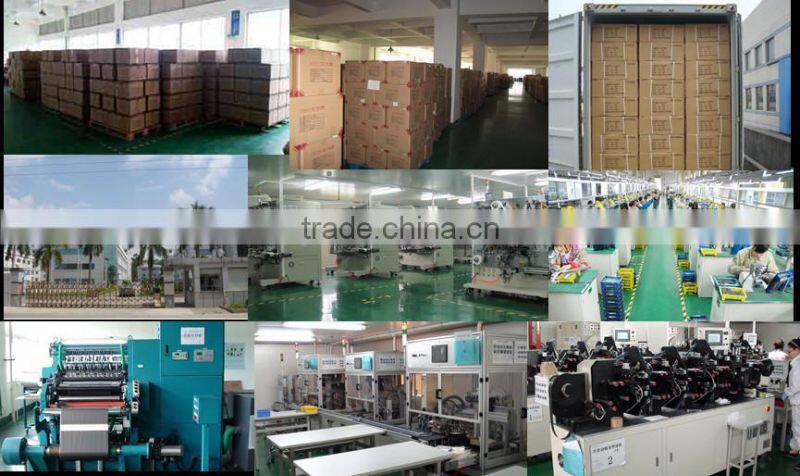

Package and Factory:
