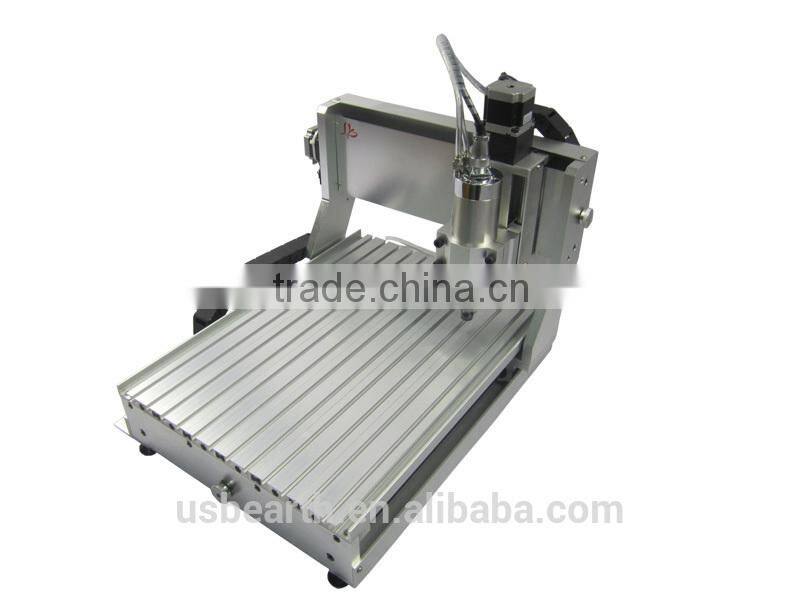

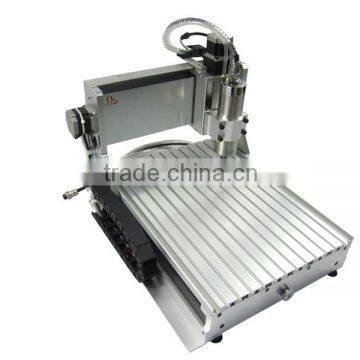

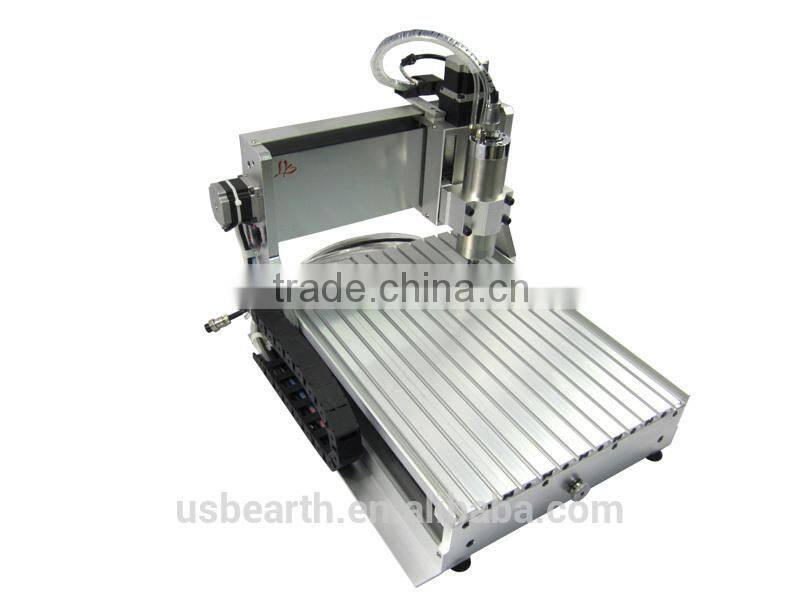

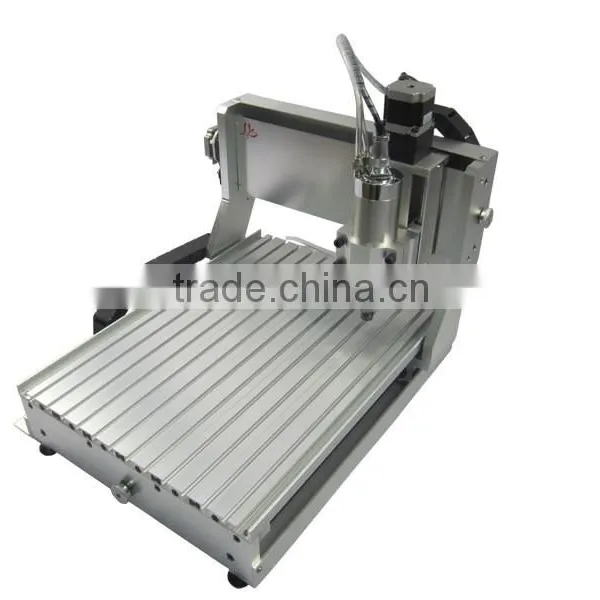

China hot-sale rotary axies 6090 4 axis cnc router with 1.5kw spindle for assembled & tested well
Tips:
The machine already assembled & tested well, can directly use after take them out from package!!!
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
In addition, it can be upgraded to be installed a rotational axis.
More Precise Stepping Motor
The engraving process is visible as controlled by computer
Simple operation and installation
1 year machine part and 6 months electrical parts/ stepping motor/ spindle Free Warranty
Shipping by DHL FEDEX UPS with tracking number
Technical Parameters:

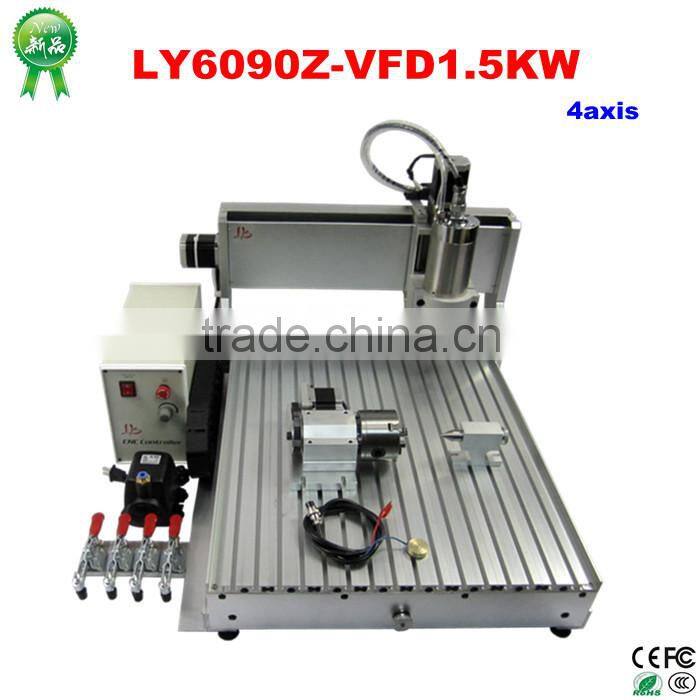

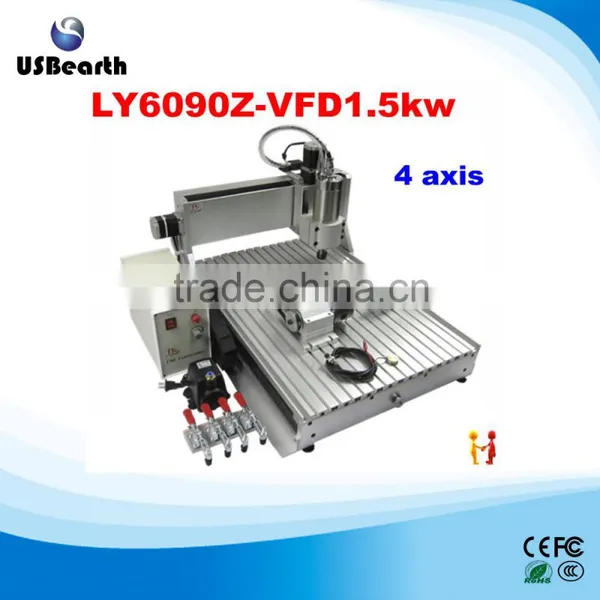

LY CNC router 6090 Z-VFD 1500W 4 axis engraving machine parameters:
Machine Dimensions: |
1200X780X580mm |
Rack material: |
6061 and 6063 Hard aluminum alloy |
Engraving area: |
900X600mm |
Z-Axis Stroke: |
125mm, Engraving depth depends on the length of the tool edge |
Acceptable material thickness: |
≤125mm |
Rail type: |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
Type of screw: |
Ball screw 1605, Pitch 4mm |
Spindle motor: |

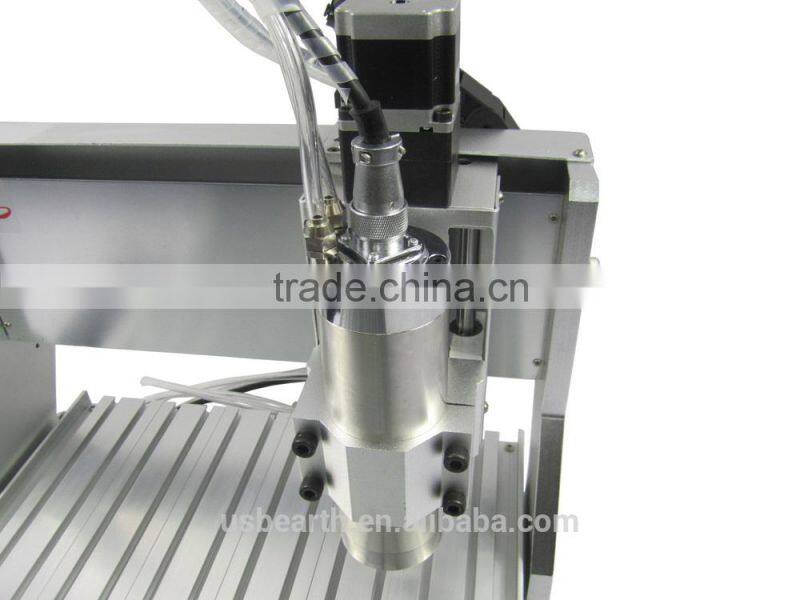

1.5KW VFD water cooling spindle , 0-24000r/min |
Collet type: |
ER11,1/8"(3.175mm) Collet |
Stepper motor and drive: |
two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive. |
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
Repeat positioning Accuracy: |
0.03mm |
Communication interface: |
Parallel port |
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
Command code: |
G code/.nc/.ncc/.tab/.txt |
Machine weight: |
120kg |
|

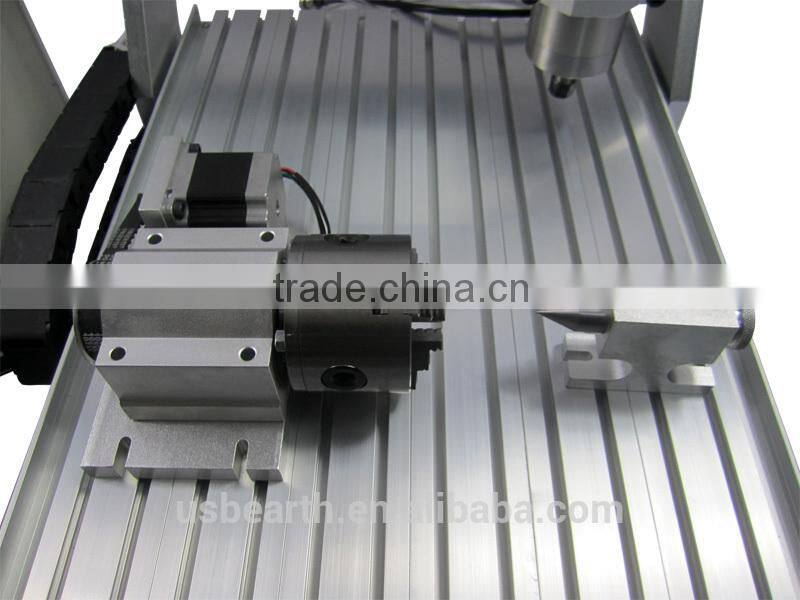

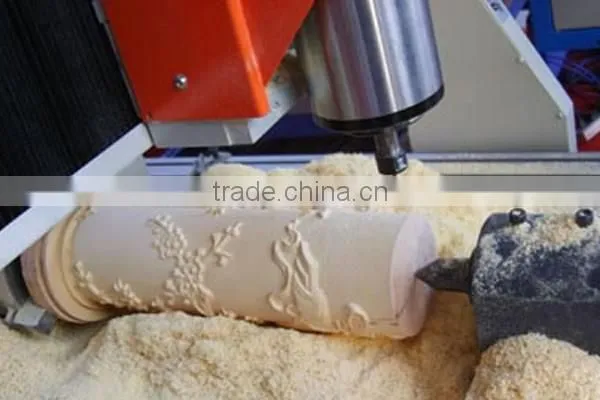

Rotation Axis (4th Axis) Description:
|
Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type / 2A two phase 4 line Positioning accuracy: 0.075 ° |

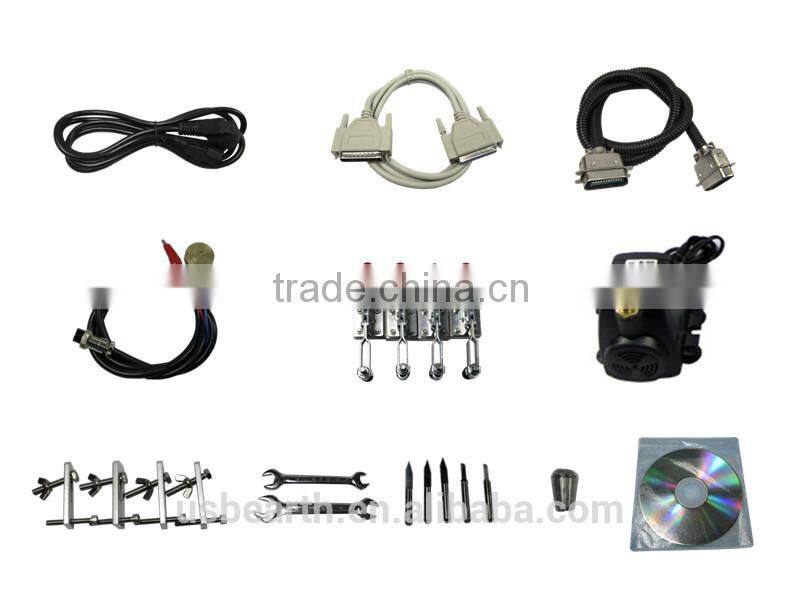

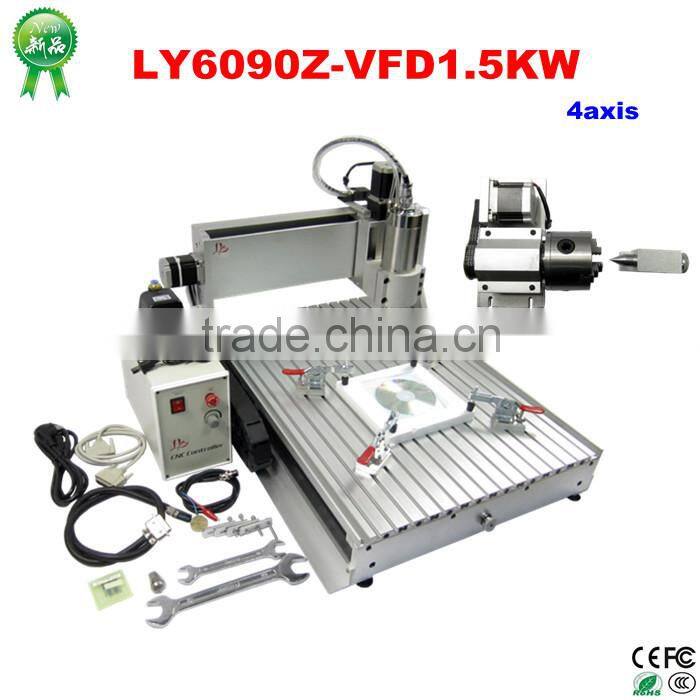

Packing list:
1× Engraving machine

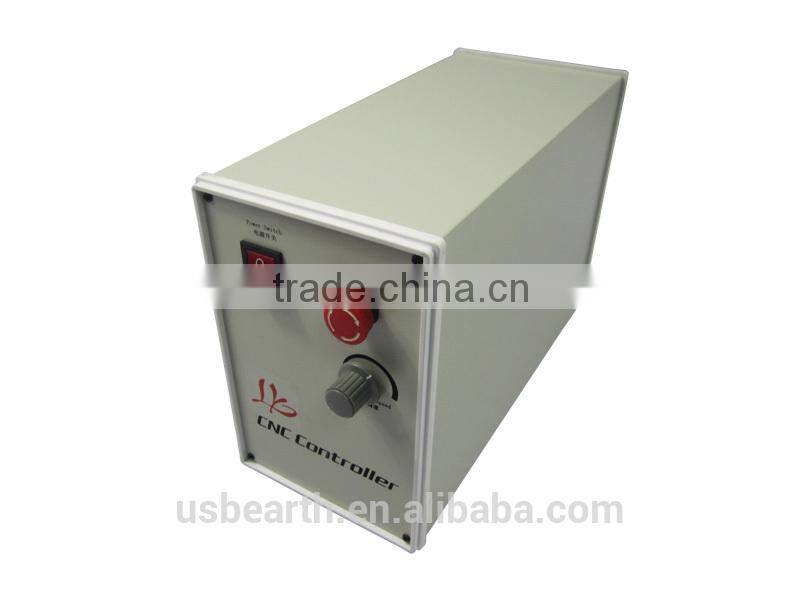

1× Control box
1× Power cable
1× control line
1× Parallel port cable 25pin
1× Tool package (include tools 5 pcs, wrench 2pcs, clamp 4pcs)
1× tool auto-checking instrument
1x water pump
1× Rotation axis
1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)
CNC Routers Working Videos :
| Buddha engrave on wood | /watch?v=_iEEWJJTNNk&feature=youtu.be |
| Dragon column | /watch?v=cra2sbTbVp8&feature=youtu.be |
| Metal plate | /watch?v=o8ruK9dQ8NM&feature=youtu.be |
| PCB board PCB | /watch?v=i-8tM9fRxso&feature=youtu.be |
| Aluminum plate | /watch?v=4mNdD3NVAOQ&feature=youtu.be |
| Buddha engrave on metal | /watch?v=hdJb7L3eETY&feature=youtu.be |

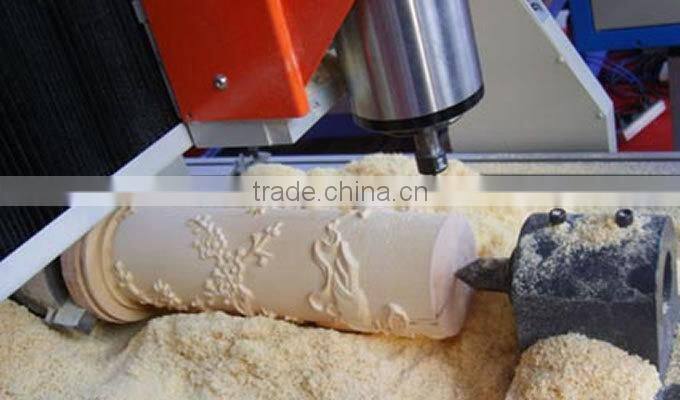

| 4th Rotary axis live show | /watch?v=ki5SGVJkc5c&feature=youtu.be |
| LY 3040 CNC 5 axis engraving | /watch?v=TU1_IuhiO8o&feature=youtu.be |
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
Business opportunities are everywhere !
We want you to be our next overseas distributors / agents !
