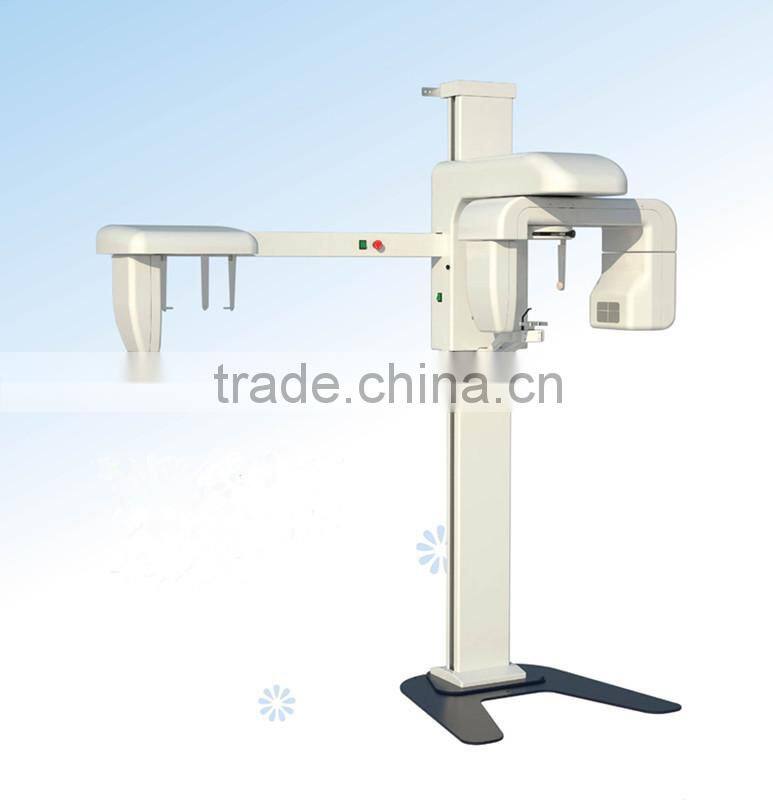

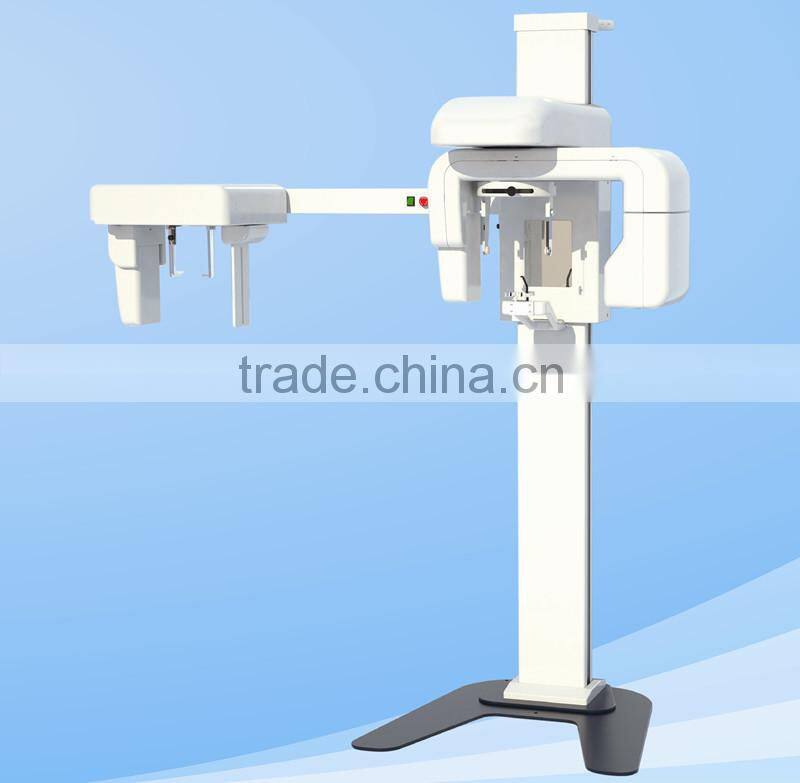

China Cheap Dental Panoramic and Cephalometric X-ray Machine

China Cheap Dental Panoramic and Cephalometric X-ray Machine photo-1
China Cheap Dental Panoramic and Cephalometric X-ray Machine photo-2

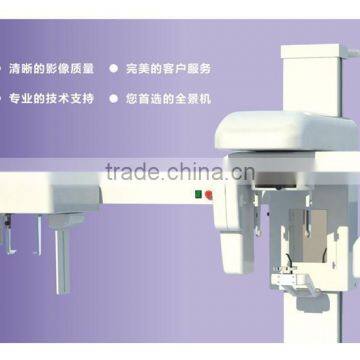

China Cheap Dental Panoramic and Cephalometric X-ray Machine photo-3
China Cheap Dental Panoramic and Cephalometric X-ray Machine photo-4
China Cheap Dental Panoramic and Cephalometric X-ray Machine photo-5
China Cheap Dental Panoramic and Cephalometric X-ray Machine photo-6
US$ 16,000 - 21,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, Oral Therapy Equipments & Accessories
Brand Name:
Makii
Model Number:
YQ-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/ Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Type Other, Oral Therapy Equipments & Accessories
Brand Name Makii
Model Number YQ-1
Place of Origin China



China Cheap Digital Dental Panoramic and

Cephalometric X-ray Machine





 China Cheap Dental Panoramic and Cephalometric X-ray Machine



Technical Specification:



Product Name

Dental High Frequency Panoramic X-ray Equipment

Tube voltage

60-88kV

Tube current

Pan: 4~12mA

Ceph: 10/12/15mA

Mode

Manual/ Auto setting

Rectification mode

High Frequency DC with 60~80kHz

Power supply

AC220V/110V 50/60Hz 2.5kVA

X-ray Tube

Toshiba D-054SB

Focal spot size

0.5mm x 0.5mm

Total filtration

>=2.5mmAI

Magnification

1.25~1.30

Exposure time

For adults: 15s

For kids: 12s

For Ceph: 4s/8s

For TMJ: 3x4s

Panoramic

Adults/ kids

TMJ mode

Quad mode

Hoisting mode

Automatic

Dimensions

1880 x 881 x 2045 (mm)

Weight

180kg







Dimension chart:



China Cheap Dental Panoramic and Cephalometric X-ray MachineChina Cheap Dental Panoramic and Cephalometric X-ray Machine







Features:

  • High Frequency achieves clear image

By using the advanced high frequency technology which the working frequency is 60-80kHz makes you have a clear image. Besides, the product is a more environmental x-ray unit with a little soft radiation.

China Cheap Dental Panoramic and Cephalometric X-ray MachineChina Cheap Dental Panoramic and Cephalometric X-ray MachineChina Cheap Dental Panoramic and Cephalometric X-ray MachineChina Cheap Dental Panoramic and Cephalometric X-ray Machine



  • By using no trajectory technology, it is appropriate for anyone with any sharp of dental arch.







  •  TMJ with quad mode



Be beneficial to the diagnose, it images only one quad mode film within open and close mouth of TMJ by programming design.







  •  Exposure time contracts within 15 second which reduce the mechnical shock and is beneficial for doctor-patient cooperation.







  • The product has left, right and middle part photographing functions and aims to reduce the patient absorbed doses.







  • The liquid crystal control panel increases the operation conveniency.







  • Auto and manual photographing mode available



The product provides two photographing mode which is automatic and manual. When auto mode, there has a sensor to detect the patients state and the photographing speed which aims to achieve a clear image and adjust the x-ray conditions continuously.







  • Patient orientation: there has three laser line to locate the patient which are middle sagittal laser, Frankfurt laser and focus slots laser.



China Cheap Dental Panoramic and Cephalometric X-ray Machine
