AURON/HEAWELL ABS BV GL DNV ISO OHSAS CE crawl tractor motor chain/ farm working tractor chain/agricultural tractor chain Quality Choice

Name: AURON/HEAWELL ABS BV GL DNV ISO OHSAS CE crawl tractor motor chain/ farm working tractor chain/agricultural tractor chain Quality Choice
Brand: AURON
Availability: InStock

FOB Price

USD $4,500 - $6,000 / Ton

1 Ton(Min.Order)

Supply Ability 20 Ton / Tons per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Type	Roller Chain
Material	Other, Alloy, Alloy	Place of Origin	Jiangsu, China
Brand Name	AURON	Model Number	OL-SPC90888931

Product Description

Short pitch precision roller chain

Size:

DIN ISO Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin Length		Inner plate depth	Plate thickness	transverse pitch	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1 Max	b1 min	d2 Max	L Max	Lc Max	h2 Max	t/T Max	Pt	Q min	Qo	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	KN	KN	Kg/Mtr
06B-1	9.25	6.35	5.72	3.28	13.15	14.1	8.20	1.30		9.9	10.4	0.41
08B-1	12.70	8.51	7.75	4.45	16.70	18.2	11.80	1.60		18.0	19.4	0.69
10B-1	15.875	10.16	9.65	5.08	19.50	20.9	14.7	1.70		22.4	27.5	0.93
12B-1	19.05	12.07	11.68	5.72	22.5	24.2	16	1.85		29.0	32.2	1.15
16B-1	25.4	15.88	17.02	8.28	36.10	37.4	21	4.15/3.1		60.0	72.8	2.71
20B-1	31.75	19.05	19.56	10.19	41.30	45.0	26.40	4.5/3.5		95.0	106.7	3.70
24B-1	38.1	25.40	25.40	14.63	53.40	57.8	33.20	6.0/4.8		160.0	178.0	7.1
28B-1	44.45	27.94	30.99	15.90	65.10	69.5	36.70	7.5/6.0		200.0	222.0	8.50
32B-1	50.8	29.21	30.99	17.81	66.0	71.0	42.0	7.0/6.0		250.0	277.5	10.25
40B-1	63.50	39.37	38.10	22.89	82.20	89.2	52.96	8.5/8.0		355.0	394.0	16.35
48B-1	76.2	48.26	5.72	29.24	99.10	107.0	63.80	12/10		560.0	621.6	25
06B-2	9.525	6.35	5.72	3.28	23.40	24.40	8.20	1.30	10.24	16.9	18.7	0.77
08B-2	12.70	8.51	7.75	4.45	31.20	32.2	11.80	1.60	13.92	32.0	38.7	1.34
10B-2	15.875	10.16	9.65	5.08	36.10	37.5	14.70	1.70	16.59	44.5	56.2	1.84
12B-2	19.05	12.07	11.68	5.72	42.0	43.6	16.0	1.85	19.46	57.8	66.1	2.31
16B-2	25.4	15.88	17.02	8.28	68.0	69.3	21.0	4.15/3.1	31.88	106.0	133.0	5.42
20B-2	31.75	19.05	19.56	10.19	77.80	81.50	26.40	4.5/3.5	36.45	170.0	211.2	7.20
24B-2	38.10	25.4	25.4	14.63	101.70	106.2	33.2	6.0/4.8	48.36	280.0	319.2	13.40
28B-2	44.45	27.94	30.99	15.90	124.60	129.1	36.7	7.5/6.0	59.56	360.0	406.8	16.60
32B-2	50.8	29.21	30.99	17.61	124.6	129.6	42.0	7.0/6.0	58.55	450.0	508.5	21.0
40B-2	63.5	39.37	38.10	22.89	154.50	161.5	52.96	8.5/8.0	72.29	630.0	711.9	32
48B-2	76.20	48.26	45.72	29.24	190.40	198.2	63.8	12/10	91.21	1000.0	1113.0	50.0
06B-3	9.525	6.35	5.72	3.28	33.50	34.6	8.2	1.30	10.24	24.9	30.1	1.16
08B-3	12.7	8.51	7.75	4.45	45.10	46.1	11.8	1.6	13.92	47.5	57.8	2.03
10B-3	15.875	10.16	9.65	5.08	52.70	54.1	14.70	1.7	16.59	66.7	84.5	2.77
12B-3	19.05	12.07	11.68	5.72	61.5	63.1	16.0	1.85	19.46	86.7	101.8	3.46
16B-3	25.4	15.88	17.02	8.28	99.8	101.2	21.0	4.15/3.1	31.88	160.0	203.7	8.13
20B-3	31.75	19.05	19.56	10.19	114.2	117.9	26.40	4.5/3.5	36.45	250.0	290.0	10.82
24B-3	38.1	25.4	25.4	14.63	150.10	154.6	33.2	6.0/4.8	48.36	425.0	493.0	20.10
28B-3	44.45	27.9	30.99	15.9	184.2	188.7	36.7	7.5/6.0	59.56	530	770.5	24.92
32B-3	50.8	29.21	30.99	17.81	183.20	188.2	42.0	7.0/6.0	58.55	670.0	770.5	31.56
40B-3	63.5	39.37	38.1	22.89	226.80	233.8	52.96	8.5/8.0	72.29	950.0	1092.5	48.1
48B-3	76.2	48.26	45.71	29.24	281.6	289.4	63.08	12/10	91.21	1500.0	1710.0	75.0

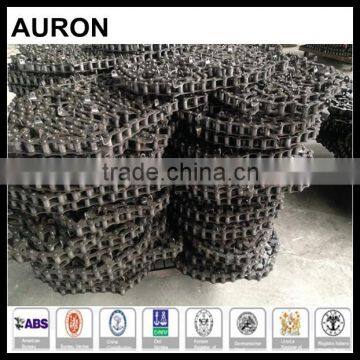

Product photos:

Certificates:

Contact details:

Email: jim(at)

Mobile: +86-13817294993

Tel: +86-21- 61470200

Name: michael
