Specifications
5.8G 600mW wireless receiver and transmitterVideo format supported: NTSC/PAL
600mW transmitter
5.8G 600mW wireless receiver and transmitter
Low power consumption
32 channel frequency
Channel database display
Channel memory function
Key feature:

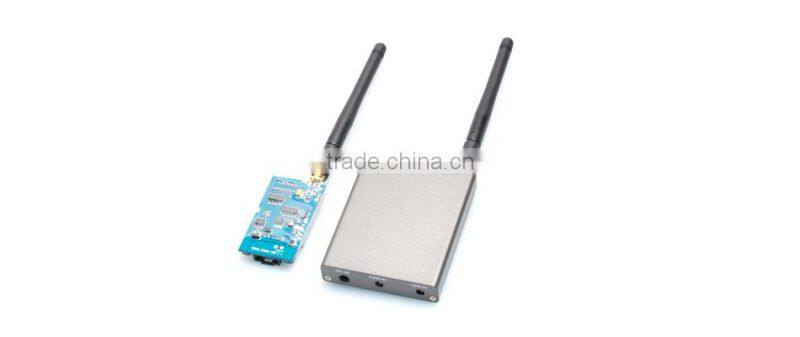

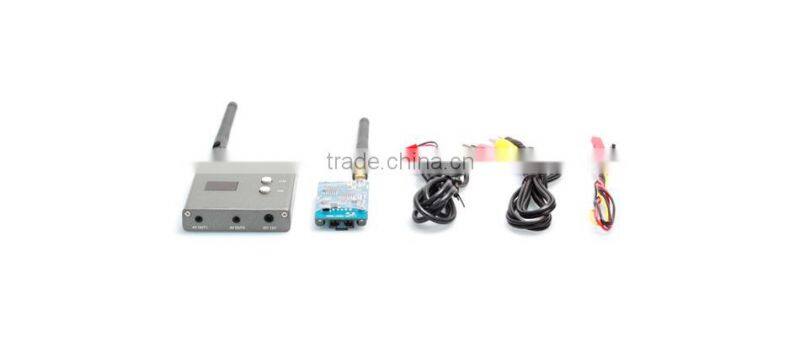

FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA - 32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compatible;
- Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
- Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
- Power off memory: Replay the very last frequency band and channel;
- Independent video and audio signal outputs;
- 600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna.
Specifications:
Video format supported: NTSC/PAL
- Antenna connection: RP-SMA, jack (module side, both TX and RX)

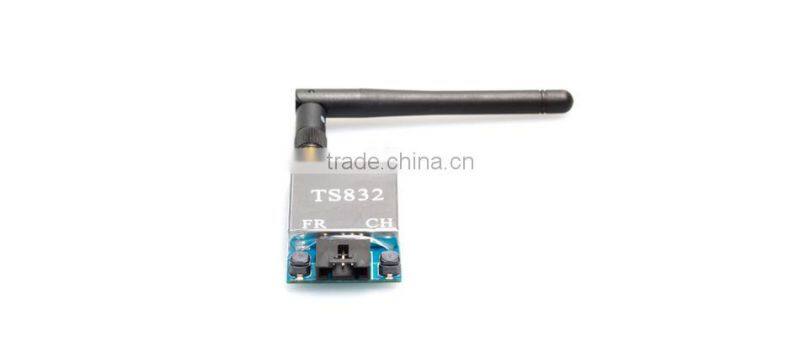

TS832:
Power input: 7.4-16V (3S Lipo suggested)
- Transmitting power: 600mA
- Antenna gain: 2db
- Working current: 220mA at 12V
- Video bandwidth: 8M
- Audio bandwidth : 6.5M
- Dimension: 54x 32x 10mm(excluding antenna)

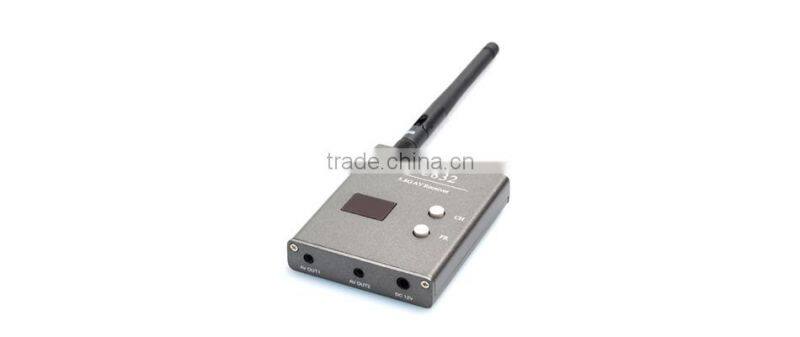

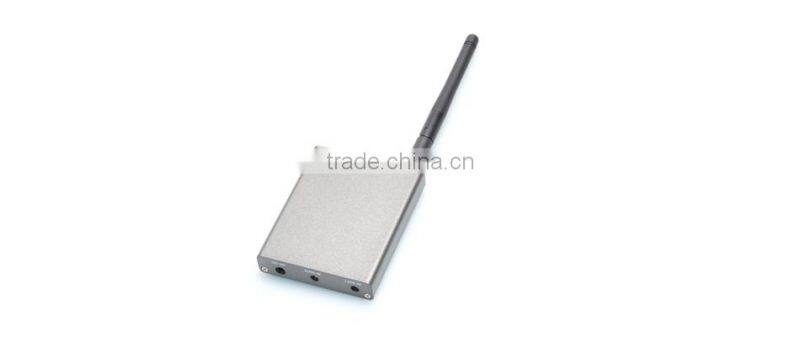

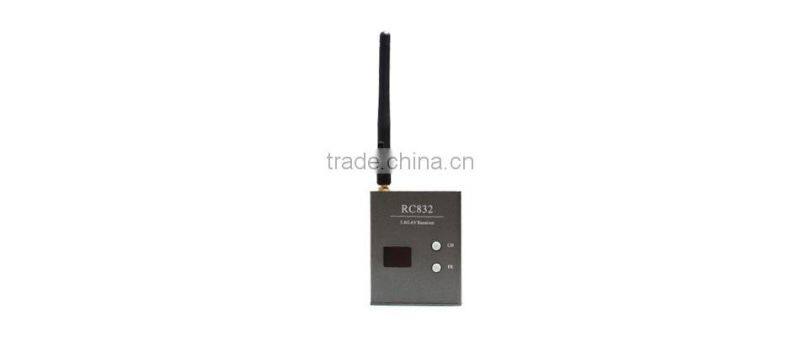

RC832:
Power input: 12V
- Working current: 200mA max
- Antenna impedance: 50ω
- Antenna gain: 2db
- Video impedance: 75ω
- Video format: NTSC/PAL auto
- Dimension: 80x 65 x15mm
