Specifications
480TV lines car waterproof cameramirror view and normal view switchable
waterproof test and shock test
170 degree
FCC
- Mirror view and normal view switchable
- Complete water-proof lens, A grade chip sets
- Following our execllent production technique and intensive QC control and test to ensure good quality.

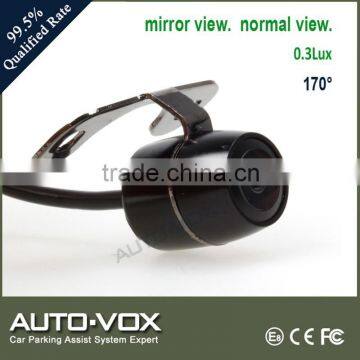

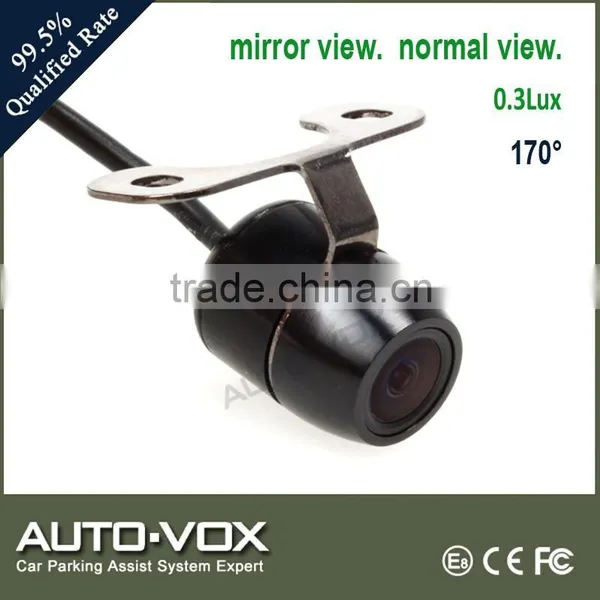

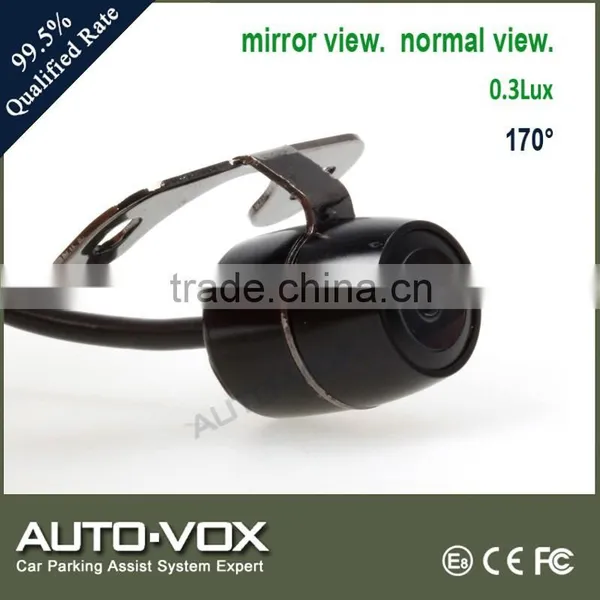

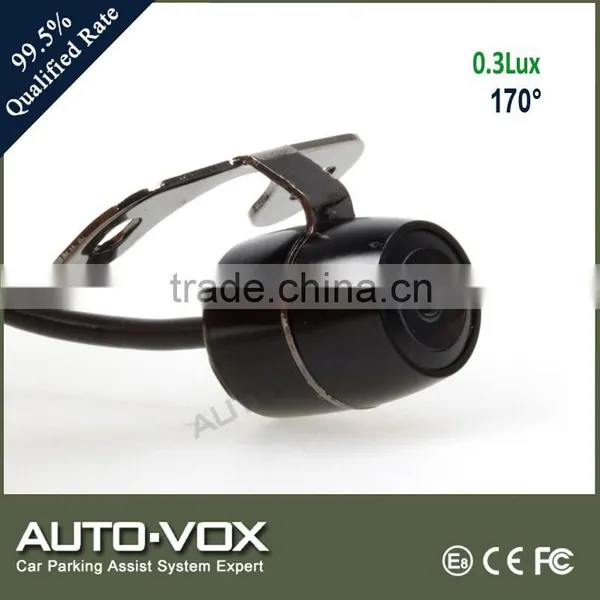

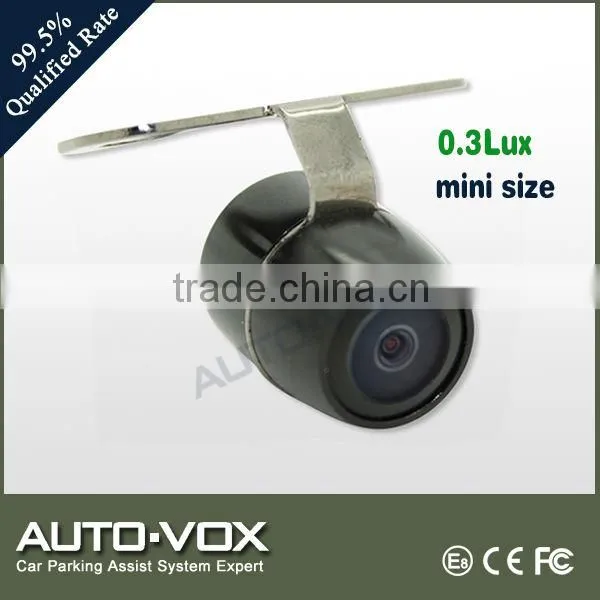

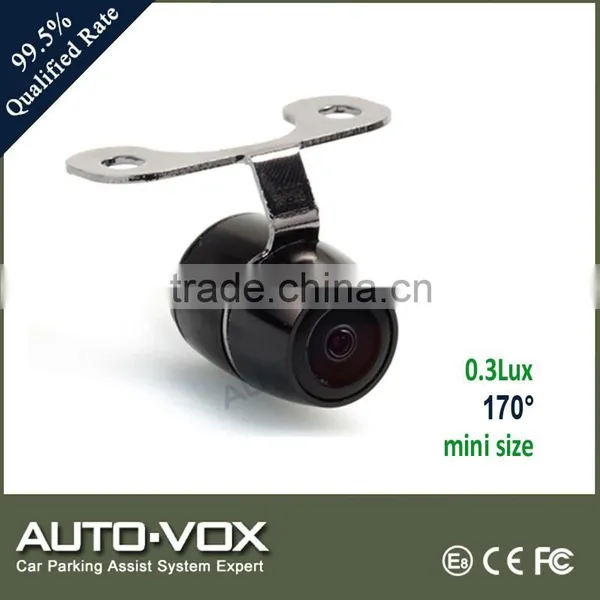

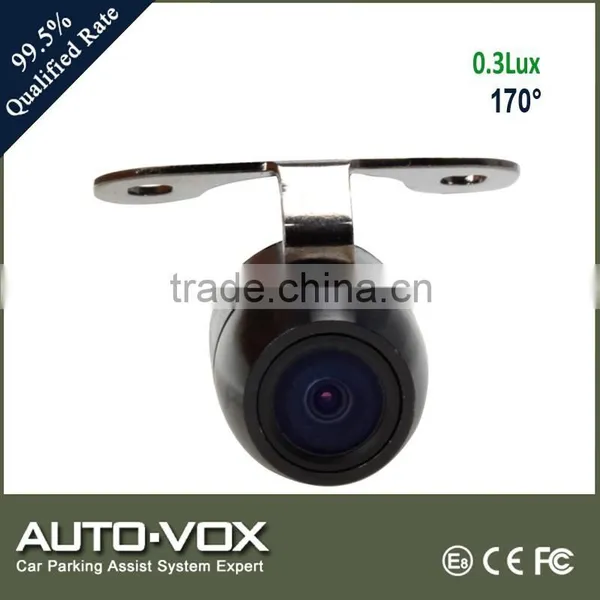

- Mini digital color waterproof camera with FCC certificate
- Adopt digital high-resolution imaging process: 480TV lines
- Extra-low illumination of 0.3 Lux for clear night vision
- Automatic white balance function
- Viewing angle:170 degree
- Water-proof,shock-proof and anti-jamming functions
- Mini size: diameter:18.5mm, length:22mm
- Pin nailed installation, hiding mounting
1. Wire Connection
When the camera is to be used for rear view with a monitor to assist with reversing.
2. Technology Data
Image device | 1/4-inch colour |
TV system | PAL or NTSC |
Resolution | 480 TV lines |
Electric Shutter | PAL:625Lines.25Field /sec NTSC :720Lines.25Field/sec |
Effective pixels | PAL: 720X 576 NTSC: 720X 480 |
Minimum illumination | 0.3Lux |
Viewing angle | 170 degrees (diagonal) |
S/N ratio | >48dB (AGC-OFF) |
Video output | RCA connector, 1.0vp-p, 75ohm |
Current consumption | ≤120mA |
Power supply | DC8V-12V |
Operating temperature | -30 to 65 degrees centigrade, RH95% Max. |
Storage temperature | -35 to 70 degrees centigrade, RH95% Max. |
Other items | automatic white balance, AGC and BLC |
Water-proof | Yes, to IP68 standard
|
3. Mirror view and normal view is switchable
Mirror view and normal view is switchable via a step switch on the power box.
Mirror view is switched on when delivery. You can switch it to normal view subject to your specific needs.
Mirror view is usually used for rear view while normal view is usually used for front view.

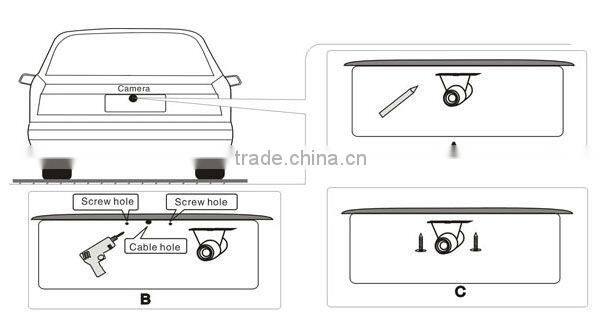

4. Camera Installation
A:Choose the proper position for screw holes and cable hole. Use a marker to mark points for the holes.
B:Use a good quality drill bit to drill the holes at the marked points.
C:Route the cable through the cable hole to the rear compartment and secure the camera with a screws. It is suggested to seal the holes with glass cement.
