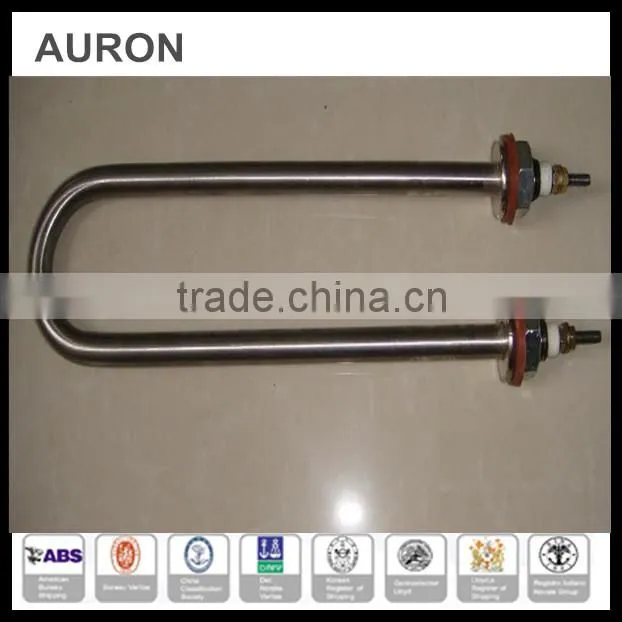

Help CenterAURON/HEATWELL Electric Instant Heating Element/electric Twisted Heating Element/electric Bending Heating Element
Related Products
-
AURON OEM Finned u Shape Heaters With High Efficiency/Alibabba Recommend 12V Dc Solar Water Heater/Built-in Thermocouple CartriUS$ 0.25 - 50MOQ: 100 Pieces -
AURON Square Fin Tube/ Fin Pipe Type/finned u Shape HeatersUS$ 0.25 - 50MOQ: 100 Pieces
-
AURON Copper Clad Steel Wire/Stainless Steel Atomizer Solide Oil/replaceable Heating WireUS$ 0.25 - 50MOQ: 100 Pieces
-
AURON/HEAWELL ABS BV GL DNV ISO ROHS CE Stainless Steel 304L Electric Portable Heater/SS 304L Portable Heater/SS 304L HeaterUS$ 0.8 - 6MOQ: 1 Ton
-
AURON/HEAWELL ABS BV GL DNV ISO ROHS CE Stainless Steel 316L Electric Teapot Heater/SS 316L Kettle Heater/SS 316L Circle HeaterUS$ 0.8 - 6MOQ: 1 Ton
Detail Information
|
Dimeter of tube |
6.5mm
|
8.0mm
|
8.5mm
|
9.0mm
|
10mm |
11mm |
12mm |
14mm |
16mm |
Material |
AISI304* |
AISI321* |
AISI316 |
AISI310S |
INCOLOY840 |
||||
Length of tube |
From 200mm to 6500mm, The length will be manufacture it according to custom’s require |
||||||||
Length of wire |
From 200mm to 2000mm, The length will be manufacture it according to custom’s require |
||||||||
Color |
Color of tube is yellowish*or Dark-green or Black |
||||||||
Application

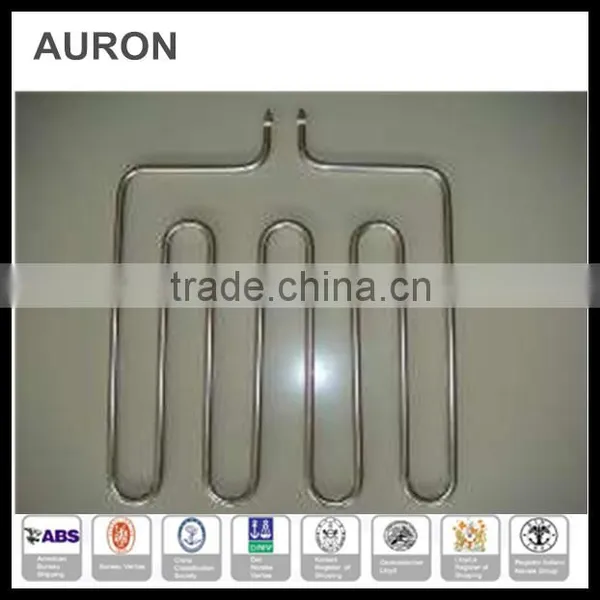

Stainless steel heating element for Sauna is used for Sauna, Steam table,water heater and similar home products.

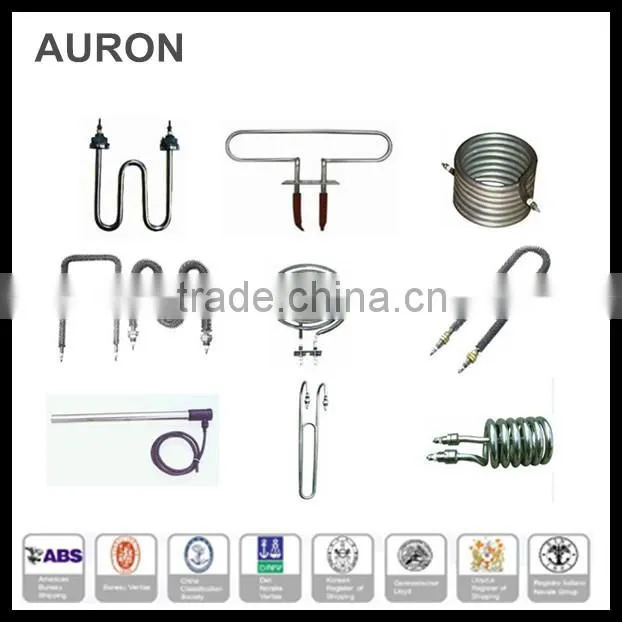

Heating element are produced using Incoloy840, stainless steel 304, 321, 310S, sheath materials
and also there is huge variety of selection of termination styles available.Defrost heater are custom designed in a various
shapes to address client’s requirements.
Feature:
1.We offer standard as well as customized models
2.We offer different tube diameters like 6.5 mm, 8 mm, 8.5mm,9mm,10.6mm,11mm& 12mm, 14mm,16mm and so on.
3.We offer different sheath materials. It can be availed in different materials like Incoloy 840, SS 304, SS 321, SS 316, Aluminum
4. Ambient temperature: -60°C ~ +800°C
5. High- voltage in Test : 16,00V/ 5S
6. Firmness of connection end: ≥50N
7. Protective oxide coated element wire for long-term heater life
8. Can be manufactured to proper length
Technology data:
1.HI-POT TEST: 1600V/S on normal temperature
2.Insulation resistance:500MΩ
3.Leakage current to be 0.75ma max While energized at rated voltage
4.Power tolerance:+5%,-10%
5.Voltage:12V-440V
6.Diameter range:4.5mm to 20mm
7.Heating resistance wire:0Cr25Al5,Cr20Ni80 or as custom'es requirement
8.Air tubular heater wattage : ≥ 1w-5w/cm2
