AURON high quality electric tube defrost heater/hot selling electric heaters with silicone israel/freezer defrost heater tube
- 5000 Piece / Pieces per Month
- SHANGHAI / QINGDAO
- T/T
- Heater Core Heater Welding Gun Heater Element
- Industrial Diesel Heater /Agricultural Vegetable Planting/Aquaculture Industry Heater
- Preheating equipment for hardbandig welding
- Heater Core Heater Welding Gun Heater Element
- DL-3 model electric air heater with upper outlet and lower inlet
- DL-2 model electric air heater with Left-Right Circulation
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | AURON | Model Number: | JGM3-220/0.5 |
Certification: | JIS, AISI, ASTM, GB, DIN, EN | Type: | Other, Welded |
Product Description
Industrial Finned Air Heater
Industrial Finned Air Heater are constructed like basic tubular elements with the addition of continuous spiral fins, 4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster heat transfer to air, resulting in lower surface element temperatures.
Electric tube defrost heater feature:
1.We offer standard as well as customized models
2.We offer different tube diameters like 6 mm, 8 mm, 11 mm, 12.5mm, 16mm & 18mm
3.We offer different sheath materials. It can be availed in different materials like Incoloy 800, SS 304, SS 321, SS 316, Copper & Titanium
4.We offer various shapes as customer demand:immersion heater with flange or screw, explosion proof heater.
5.Various terminal options are available
Electric tube defrost heater application:
Drying------Heat Treating------Annealing------Load Banks------Curing

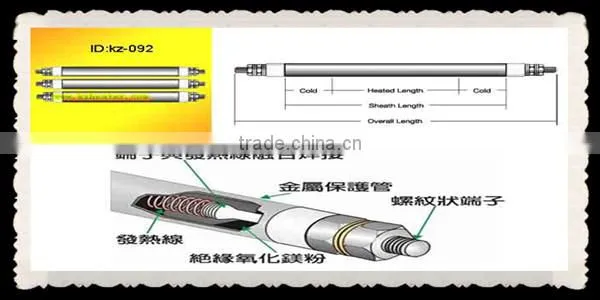

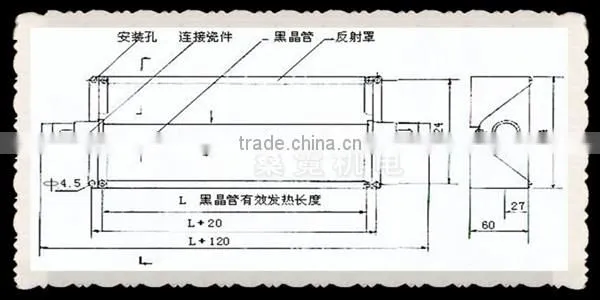

Electric tube defrost heater drawing for reference:

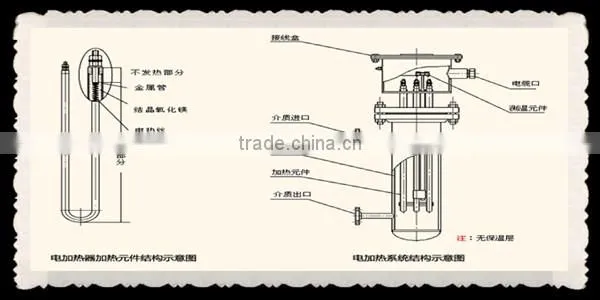

Electric tube defrost heater structure of tubular heating element:
high quality electric tube defrost heater HI-POT TEST | 1500V/S min cold condition |
high quality electric tube defrost heater insulation resistance | 20M Ω min |
high quality electric tube defrost heater leakage current | 0.75ma max |
high quality electric tube defrost heater power tolerance | +5%,-10% |
high quality electric tube defrost heater voltage | 12V-440V |
high quality electric tube defrost heater diameter range | 1mm to 40mm |
high quality electric tube defrost heater resistance wire | 0Cr25Al5,Cr20Ni80 or as custom's requirement |
high quality electric tube defrost heater heater wattage | ≥ 2w-10w/cm2 |
high quality electric tube defrost heater wattage | ≥ 6w-20w/cm2 |
high quality electric tube defrost heater dies and fin tubular heater | ≥ 8W-15w/cm2 |
Quality and service:
------------------------------------------------------------------------------------------------------------------
Related product of capillary pipe
SALES NETWORK:
The best route to our company
Need help? Need the details drawing? still did not find what you need? And need discount price or need know the cheap shipping cost?
Please leave the message!I will contact you in 12 hours.
Contact us :
Skype: star yan
Mobile: 0086-18317107609
Tel: 0086-61470226
Fax: 0086-61470226
Web: http://jsoulong.en.china.cn
