Cable Bridge
The type of the bridge structure can be divided into: is there a hole tray, no hole tray,
ladder and packaged trays.(1) with a hole tray is made with a hole in the bottom and
sides of the trough of components, or parts made of whole steel plate punching bending
after.(2) no hole tray is made of the bottom and the sides or the parts made of whole
steel plate groove.(3) the ladder is made of the side with several rail ladder parts.
(4) packaged tray is suitable for engineering site in any combination of perforated parts
bolted splice or connection tray components.Bridge is used for laying cable, low voltage
cable and control cable to share the same pallet or ladder, should choose the middle
clapboard ladder or tray.

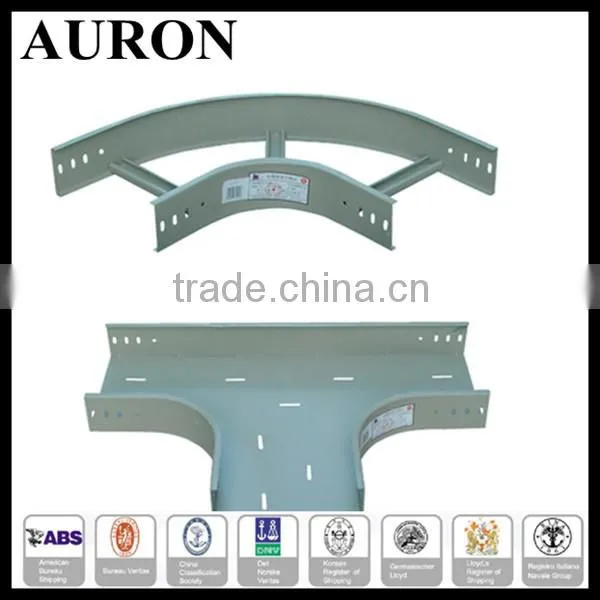

Tray type cable bridge is the petroleum, chemical industry, light industry, TV, telecom
etc. One of the most widely used.It has a light weight and load big, beautiful modelling,
the advantages of simple structure, convenient installation.It applies to the installation
of power cable, is used to control the laying of the cable.Tray type cable tray its
surface treatment is divided into plating and painting two kinds, in heavy corrosion
environment can special anticorrosive processing.Tray type cable tray with cover,
need to match when ordering shield can indicate or in accordance with the shield model
orders, all of its parts and tray type, slot type bridge.
Material:
Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L
Size:
| Type | H(mm) | B(mm) | L1(mm) | L2(mm) | Weight | ||
| OL-LS-T-01-03 | -102 | 100 | 200 | 600 | 1000 | 18.27 | 19.77 |
| -103 | 300 | 700 | 1100 | 27.33 | 29.39 | ||
| -104 | 400 | 800 | 1200 | 38.47 | 39.74 | ||
| -105 | 500 | 900 | 1300 | 43.61 | 48.23 | ||
| 106 | 600 | 1000 | 1400 | 48.72 | 57.44 | ||
| -108 | 800 | 1200 | 1600 | 58.99 | 75.48 | ||
| OL-LS-P-01-03 | 152 | 150 | 200 | 700 | 1200 | 31.06 | 33.26 |
| 153 | 300 | 800 | 1300 | 45.40 | 48.75 | ||
| 154 | 400 | 900 | 1400 | 51.89 | 54.92 | ||
| 155 | 500 | 1000 | 1500 | 57.31 | 64.76 | ||
| 156 | 600 | 1100 | 1600 | 62.72 | 75.49 | ||
| 158 | 800 | 1300 | 1800 | 73.55 | 98.43 | ||
| OL-LS-C-01-03 | 202 | 200 | 200 | 700 | 1200 | 38.88 | 39.29 |
| 203 | 300 | 800 | 1300 | 52.79 | 56.03 | ||
| 204 | 400 | 900 | 1400 | 63.58 | 64.62 | ||
| 205 | 500 | 1000 | 1500 | 69.38 | 75.33 | ||
| 206 | 600 | 1100 | 1600 | 73.11 | 85.69 | ||
| 208 | 800 | 1300 | 1800 | 86.76 | 109.61 | ||
