Specifications
1.Self-diagnosis function2.speaking language is programmable
3.Roof mounting display
4.Automatic flip up/down

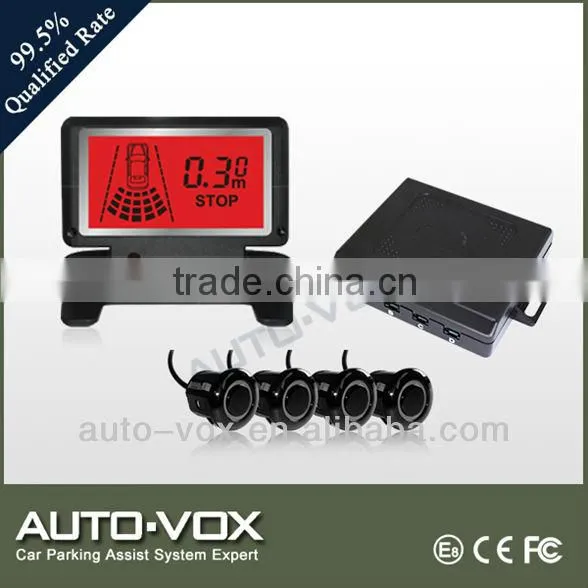

Good manufacturer of rear view parking sensor with automatic display with and 4 sensors
· Automatic flip up/down when revers gear is engaged/disengaged
· Digital readout in LCD display indicates distance data of obstacle
· Voice/beep/mute selectable,speaking language is programmable
· Self-diagnosis function
· 3 colors LCD backlight auto-convert suject to detection range
· On dash mounting display
1. Technical data
Supply voltage |
10.5V ~15V (12V nominal) |
Current consumption |
200 mA max |
Working temperature |
-30°C ~60°C |
Storage temperature |
-35°C ~85°C |
Obstacle detection |
Max 150 cm from the bumper (post dia. 80 mm) |
Reliability over time: |
satisfies the strictest automotive standards |
2. Display
3. Signal
Obstacle distance |
Distance category |
Beep sound alert |
Voice alert |
LCD display / Colour |
1.60 ~ 2.50m |
Safety |
No sound |
No voice |
1.6 ~ 2.5m / green |
1.10~1.59 m |
Safety |
Din... |
Din… |
1.1~1.59 m /green |
0.80~1.09 m |
Caution |
Din Din… |
Attention |
0.8~1.09 m / yellow |
0.50~0.79 m |
Caution |
Din Din Din… |
Warning |
0.5~ 0.79 m / yellow |
<=0.49 m |
Hazard |
Din Din Din Din… |
Stop |
0.3~ 0.49m Stop / red |
<0.30 m |
Hazard |
Din Din Din Din… |
Stop |
“P-” “Stop” / red |
4. Sensor

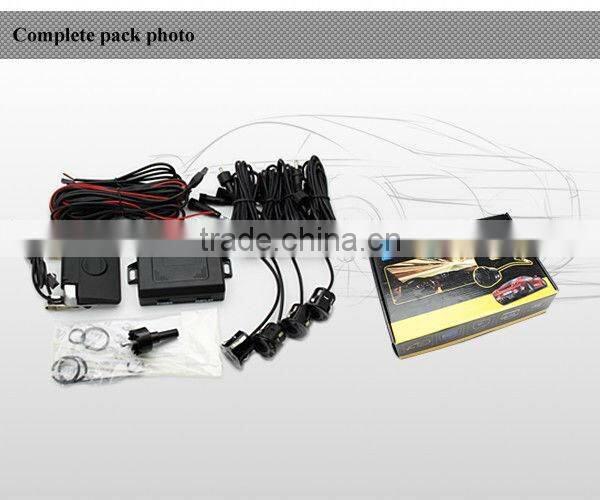

5. Pack contains:
1 * command module 4 * ultrasonic sensors 1 * acoustic indicator
1 * power supply cable 1 * hole borer 1 * accessory kit
1 * instruction manual
Send Inquiry to This Supplier
