Specifications
3 stages warning by different beeping frequency3 colors LED
High brightness
E-mark
Car rear roof LED parking sensor with E-mark certificate
· Automatic activation when powered and reverse gear is selected
· Digital readout in LED indicates distance & orientation of obstacle
· LED display mounting on rear roof of vehicle & reflecting on rearview mirror
· Integrated beeper for immediate alert
· 3 stages warning by different beeping frequency and 3 colors LED
· Power supply: DC10.5V-15V(12V normal)
1. Technical data
Supply voltage |
10.5V ~15V (12V nominal) |
Current consumption |
200 mA max |
Working temperature |
-30°C ~ 70°C |
Storage temperature |
-35°C ~ 75°C |
Obstacle detection |
From 150 cm from the bumper (post dia. 80 mm) |
Reliability over time |
Satisfies the strictest automotive standards |
2. Sensor
3. Signal
Obstacle distance |
Distance category |
Beep |
LCD |
150 ~ 110 cm |
Safety |
BI.....BI......BI........ |
1.5m ~1.1m |
100 ~ 60 cm |
Caution |
BI...BI...BI.....BI...BI...BI.... |
1.0m ~0.6m |
50 ~ 30 cm |
Hazard |
BI.BI.BI.BI.BI.BI.BI…. |
0.5m ~0.3m |
Less than 30 cm |
Hazard |
BI.BI.BI.BI.BI.BI.BI…. |
P_ |
4. Installation check
In order to perform the check your vehicle must be in a flat, smooth area free
of obstacles within a radius of 3 meters from the rear and sides of the vehicle.
With the hand brake on and the engine switched off, put the car into reverse
gear and turn the ignition key to “ON”, so that the reverse light switched on.
5. Pack contains:

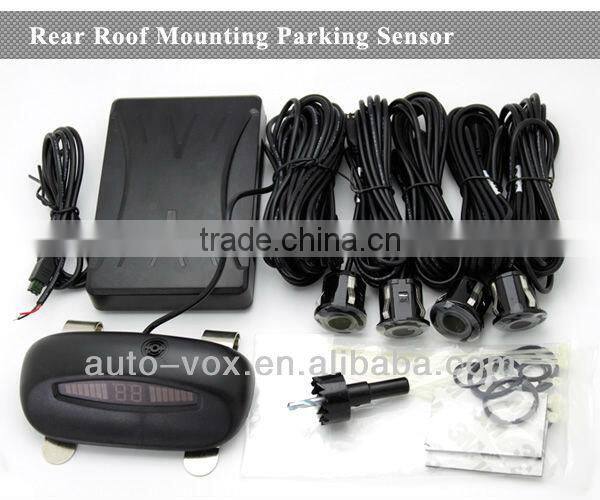

1 * command module 4 * ultrasonic sensors 1 * acoustic indicator
1 * power supply cable 1 * hole borer 1 * accessory kit
1 * instruction manual
