Specifications
4 sensors for full rear coverageSlim LED display, can be placed nicely on car dashboard.
Automatically boot when you reverse

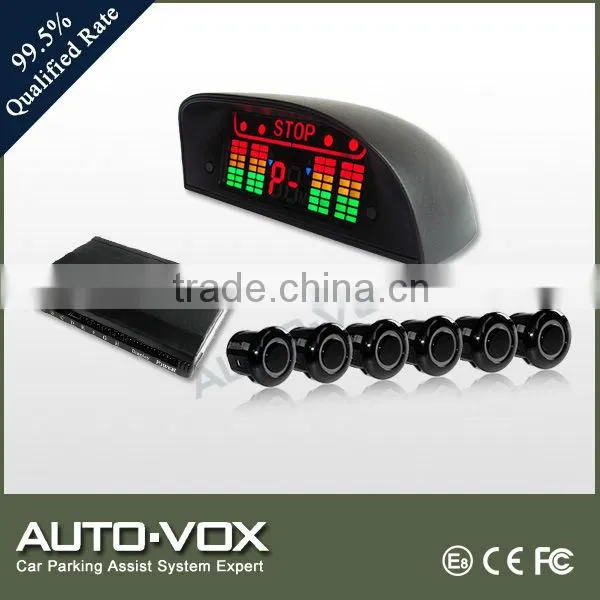

Slim LED Display parking Lot Parking Space Vehicle Detector Sensor System
- Self-diagnosis function
- Automatic activation when power up
- Integrated beeper for immediate alert
- Front 2 and rear 4 sensors for full coverage detection
- High brightness LED indicates distance & orientation of obstacl
- After distance setting, it is compatible with tow bar or back tyre
- 3 stages warning by different beeping frequency and 3 colors LED
1. Display
2. Distance adjusting mode:
Distance adjusting is used to take account tow bars or spare tyres fitted to the rear of some vehicles.
Press and hold the right button for 5 seconds. The LED display shows 0.0m.
Press the right button once to increase the adjustment by 0.1m increments after each press, up to a
maximum adjustment distance of 0.5m. After 5 seconds without a button press, the number on the
display disappears, and the system returns to detection mode automatically.
As an example, if the distance adjustment has been set at 0.1m, the display will show 0.9m whilst the
distance between the vehicle and the object detected is 1.0m.
The display distance = Real distance detected – distance adjustment setting pre-programmed.
3. Technical data
Supply voltage |
10.5V ~15V (12V normal) |
Current consumption |
200 mA max |
Working temperature |
-30°C ~ 70°C |
Storage temperature |
-35°C ~ 75°C |
Obstacle detection |
From 150 cm from the bumper (post dia. 80 mm) |
Reliability over time |
Satisfies the strictest automotive standards |
4. Signals
Obstacle distance |
Distance category |
Beep |
LED |
150 ~ 110 cm |
Safety |
Din……Din……Din….. |
1.5m ~1.1m |
100 ~ 60 cm |
Cautious |
Din…Din…Din…Din… |
1.0m ~0.6m |
50 ~ 30 cm |
Hazard |
Din..Din..Din..Din..Din..Din.. |
0.5m ~0.3m |
Less than 30 cm |
Hazard |
Din..Din..Din..Din..Din..Din.. |
P_ |
5. Pack contains
1 * command module 6 * ultrasonic sensors 1 * instruction manual
1 * power supply cable 1 * hole borer 1 * accessory kit
1 * acoustic indicator/LED monitor
