Auto Sensor Parking Reverse Kit

Specifications

1.VFD display can be rotated by 360 degree
2.Voice malfunction alert
3.Displaying in-car temperature
4.Voice/Beep/Mute mode

• Automatic activation when the reverse gear is chosen
• Digital readout in colour VFD display indicates distance of obstacle
• Car icon in VFD display indicate orientation of obstacles obviously
• Integrated beeper for immediate alert and 3 stages warning
• 3 stages voice alert in English: Attention / warning / stop
• Self-diagnosis function (voice malfunction alert )
• Displaying in-car temperature
• VFD display can be circumrotated by 360°for optimal view of user.
• Voice alert / Beep alert / Mute mode, System On / System Off, swichable







1. Technical data





Supply voltage	10.5V ~15V (12V nominal)
Current consumption	200 mA max
Working temperature	-30°C ~ 70°C
Storage temperature	-35°C ~ 75°C
Obstacle detection	From 150 cm from the bumper (post dia. 80 mm)
Reliability over time	Satisfies the strictest automotive standards

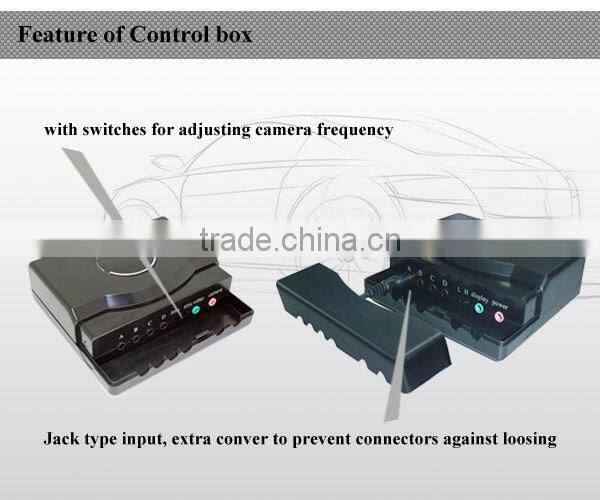

2. Control box

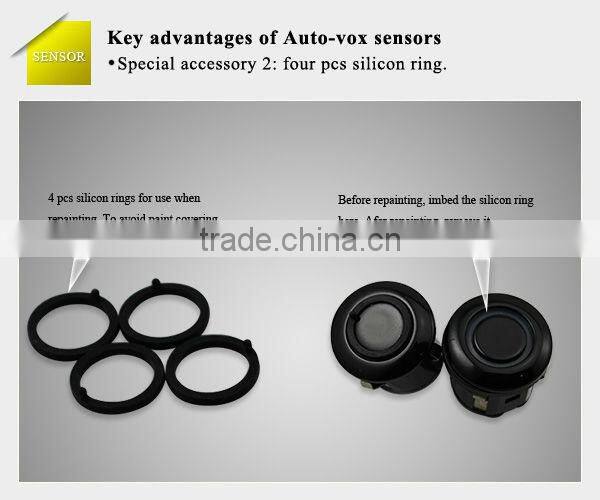

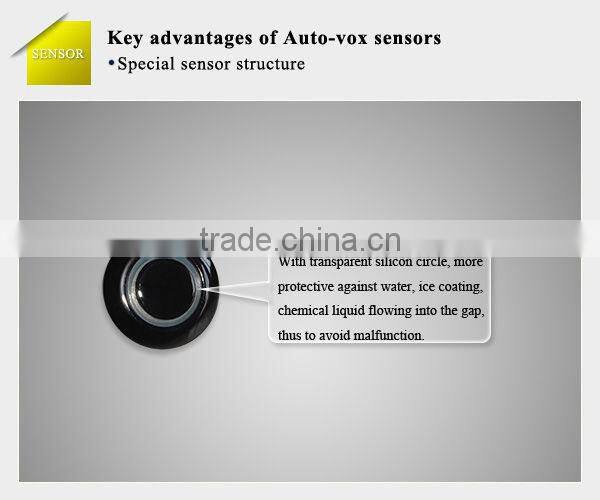

3. Sensor







4. Signals





Obstacle distance	Distance category	Beep or Voice alert	Monitor Display
200 ~ 160 cm	Safety	No any alert	2.0m ~ 1.6m
150~110 cm	Safety	Din…Din…Din…	1.5m ~ 1.1 m
100~70 cm	Caution	Attention	1.0m ~ 0.7m
60~40 cm	Caution	Warning	0.6m ~ 0.4 m
30 cm	Hazard	Stop	0.3m
30 cm below	Hazard	Stop	STOP

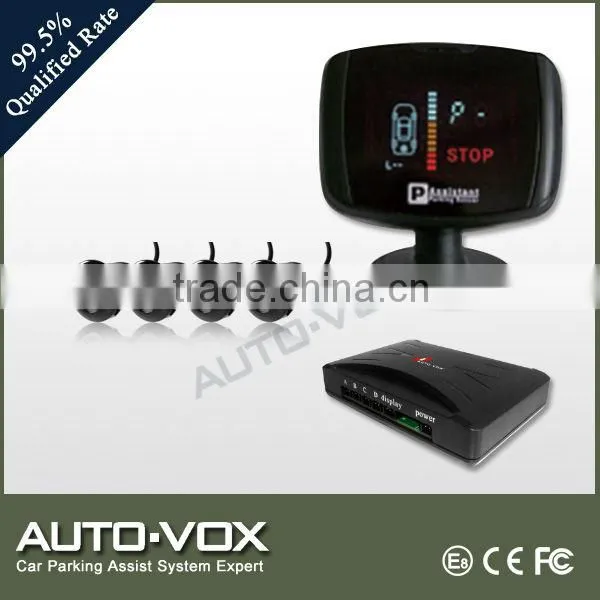

5. Pack contains





1 * command module            4 * ultrasonic sensors         1 * instruction manual



1 * power supply cable          1 * hole borer                    1 * accessory kit



1 * acoustic indicator - VFD monitor
