Specifications
Wireless 3.5" LCD pipe Inspection camera 5.5mmSupport 32GB TF Card
1m, 2m, 3m cable optional
pipe inspection camera

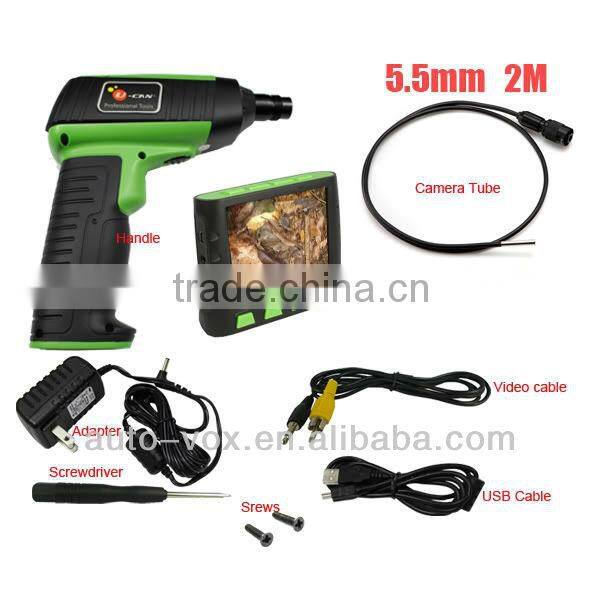

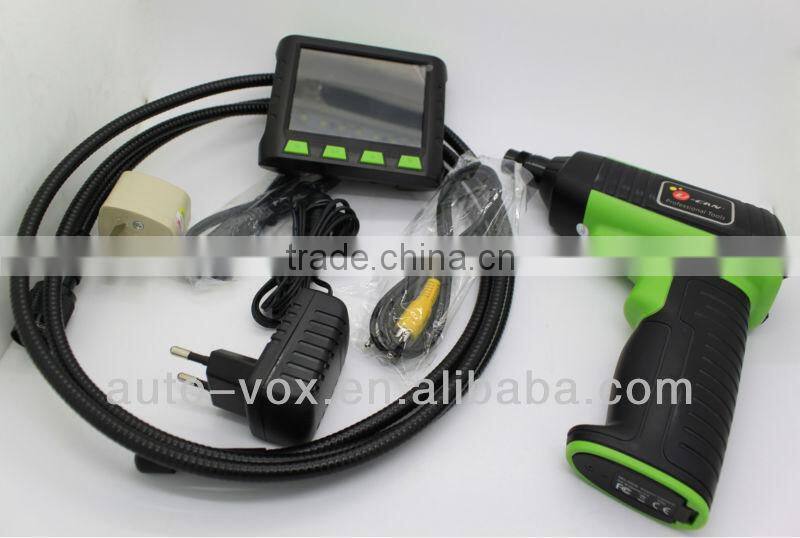

Wireless 3.5" LCD pipe Inspection camera 5.5mm
Support 32GB TF Card
1m, 2m, 3m cable optional
We have other length of tube(1M,2M,3M) with this unit, please visit our store to buy.
Features |
|
1.Wireless transmission |
2.3.5" LCD Color Monitor |
3.Flexible tube camera for easily inspecting hard-to-reach areas |
4.5.5mm diameter camera with LED lights for small and dark space areas |
5.Waterproof camera with level IP67 |
6.Video record & photo snap functions |
7.Supports micro SD card up to 32G |
8.Image Orientation adjustable |
9.Light weight and handheld design |
Specifiction |
|
Camera |
Monitor |
Image sensor:1/13-inch CMOS |
LCD screen :3.5"TFT LCD |
Pixel pitch :0.219*0.219 mm |
Screen Resolution:320*240 |
Transmission frequency :2468MHz |
Video System :PAL/NTSC |
Minimum illumination :0 Lux |
Transmission frequency :2468MHz |
Modulation Mode :FM |
Exterior supply voltage :6V DC |
Bandwidth :18 MHz |
Video output level:0.9-1.3v @75ohm |
Unobstructed Effective Range:10m |
Consumption current(MAX):680 mA |
Power Supply :4 AA batteries |
Receiving sensitivity ≤-85dBm |
Waterproof level :IP67 |
Capacity of Micro SD card :Up to 32G |

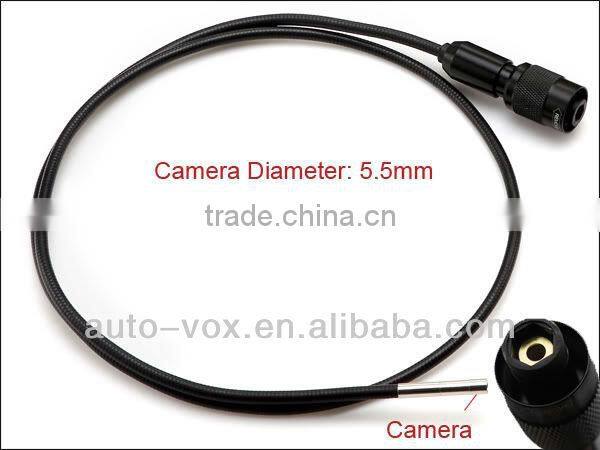

Camera Diameter :5.5mm |
Dimension :110*75*35mm |
Operation Humidity :-10°C~+50°C/-14°F~+122°F |
Operation Temperature :15-85%RH |
Note:
* Actual transmission range may vary according to the weather, location, interference and building constructions.
* All the specifications are subject to minor change without prior notice.
Diverse Applications: Vehicle, Boat, Aircraft Repair & Maintenance, Pipe Review & Repair
See Hard-to-Reach Places, Industrial Inspection, Tight Area Surveillance
Take Photo and Record Video for later Analysis , Science Research
