Specifications
3.5" Wireless TFT LCD Inspection Camera Borescope EndoscopeSupport 32GB TF Card

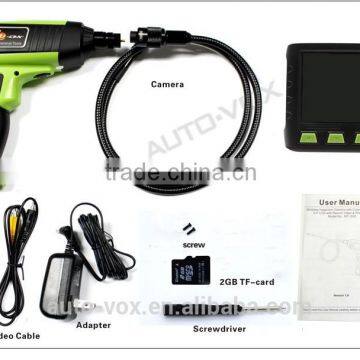

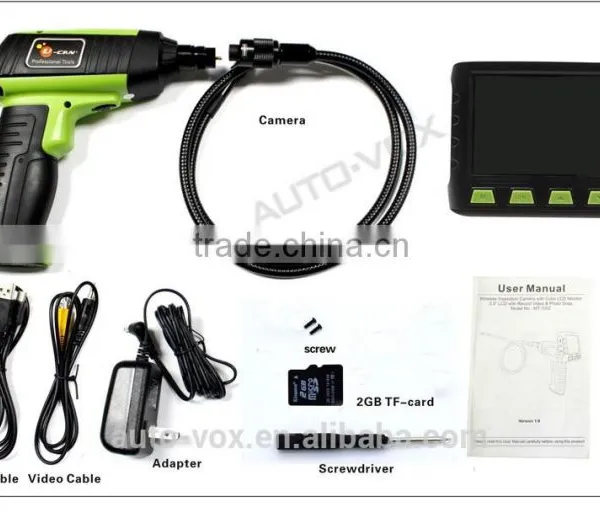

1M, 2M, 3M cable optional

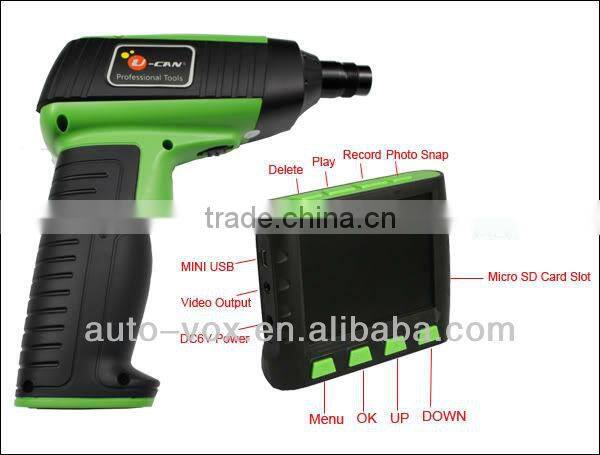

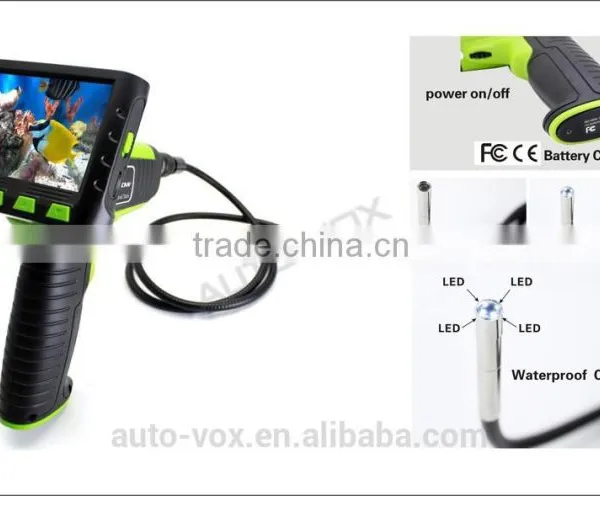

3.5" Wireless TFT LCD Inspection Camera Borescope Endoscope
-Support 32GB TF Card

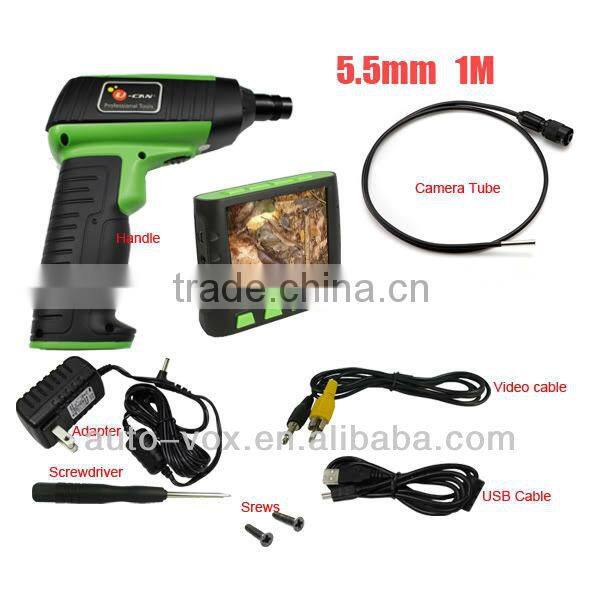

We have other length of tube(1M,2M,3M) with this unit, please visit our store to buy.

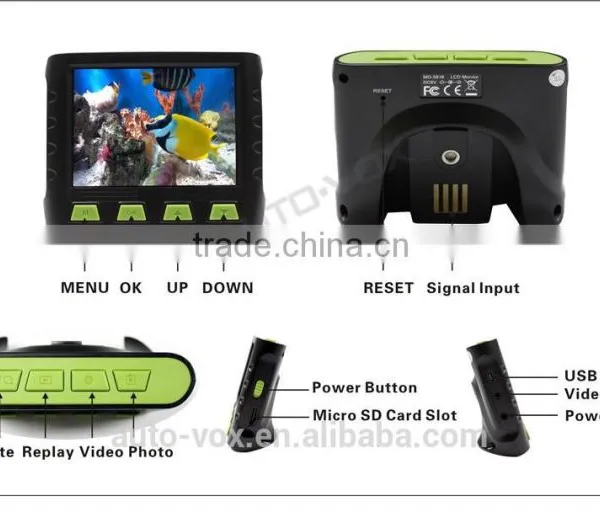

Features |
|
1.Wireless transmission |

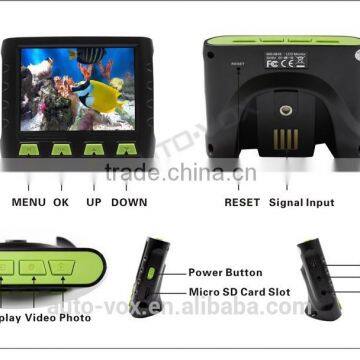

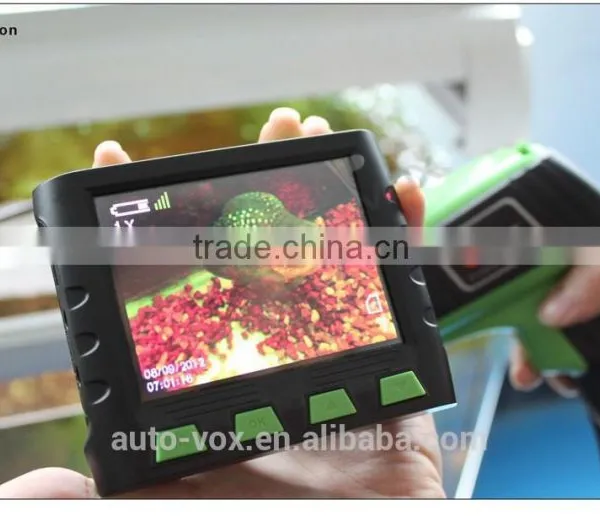

2.3.5" LCD Color Monitor |
3.Flexible tube camera for easily inspecting hard-to-reach areas |

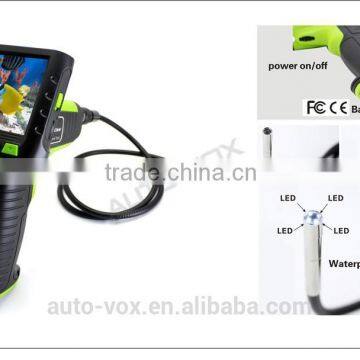

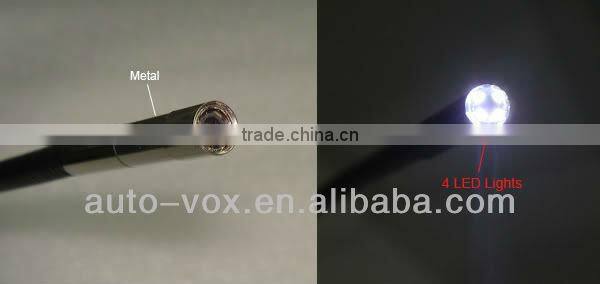

4.5.5mm diameter camera with LED lights for small and dark space areas |
5.Waterproof camera with level IP67 |
6.Video record & photo snap functions |
7.Supports micro SD card up to 32G |
8.Image Orientation adjustable |
9.Light weight and handheld design |
Specifiction |
|
Camera |

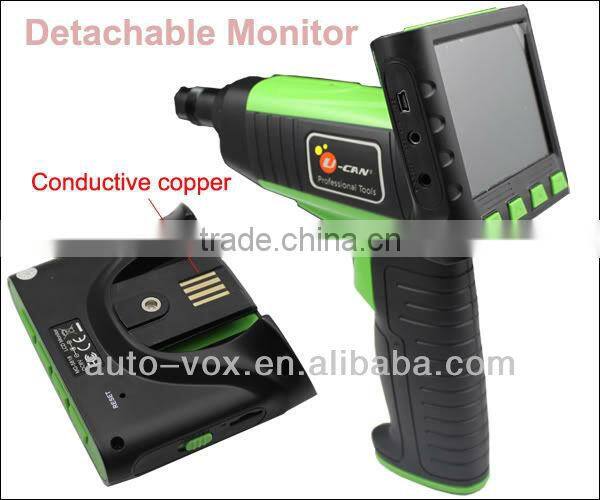

Monitor |
Image sensor:1/13-inch CMOS |

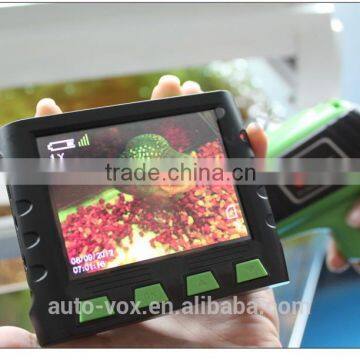

LCD screen :3.5"TFT LCD |
Pixel pitch :0.219*0.219 mm |
Screen Resolution:320*240 |
Transmission frequency :2468MHz |
Video System :PAL/NTSC |
Minimum illumination :0 Lux |
Transmission frequency :2468MHz |
Modulation Mode :FM |
Exterior supply voltage :6V DC |
Bandwidth :18 MHz |
Video output level:0.9-1.3v @75ohm |
Unobstructed Effective Range:10m |
Consumption current(MAX):680 mA |
Power Supply :4 AA batteries |
Receiving sensitivity ≤-85dBm |
Waterproof level :IP67 |
Capacity of Micro SD card :Up to 32G |

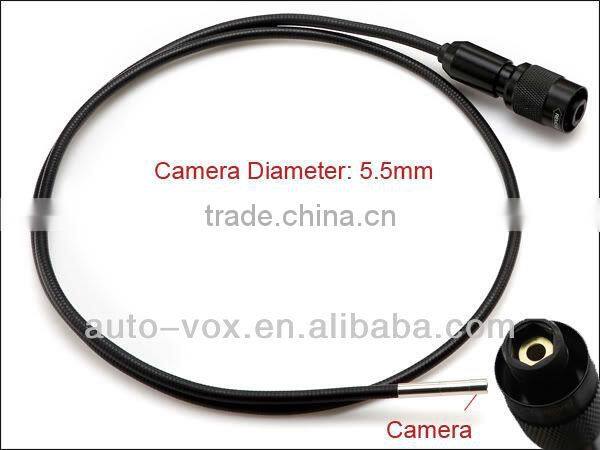

Camera Diameter :5.5mm |
Dimension :110*75*35mm |
Operation Humidity :-10°C~+50°C/-14°F~+122°F |
Operation Temperature :15-85%RH |
Note:
* Actual transmission range may vary according to the weather, location, interference and building constructions.
* All the specifications are subject to minor change without prior notice.

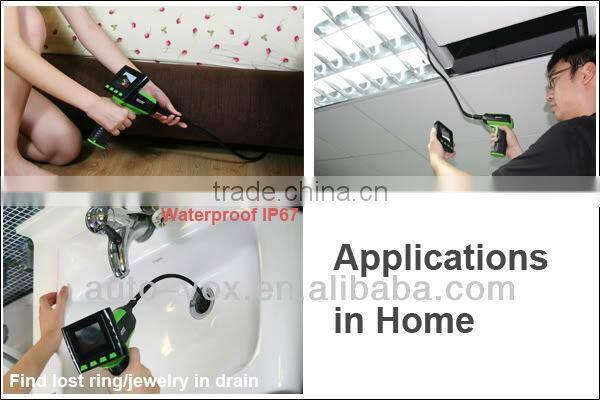

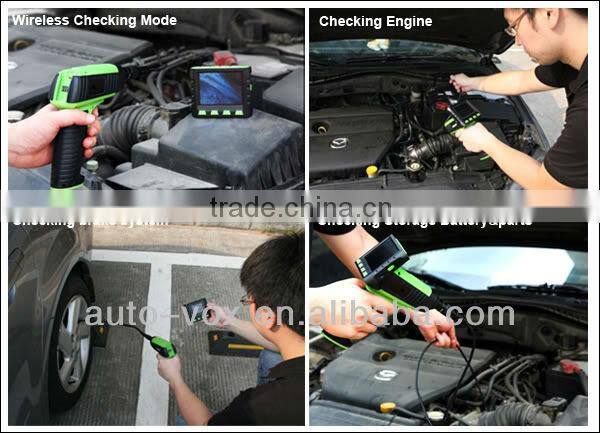

Diverse Applications: Vehicle, Boat, Aircraft Repair & Maintenance, Pipe Review & Repair

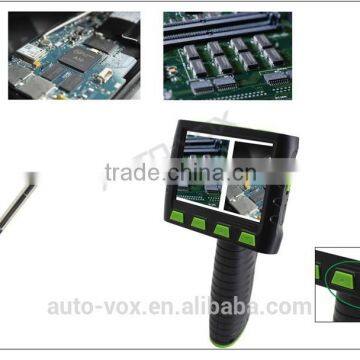

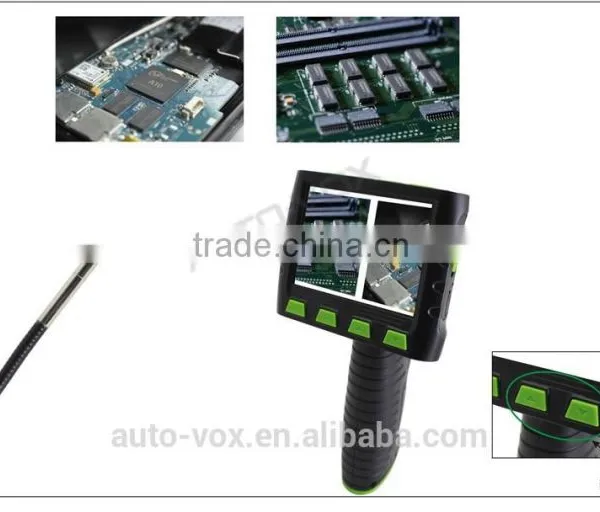

See Hard-to-Reach Places, Industrial Inspection, Tight Area Surveillance
Take Photo and Record Video for later Analysis , Science Research
Trade shows
About us:
As a well established manufacturer of car parking sensor, car rear view system, for over 6 years, we have gained trust from our customers world wide,owing to our beliefs in “Quality First”, “Customer Focus” and “Value-priced”. In recent years, we are devoting to cutting-edge products such as mirror monitor with GPS/DVR, intelligent parking assist system, CANBUS car alarm and etc.. To satisfy our customer best and increase our growth, we are constantly making innovative products. Cooperate with us, we serve you for your convenience, your concern and your content!

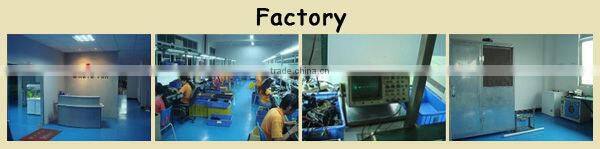

Our Factory
