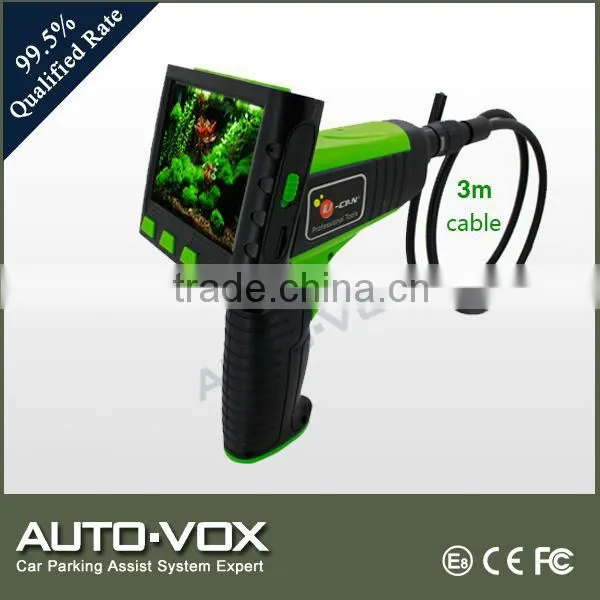

9mm INSPECTION CAMERA Video Borescope Endoscope Pipeline Drain Pipe New

Specifications

9mm INSPECTION CAMERA Video Borescope Endoscope Pipeline Drain Pipe New
Waterproof IP67
View angle 60 degree

9mm INSPECTION CAMERA Video Borescope Endoscope Pipeline Drain Pipe New
Waterproof IP67
View angle 60 degree



Key Features:

* Wireless transmission

* 3.5" LCD Color Monitor

* Flexible tube camera for easily inspecting hard-to-reach areas

* Camera with LED lights for dark area inspection

* Waterproof camera for underwater areas inspection

* Video record & photo snap functions

* Support micro SD card up to 32G

* Image Orientation adjustable

* Light weight and handheld design

* Use useful accessories: hook, mirror and magnet (for 9mm diameter only)

* Extension tube optional





Specifications:



General characteristics:

Power supply: 4AA battery

Transmission Frequency: 2.4GHz

Operating temperature: -10°C-+60°C/-14°F~+122°F

Operating humidity: 30%~90%HR

Total weight: 550g

Camera:

Image sensor: CMOS, 1/13-inch

Horizontal view angle: 60 degree

Camera pixels:300,000 for 9mm, 450,000 for 5.5mm

Minimum illumination: 0 Lux (LED lights on)

Unobstructed effective range: 20-70mm

Water proof: Ip67

Bandwidth: 18 MHz

Camera diameter: 5.5mm/9mm

Monitor:

LCD type: 3.5lnch TFT

Resolution: 320X240mm

Video system: NTSC/PAL

Receiving sensitivity: ≤-85dBm
