Specifications
1, Model:HYQ-600,HYQ-800,HYQ-810,HYQ-9002,Used: weld HDPE/LDPE geomembrane or all thermal-fused material such as PE,PVC,EVA,PP
GEOMEMBRANES WELDING MACHINE
This series of welding machine is excellent in performance and easy for operating, with high welding speed and good
work quality
It can weld geomembrane of different thickness and are applicable for welding of all thermal-fused material such as PE, PVC, HDPE, EVA, PP and the like. This series of welding machine is excellent in
performance and easy for operating, with high welding speed and good work quality.
It is extensively used in engineering projects such as express highways, tunnels, reservoirs, waterproof of construction
and so on.
Welding machine--HYQ-800
Technical parameters
Modle:HYQ-800
Voltage (V):220V
Frequency (Hz):50Hz
Power (P): 750W
Welding speed (V):0.5-5m/min
Heating temperature (T): 0-450°C
Thickness of material to be welded: 0.2mm-1.5mm
Overlap width: 100mm
Welding width:12.5mm×2, interior cavity 12mm
Seam strength: ≥85% base material (tensile resistant in shear direction) ,complete machine
Weight:5Kg
Insulation class: class II
Welding machine--HYQ-900
Technical parameters
Modle:HYQ-900
Output Voltage:220V
Frequency:50Hz
Power:1800W
Welding speed:0.4~5m/min
4The temperature of Heating up:0~450°C
The thickness of welding material:1mm~4mm(Single membrane thickness)
Welding width:14mm×2 Interior Cavity :16mm
Welding intention≥85%Maternity material(Resistance to the direction of cutting)
Joint width:120mm
Machine body weight:13kg

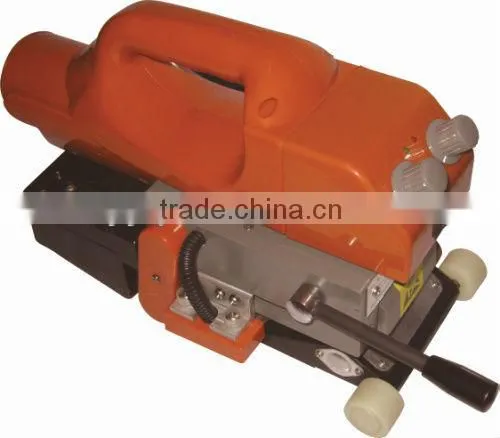

please check the photo as the below:
No.1 HYQ-600
No.2 HYQ-800
No.3 HYQ-900
