RF connector N male right angle crimp type for rg59, n flange bulkhead RF connector N male right angle crimp type for rg59, and RF connector N male right angle crimp type for rg59 n flange bulkhead connectormanufactuer -- Jiangsu Xixia Communications

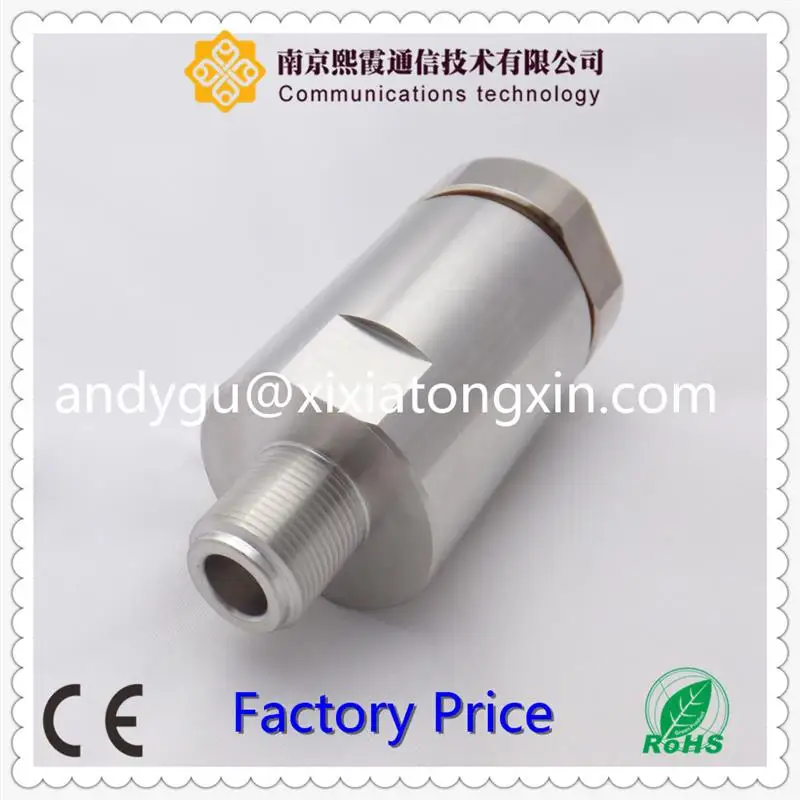

The photo of RF connector N male right angle crimp type for rg59:

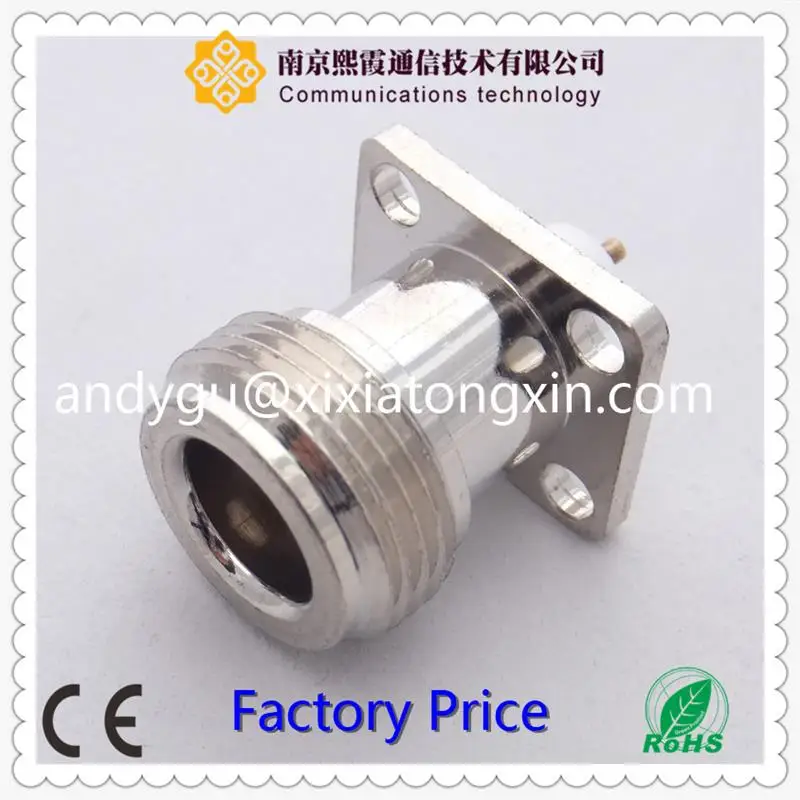

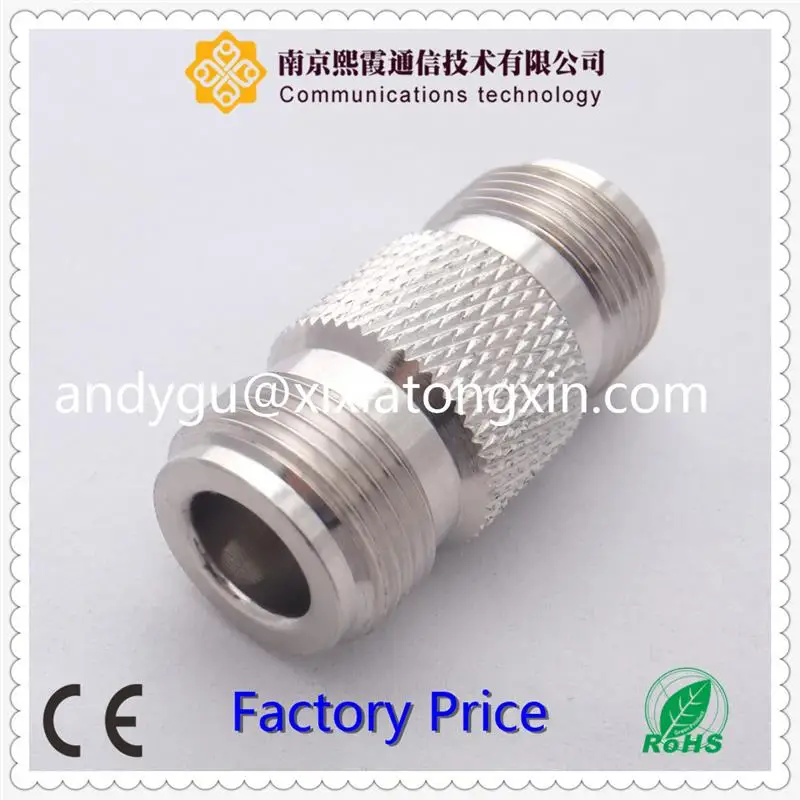

More photos of n flange bulkhead RF connector N male right angle crimp type for rg59 and RF connector N male right angle crimp type for rg59 n flange bulkhead connector:
RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
- We focus on coaxial assemblies
- Our custom RF cable assemblies are built-in and shipped worldwide
- RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
- RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
- RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
- If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
Interface
| According to | IEC60169-16 |
Electrical
| 1 | Characteristic Impedance | 50ohm |
| 2 | Frequency Range | DC-6GHz |
| 3 | VSWR | 1.15 |
| 4 | Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| 5 | Dielectric Resistance | ≥5000MΩ |
| 6 | Contact Resistance | Outer Contact≤0.4mΩ ;Center Contact≤1.0mΩ |
| 7 | Insertion Loss | ≤0.1dB |
Mechanical
| 1 | Durability | Mating cycles ≥500 |
Material and plating
|
Description |
Material | Plating |
| 1 | Body | Brass | Ag |
| 2 | Insulator | PTFE | – |
| 3 | Center conductor | Brass | Au |
| 4 | Other | Brass | Ni |
Environmental
| 1 | Temperature Range | -40℃~+80℃ |
1. CNC machines, advanced test equipment
2. All products are suit for ROHS.
3. ISO14001 certificate, ISO9001 certificate
About us:
Xixia communications is a famous enterprise in R&D, production and sales of RF coaxial connectors, surge arresters, cable assemblies (Jumper cables) and antenna feeder clamps, leaky cable clamps. Our products are widely used in the field of mobile communications, like China Mobile, China Unicom GSM, CDMA, 4G TD/LTE base stations, microwave communication devices and rail transit communication network construction.
The company adopts the advanced systems management of ISO9001 system control, "5S" on-site management, materials management system to protect the company's product quality and ensure the production operations.
We are confident that we are best manufactory you can trust in China, should you have any enquires, pls feel free to contact us.
Application:
Packaging
Normal packing: 1pc per inner packaging, 10pcs per carton, bulk packaging or Individual packing requirement is acceptable.
Shipping
1. By Sea: Delivery from Shanghai seaport
2. By Air: Delivery from Shanghai airport
2. By Express: Post by DHL, EMS, UPS, TNT, etc.
Metalworking workshop
RF Connector Assembly Workshop
Jumper Cable Workshop
High-end Jumpers and Cables workshop
Electrial Facility
Agilent 20GHz Network Analyzer Third-order Intermodulation Analyzer
Environmental Facility
Salt-spray Tester High-Low temperature test Chamber
QUALITY IS OUR CULTURE!
Question 1: Are you a manufacturer or a trading company?
Answer: ♣ We are a manufacturer of RF Connector and Cable Assembly.
Question 2: How can I get some samples?
Answer: ♣ We are honored to offer you samples for free, but the new clients are expected to pay the express charges and the charges will be deducted from the payment of future formal orders.
Question 3: Can your company do OEM business and put my logo onto the products?
Answer: ♣ Yes. We can do OEM business and put your logo onto the products. 80% of our oversea business is OEM.
Question 4: What is your MOQ of this product?
Answer: ♣ We do not have MOQ requirement for customers.
Question 5: What os your Delivery Time after advance payment is received?
Answer: ♣ 1000-10000pcs: 5-7 days
10000-50000pcs: 7-9 days
50000-100000pcs: 10-13 days
We also have N/DIN/SMA/BNC/TNC and so on Conenctor and Adapter. For the details,please
talk with me online or send us an inquiry. We will come back to you within 2 hours.
Thanks
