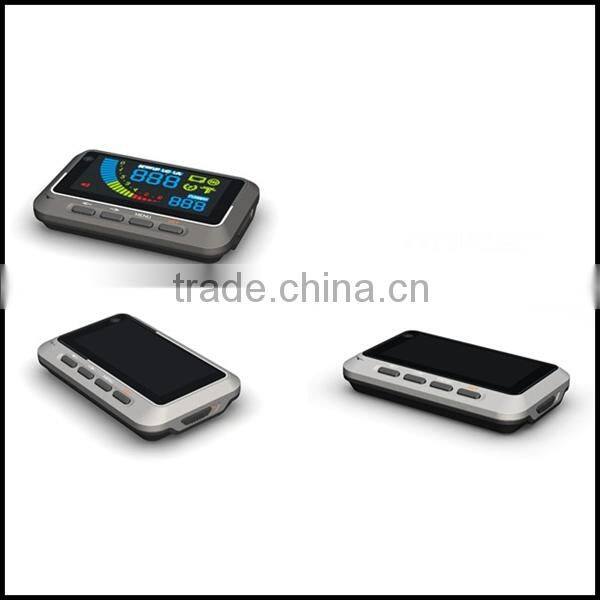

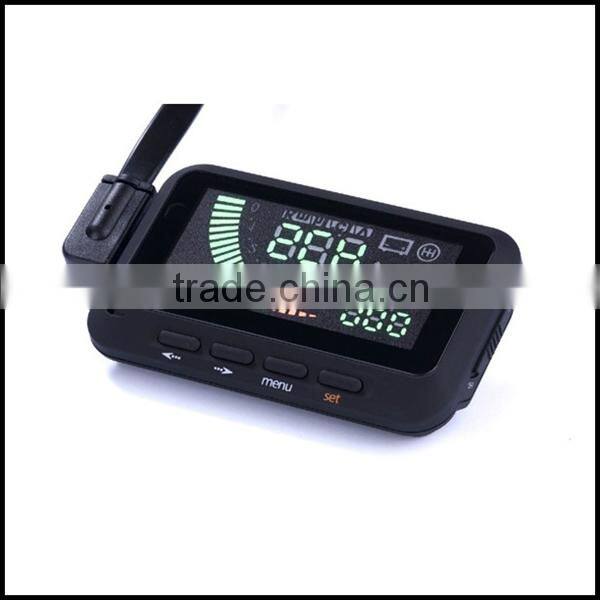

Help CenterCar HUD Vehicle Head Up Display OBDII Over Speeding Warning
Related Products
-
LED Car HUD Head Up Display With OBD2 Interface Plug & Play Car Speeding Warn System Lcd W01NegotiableMOQ: 10 Pieces -
1080P Full HD DV Super Nightshot With Flashlight DVNegotiableMOQ: 10 Pieces
-
Smallest 1080P Helmet Camera Full HD Waterproof Sport Outdoor Action Camera Mini DV CamNegotiableMOQ: 1 Piece
-
720P Diving Camera With MaskNegotiableMOQ: 10 Pieces
-
HD 1080p Sunglasses Camera With Wide AngleNegotiableMOQ: 1 Piece
Specifications
Head up display HUD2.4 inch big size display
Apply for all car with OBDII
Vehicle fault diagnosis function
speed display

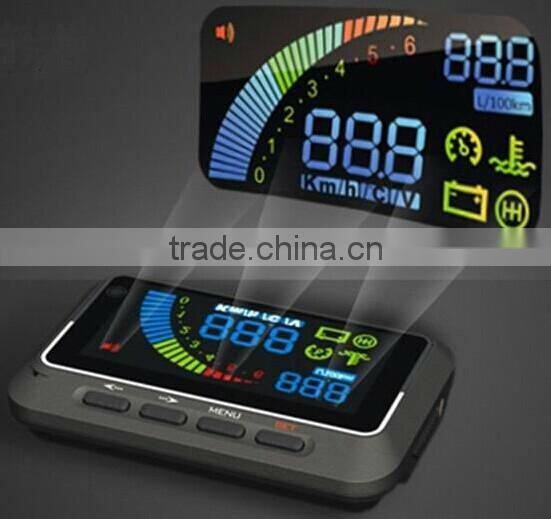

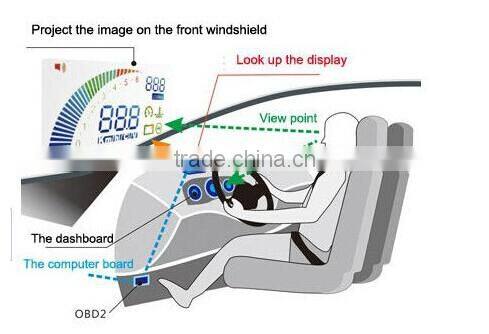

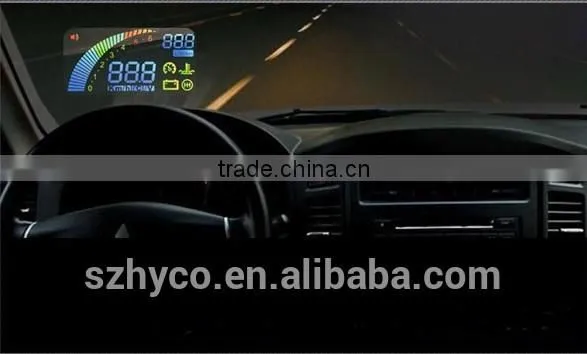

Car HUD Vehicle Head Up Functions:
Car HUD Vehicle Head Up could display speed, engine revolving speed, speed alarm, water temperature, immediate 100 kilometers / instantaneous fuel consumption, battery voltage, unit of kilometer, buzzer mark, shift reminding.
Car HUD Vehicle Head Up compatible with automobile with OBD II connector

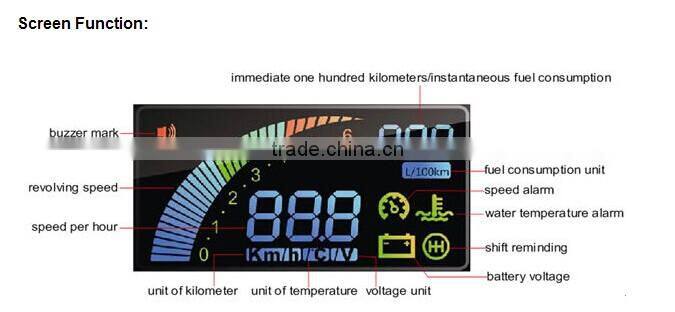

Functions of the screen:
1. Speed: Number indicates the current speed.
2. Rotation speed: indicates the rotating status of the engine and the scale measured represents the speed reached.
3. Water temperature: When the temperature reaches 115 degree centigrade, alarm will be given automatically with alarm light turned on.
4. Tips for shifting gear: It will indicate to gear up to save fuel when the engine speed and car speed come to a certain ratio.
5. Tips for over speed: It will flicker and alarm when exceeding the speed limit set up before.
6. Immediate one hundred kilometers/instantaneous fuel consumption:Display fuel consumption of one hundred kilometers when there is speed, in L/100km.
7. Unit of kilometer: In the international system of units, kilometer/hour is commonly used, in km/h.
8. Battery voltage: when the battery voltage is less than/reaches 12v, the caution light will light up to remind.
9. Buzzer mark: press the switch button can turn on or turn off the sound of the buzzer
Specification:
1. Goods Accessories: Host ODB data line reflection paster host fixed pad specification
2. Display Type: Digital
3. Baby for : All conform to the second generation of vehicle automatic diagnosis system(OBD II )models
4. Product Size: 90mm x 57mm x 15mm
5. Product Weight: 54g
6. Environment Temperature: ~40c+80cAtmospheric pressure86-106kpa
7. Alarm sound level: >>=30db
8. Working Voltage: 9v~16vdc(12vdc/70mA)
