cheap china product multiple carbide slitting saw
| D | H | d | T |
| 12 | 0.1-3.0 | 5,6 | 10-20 |
| 15 | 0.1-3.0 | 5,6 | 10-20 |
| 20 | 0.1-5.0 | 5,6 | 10-60 |
| 25 | 0.1-5.0 | 5,6,8 | 10-60 |
| 30 | 0.1-5.0 | 5,6,10 | 10-60 |
| 35 | 0.2-5.0 | 6,8,10,12 | 10-60 |
| 40 | 0.2-5.0 | 8,10,12,12.7,13,16 | 10-100 |
| 45 | 0.3-6.0 | 10,12,12.7,13,16 | 10-100 |
| 50 | 0.3-6.0 | 10,12,12.7,13,16 | 10-100 |
| 60 | 0.3-6.0 | 9.52,10,12,12.7,13,16 | 10-100 |
| 63 | 0.3-6.0 | 9.52,10,12,12.7,13,16 | 10-100 |
| 70 | 0.3-6.0 | 13,16,22,25.4 | 32-120 |
| 75 | 0.3-6.0 | 13,16,22,25.4 | 32-120 |
| 80 | 0.3-6.0 | 22,25.4,27,31.75,32 | 32-120 |
| 85 | 0.4-10.0 | 22,25.4,27,31.75,32 | 32-120 |
| 90 | 0.4-10.0 | 22,25.4,27,31.75,32 | 40-200 |
| 100 | 0.4-10.0 | 22,25.4,27,31.75,32 | 40-200 |
| 110 | 0.4-10.0 | 22,25.4,27,31.75,32 | 40-200 |
| 120 | 0.4-10.0 | 22,25.4,27,31.75,32,40 | 40-200 |
| 150 | 0.4-10.0 | 22,25.4,27,31.75,32,40 | 40-200 |

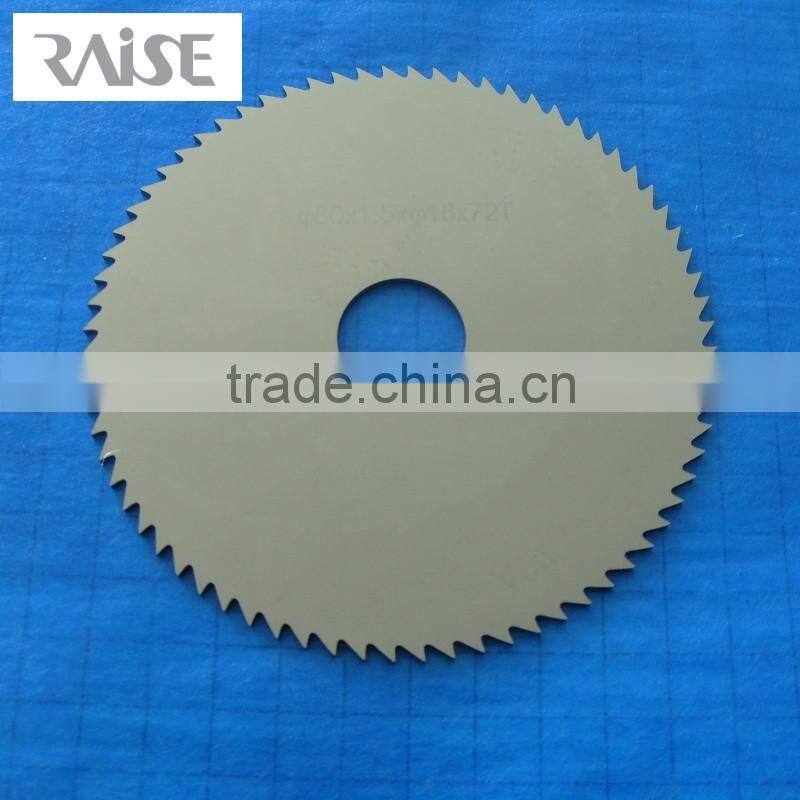

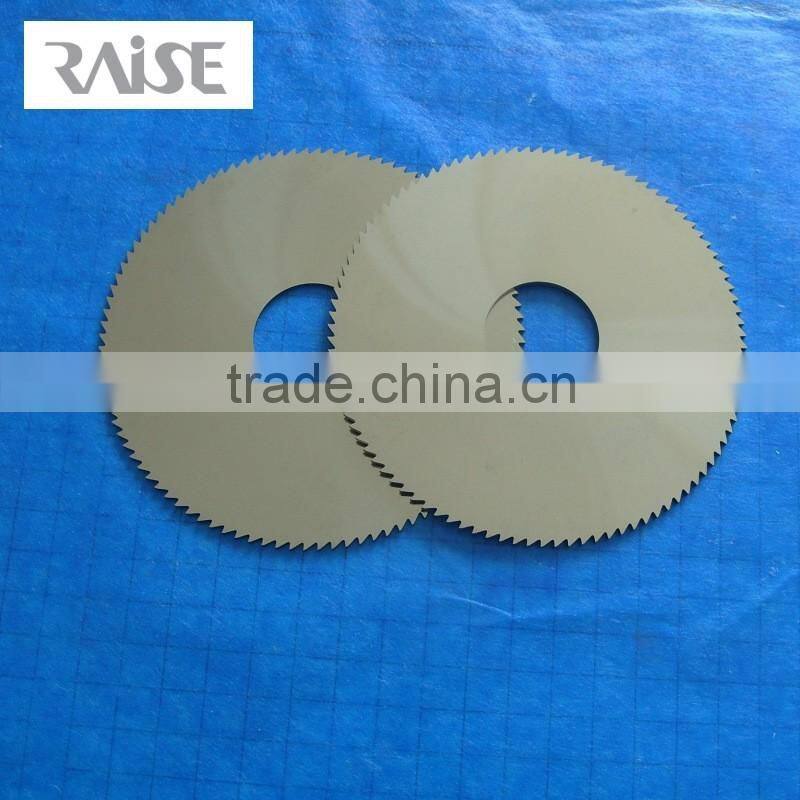

product show :
Can be produced according to customer requirements and processing !
Material parameters:
| Density | 14.6-15g/cm³ |
| hardness | HRA90-92.5 |
| Bending strength | 2300N/mm² |
Application industry |
steel,cast iron,brass,aluminwm and so on |
Cutting speed:
The cut material |
Cutting speed (m/min) |
| plain steel | 70-160 |
| chilled steel | 50-80 |
| cast iron | 110-130 |
| stainless steel | 80-150 |
| copper | 80-250 |
| brass | 200-350 |
| aluminum alloy | 250-400 |
| titanium alloy | 20-60 |
our application industry:
Whether you are used to cut stainless steel or copper or iron and other metals, our products are able to meet your needs .
1.Product features:
This product is in strict accordance with international standards ISO2296, People's Republic of China National Standard GB / T 14301-93 production. Mainly used for ordinary steel, hardened steel, copper, aluminum and other metal materials and stainless steel, titanium, printed off and milling machining milling circuit boards and other difficult to machine materials. Compared with the high-speed hacksaw piece cutter, can achieve high-speed milling, processing efficiency. Milling precise size and finish, high product quality. Carbide hardness high red hardness, long wear life, so the overall carbide cutter blade is advanced tool currently in full play the advantages of its premise, considering its low production costs but so in recent years, using it to replace the high-speed sheet cutter hacksaw users is growing very fast.
In addition the company also manufactures solid carbide single angle cutters, double angle cutters asymmetric, symmetric double angle cutters, convex milling cutters, concave milling cutters, knives, and other kinds of special discoid Park cutter, inlaid hard three wrong tooth carbide blade cutter, the whole tooth grinding HSS sheet cutter, circular knives.
2.Milling material parameters :
Material grades for the international standard grades K10-K30, or other ultra-fine grain structure Carbide. Density: 14.6-15g/cm³ ,hardness HRA: HRA90-92.5 , bending strength: 2300N/mm² , special materials can be imported carbide.
3. Physical characteristics :
Solid carbide saw blade cutter state regulations: diameter D less than 63MM, surface generally no boss, diameter greater than 63MM boss can be produced, the outer diameter D of less than 63, when the thickness is less than 5MM, the hole can be no keyway; diameter greater than 70MM, thickness greater than 5MM time, the hole should be made out of the keyway.
4.Diections for use:
Solid carbide saw blade cutter has many advantages, but because of high-speed steel carbide itself worse than the toughness, so when the inappropriate choice of the cutting process or machine accuracy is poor chipping easily. How to give full play to its advantages exceed it? There is a problem of how to properly use here.
The thinner solid carbide blade cutter, the use of more sensitive to vibrations and tensile stress, if a larger radial runout or axial runout easily cause damage, so the milling machine should be run in the best condition, namely precision machine tools high, Arbor rigid, smooth transmission, a constant amount of feed per tooth, cool sufficiently. Specific requirements are:
1, precision cutter mounted on the arbor should generally be met: radial runout ≤0.02mm, axial runout ≤0.01mm
Two, they do not affect Milling depth, as far as possible with a large flange sides of the blade is clamped on the shank. The purpose is to eliminate lateral pressure to avoid vibrations, typically the outer diameter of the flange is not less than a third of the blade
3, you should choose a reasonable milling line speed Vc and the amount of feed per tooth Sz, usually under the same conditions than solid carbide saw blade cutter selectable speed hacksaw cutter faster Vc, but the feed per tooth the amount should be less than the amount of feed speed steel, Sz generally set at between 0.005-0.025mm / tooth, the specific values should be based on the user's speed milling is the milling material properties, the cutter diameter, thickness, number of teeth factors, such as milling depth selection decision.
| Milling depth (mm) | 3 | 5 | 8 | 10 | 12 | 15 | 20 | 30 |
| Mill diameter (mm) | 40 | 50 | 63 | 70 | 75 | 80 | 100 | 125 |
2, when the diameter D is selected, flat teeth in solid carbide cutter blade and teeth Size table (click to open) is found within the corresponding aperture d. Select the number of teeth Z and be milled material properties, is related to the thickness of the machined surface finish and cutter when milling thinner should choose more teeth have a normal life.
3, the thickness of the thinnest outer diameter size is related to the overall level of tooth carbide blade cutter Size and Teeth table (click to open) in the thickness range for the initial size is generally when the thickness of the outer diameter of the thinnest dimension, such as : diameter 70mm, thickness range 0.4-10mm, that indicate when the general thinnest addition diameter 0.4mm.
4, special specifications and dimensions proposed by the user, after manufacturing confirm delivery.
5, solid carbide cutter flat tooth saw blade, please specify the time of inquiry in accordance with international conventions Size (mm): thickness of the inner diameter × × × aperture teeth, and indicate the type and hardness are cutting materials.
1.Why do you think your products in good quality ?
Reply::We are one of the largest and the most professional manufacturers of solid carbide slitting cutters from China, Please take a look at my catalogue.
we have best factory and the best technicians.
We employ several experienced inspectors to strictly monitor the whole production process: raw material—production—finished products—packing. There are appointed staff responsible for each procedure.
2.What are the main application fields of your products?
Reply:: our main products are Very suitable for cutting various metals.such as steel .stainless stain,copper,iron.etc.
3.what kind of payment terment we can use?
Reply: Payment terms we can accept as follows: L/C,T/T,Western Union.For small amount,usually we accept 100% T/T, and buyer bear bank charges.If pay for big order, 30%-50% in advance before produce.
4.May i get some samples to test?
Reply:of couse,some of products we can send you free samples to show you the quality,but the freight need you pay.
5. What kind of service do you provide?
Before sale:
Provide product information, market research forecasting, product customization, product processing, consultation and other services for your convenience.
After sale:
1. Technical training on according to customer requirements;
2. We promise replacement under warranty;
3. We promise to supply the maintenance spare parts;
4. Regular call back or visit customers;
5. On time response to mail and phone calls of your complaints or consultation.
our Shipping method :
We will arrange the production immediately after your orders, and according to your request to send designated courier.
