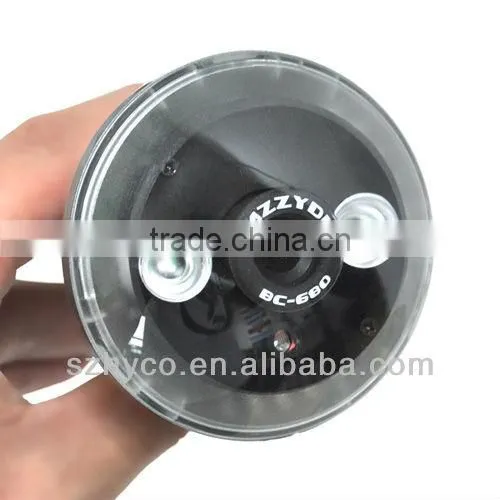

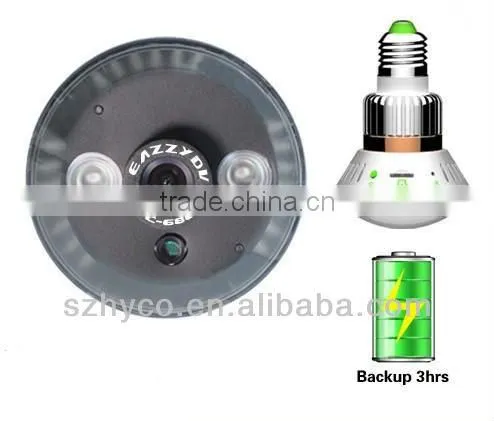

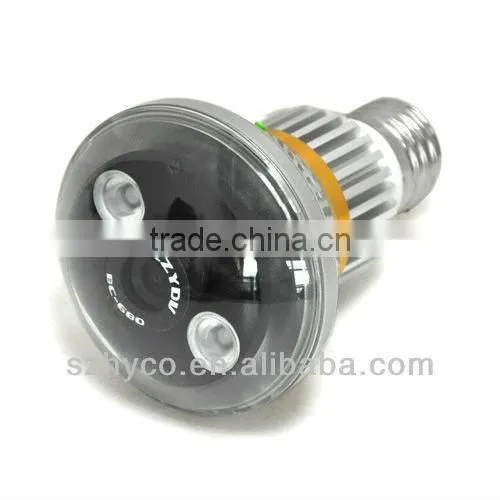

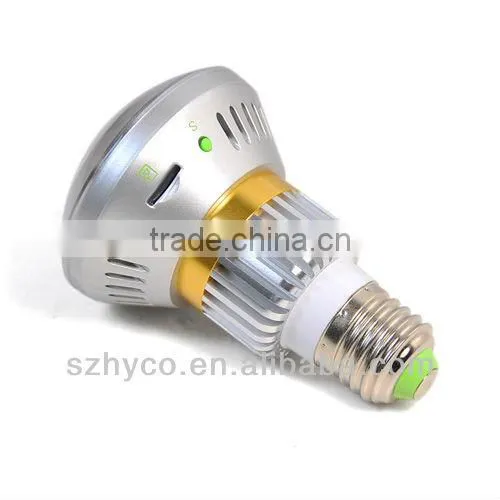

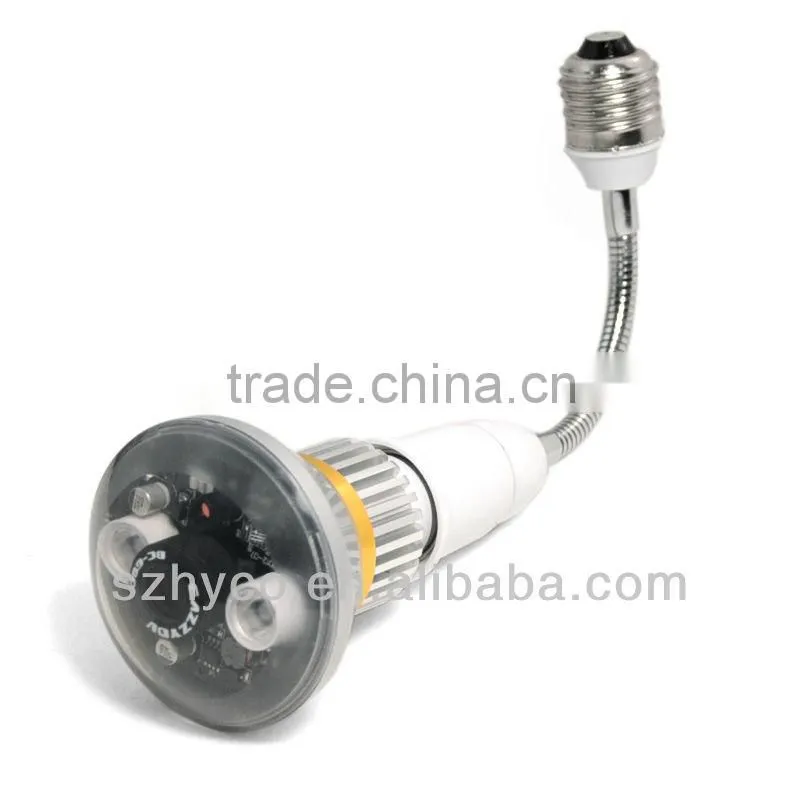

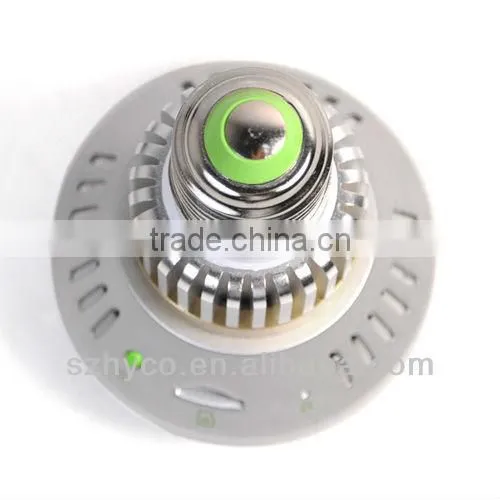

Emergency Backup Bulb Video Camera

Name: Emergency Backup Bulb Video Camera
Brand: HYCO
SKU: 105657041

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HYCO

Model Number:

BC-686

Shenzhen HYCO Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HYCO

Model Number BC-686

Type Digital Camera

Style Hidden Camera

Sensor CMOS

Technology Infrared

Special Features Other, Motion Detection

Specifications

1. Lasting 3hrs recording when no power
2. 2pcs of IR LED Array
3. SD-Card Long time recording
4. Motion detection video

Emergency Backup Bulb CCTV Security DVR Camera

Advantages:

1. Lasting 3hrs recording when no power

When there is no power supply, it can still recording last 3 hours because of built-in larger rechargeable battery

2. Worldwide usage
Accept AC 110V-250V for worldwide usage, providing different bulb adapters for different countries.

3. Good cover, like a real lamp
Looks like a real bulb, no light generated. Thefts would not discover it

4. Local Storage, Small video file size
Support Micro-SD card 2GB-32GB, using 3gp video format, 4GB Card stores 24hrs video files (CIF format)

5. Powerful functions
Built-in a powerful security management system, 7 major functions are changeable to meet different applications

6. Easy change setting
All setting changes and updates are done on Micro-SD card, Quick, Simple and Easy

Main functions:

Function Name	Description
Recording Mode : Real time / Motion Detection only	Real time Recording : Video files will be recorded continuously in 30 min per file Motion Detection only : Records moving objects only.
Resolution : VGA/CIF	Two video resolutions for selection, VGA 640x480 / CIF 352x288
Video File Storage Mode : Circular / Non-Circular	Circular storage means if Micro-SD card is full, it will overwrite earlier files and keep storing. Non-circular storage means when Micro-SD card is full then stop recording
Recording Indication Light On/Off	Recording indication light On, blue indication light will be flashing when recording. Recording indication light Off means no light when recording.
Time Stamp on Video	Stamping the date time on video or not
Recording Audio	Recording video with sound or not
Date time	Use computer system time or customize a time

Specifications:

Item Name	Bulb CCTV Security DVR Camera
Model No.	BC-686 Emergency Backup Bulb CCTV Security DVR Camera, using 2pcs of IR LED Array
System	ARM9 32-bit Microprocessor core
Image Sensor	1/4” CMOS sensor
Len Resolution	300,000 pixel
Len	3.6mm(default)/2.8mm/6mm (optional)
Viewing Angle	2.8mm – around 110° 3.6mm – around 90° 6mm - around 60°
Video Format	3GP
Video Resolution	640x480(VGA) / 352x288(CIF)
Audio Format	ADPCM format
Microphone	Built-in
Memory Card Device	Micro-SD Card, 2GB-32GB
Video File Size	A 4GB card can store 24hrs video files (CIF format)
IR LED	2pcs 3rd generation LED array (850nm wavelength), see red dot light at night
Night vision Distance	15 – 20 Meters (6mm Len) 10 – 15 Meters (3.6mm Len) 5 – 10 Meters (2.8mm Len)
Motion Detection Distance	5 – 8 Meters
Min. illumination	0 Lux (IR on), 0.5 Lux (IR Off)
Camera Adapter	E27
Input Voltage	AC 110V – 250V
Power Consumption	<5W
Working Temperature	-20°C ~ 70°C
Dimension	110mm Height x 72mm Diameter
Weight	120g
